What Is a Progressive Grease Lubrication System?
BAOTN progressive grease lubrication systems are designed to provide reliable automatic grease delivery solutions for CNC machines, industrial equipment, and heavy-duty machinery.
A typical setup includes:
Grease reservoir
Electric grease pump
Main lubrication line
Progressive distributor
Secondary lubrication lines
Tubing, fittings, and connectors
Control and monitoring components
The basic flow is straightforward:
Grease reservoir → pump → progressive distributor → secondary lines → lubrication points
The pump provides the pressure needed to move grease through the system. The progressive distributor then directs grease through its outlets in a defined sequence, allowing multiple lubrication points to be supplied from a single centralized system.
This configuration works particularly well for machinery with many lubrication points or components that are difficult to reach during routine maintenance.
For a closer look at how grease moves through a centralized lubrication system, see our guide to the working principle of a centralized grease pump.
What Are the Benefits of Progressive Lubrication?
The main advantage of progressive lubrication is that grease delivery can be controlled and repeated according to the requirements of the machine.
Consistent grease delivery
Manual lubrication depends heavily on maintenance intervals and operator execution. An automatic system can deliver grease at predetermined intervals, helping maintain a more consistent lubricant supply at critical friction points.
Multiple points supplied from one pump
A single pump can feed a progressive distributor serving multiple lubrication points. This reduces the need for operators to access and lubricate each point individually.
For large machines, this can also make routine maintenance more practical, particularly when lubrication points are located inside guards, around moving assemblies, or in other hard-to-reach areas.
Less manual maintenance
With a centralized grease reservoir, maintenance personnel can replenish lubricant from a convenient location rather than servicing every lubrication point separately.
The result is a simpler lubrication routine and less dependence on manual greasing.
Easy integration with machine controls
Progressive lubrication systems can be integrated with timers, PLCs, machine controls, pressure switches, and monitoring devices. This allows lubrication cycles to be coordinated with machine operation and, where required, provides a way to monitor system performance.
How to Design a Progressive Grease Lubrication System
A good lubrication system starts with the machine and its operating conditions, not with a particular pump model.
Identify the lubrication points
Start by mapping all components that require grease. These may include bearings, guideways, pins, bushings, slides, and other friction points.
For each point, consider:
Required grease quantity
Lubrication frequency
Operating temperature
Distance from the pump
Accessibility
Expected operating conditions
The number and location of lubrication points will influence the selection of both the pump and progressive distributor.
Determine the required system pressure
The required pressure depends on the entire lubrication circuit.
Pipe length and diameter, grease consistency, ambient temperature, fittings, distributor resistance, and the resistance at the lubrication points can all affect grease flow.
For this reason, selecting a pump solely by its maximum pressure is not enough. The pump should be matched to the actual requirements of the complete system.
Advantages of BAOTN's GET high-pressure lubrication pump：
High-pressure grease delivery
Compact structure
Multiple reservoir options
Suitable for CNC machine tools
Compatible with progressive distributors
Easy integration with PLC control systems
View the BAOTN GET high-pressure lubrication pump for more information on its specifications and available configurations.
Choose grease that suits the system
Grease selection also has a direct impact on system performance.
NLGI grade, temperature range, base oil characteristics, and the distance grease needs to travel through the piping can all affect flow behavior. A grease that works well in a manual application may not necessarily be the best choice for a centralized lubrication circuit.
The grease, pump, distributor, tubing, and lubrication points should therefore be considered as one system during the design stage.
Why the Progressive Distributor Matters
The progressive distributor controls how grease is distributed to the different lubrication points. As grease enters the distributor, its internal elements operate progressively, directing lubricant through the connected outlets in sequence.
The distributor must be selected according to the number of lubrication points, required grease volume, system layout, and operating conditions.
A poorly matched distributor can affect the performance of the entire system, even when the pump itself is correctly selected.
At BAOTN, we supply progressive lubrication components including grease pumps, progressive distributors, high-pressure distributors, tubing, fittings, and other accessories. This allows us to configure the lubrication system around the machine's actual requirements rather than treating the pump as a standalone product.
If you are comparing suppliers or planning a new system, our guide on how to choose a progressive grease pump manufacturer provides additional points to consider.
Typical Applications for Progressive Grease Lubrication
Progressive lubrication is widely used on industrial equipment where several lubrication points need regular grease supply.
CNC machine tools
CNC equipment may have multiple guideways, bearings, and other moving components that require controlled lubrication. A centralized system can automate grease delivery and integrate lubrication cycles with machine operation.

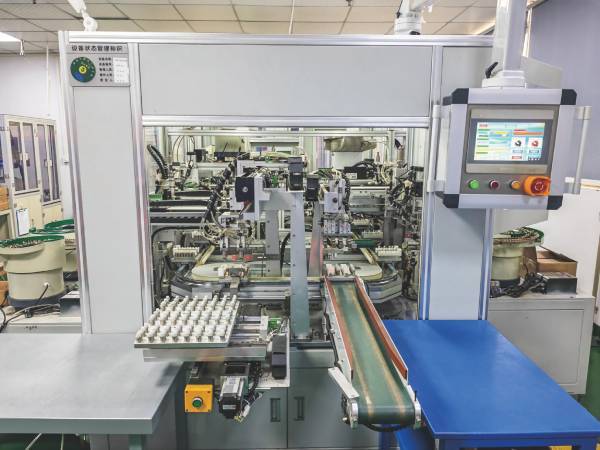

Automated production equipment
Production lines often operate for long periods with limited opportunities for manual maintenance. Centralized grease lubrication can reduce routine manual intervention while maintaining scheduled lubrication.
Construction and engineering machinery
Large machines commonly have grease points distributed across different assemblies. Bringing these points into a centralized system can make routine lubrication easier and safer for maintenance personnel.
Heavy industrial equipment
Metallurgical equipment, textile machinery, wind power equipment, and other heavy-duty machinery can also use progressive lubrication where multiple friction points need regular grease delivery under demanding operating conditions.
Selecting the Right Progressive Grease Lubrication Solution
A progressive lubrication system should be evaluated as a complete circuit rather than as a collection of individual components.
The key factors include:
Lubrication points → grease requirements → pump capacity → system pressure → distributor configuration → piping → control and monitoring
Getting these elements right can help prevent common problems such as insufficient grease delivery, excessive pressure, uneven lubrication, blocked lines, or unsuitable lubricant selection.
Need Technical Information for Your Project?
If you are planning a progressive grease lubrication system, having the right technical information before selecting equipment can make the design process much easier.
Pump specifications, distributor configurations, installation requirements, operating parameters, and product manuals can help you determine whether a particular solution fits your application.
Visit the BAOTN Download Center to access available product documentation and technical manuals.
Need a customized progressive grease lubrication solution?
Contact BAOTN engineers for pump selection, distributor configuration and system design.
