Pneumatic Grease Lubrication Machine GEK

Pneumatic Grease Lubrication Machine GEK

Warranty period: 1 year
Supply capacity: 10,000/piece per month
Minimum order quantity: 1/piece
The BAOTN GEK is a pneumatic grease lubrication machine designed for efficient and convenient grease filling. Powered by compressed air, it is suitable for industrial maintenance, machinery servicing, and applications requiring fast and reliable grease lubrication.
Product Description

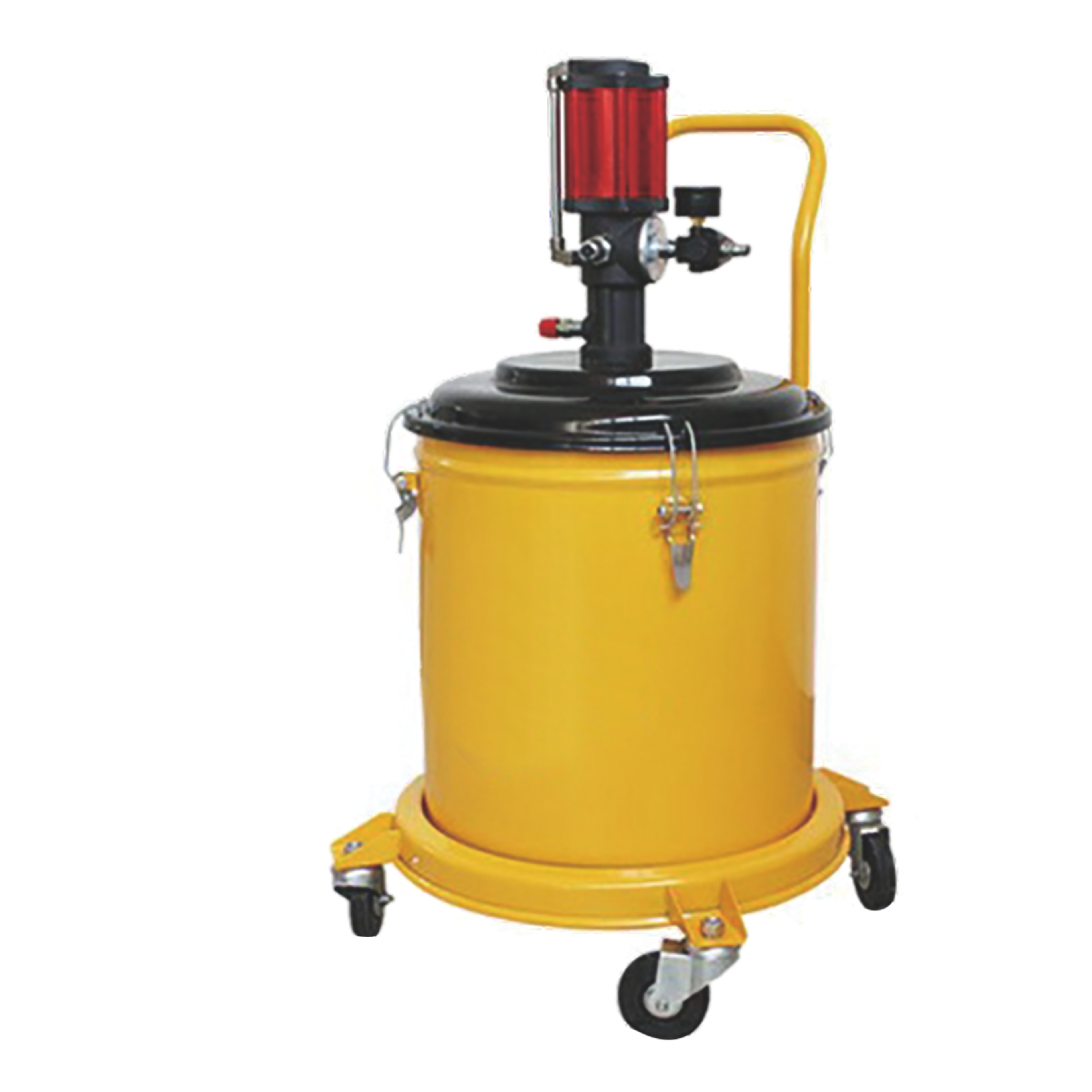

GEK Series Pneumatic Grease Machine

Product Positioning: High-efficiency, high-pressure, high-flow-rate grease delivery, industrial-grade pneumatic grease filling workstation

The GEK pneumatic grease machine uses compressed air (air compressor) as its power source, relying on an ultra-high pressure ratio of 50:1 to convert air pressure into powerful grease pressure,

achieving continuous, rapid, and high-flow-rate grease filling.

This series comes with a trolley and a 10L large-capacity oil reservoir, solving the pain point of laborious manual operation, making it the preferred equipment for large-scale production lines or high-frequency lubrication operations.


Specifications, models and technical parameters

Performance and features

Core Technology and Parameter Explanation

Powerful Power Output: An inlet air pressure of only 0.6~0.8 MPa is required to generate an oil pressure of up to 30~40 MPa, with a pressure ratio of 50:1, easily handling high-viscosity greases.

High-Efficiency, High-Flow-Rate Operation:

Standard Pump Head Type (GEK-85): Single-point grease filling, oil flow rate 0.85 L/min, suitable for targeted precision lubrication.

Quick-connect tool type (GEK-85TK/TY): Oil output surges to 30 L/min, significantly improving efficiency for large-scale centralized grease filling or grease gun application.

Portable design:

GEK-85: The pump body can be directly placed inside a standard grease container, taking up little space and being lightweight and durable (only 10kg).

GEK-85TK / 85TY: Equipped with a four-wheeled trolley and a 10L dedicated oil reservoir (net weight 18kg), easy to push and pull, allowing free movement within the workshop.

A single-handle connector and straight-through filler nozzle ensure flexible operation.

Standard interface: The air inlet pipe is a 1/4" Quarter standard interface, compatible with most industrial air compressor circuits.
