Oil and Gas Lubrication System Overview

The oil and gas lubrication system is mainly composed of an electric lubrication pump; an oil and gas mixer; a pneumatic processing component and a control component. The oil and gas lubrication system is a typical gas-liquid two-phase fluid. Suitable for high speed spindles or other oil and gas lubrication.

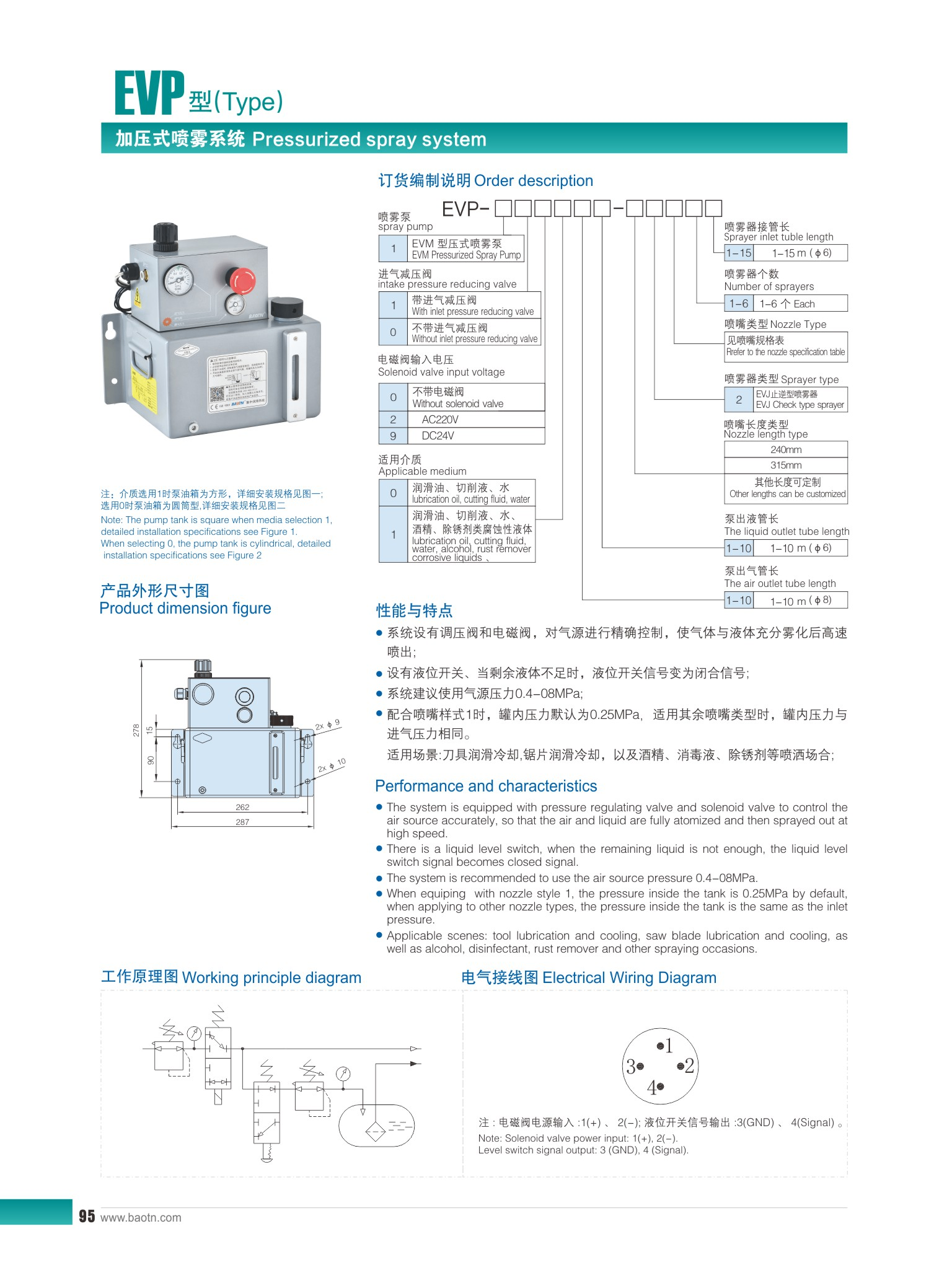

Performance and characteristics

1,The system is equipped with pressure regulating valve and solenoid valve to control the  air source accurately, so that the air and liquid are fully atomized and then sprayed out at  high speed.

2,There is a liquid level switch, when the remaining liquid is not enough, the liquid level  switch signal becomes closed signal.

3,The system is recommended to use the air source pressure 0.4-08MPa.

4,When equiping with nozzle style 1, the pressure inside the tank is 0.25MPa by default,  when applying to other nozzle types, the pressure inside the tank is the same as the inlet  pressure.

5,Applicable scenes: tool lubrication and cooling, saw blade lubrication and cooling, as  well as alcohol, disinfectant, rust remover and other spraying occasions.
