Oil and Gas Lubrication System Overview

The oil and gas lubrication system is mainly composed of an electric lubrication pump; an oil and gas mixer; a pneumatic processing component and a control component. The oil and gas lubrication system is a typical gas-liquid two-phase fluid. Suitable for high speed spindles or other oil and gas lubrication.

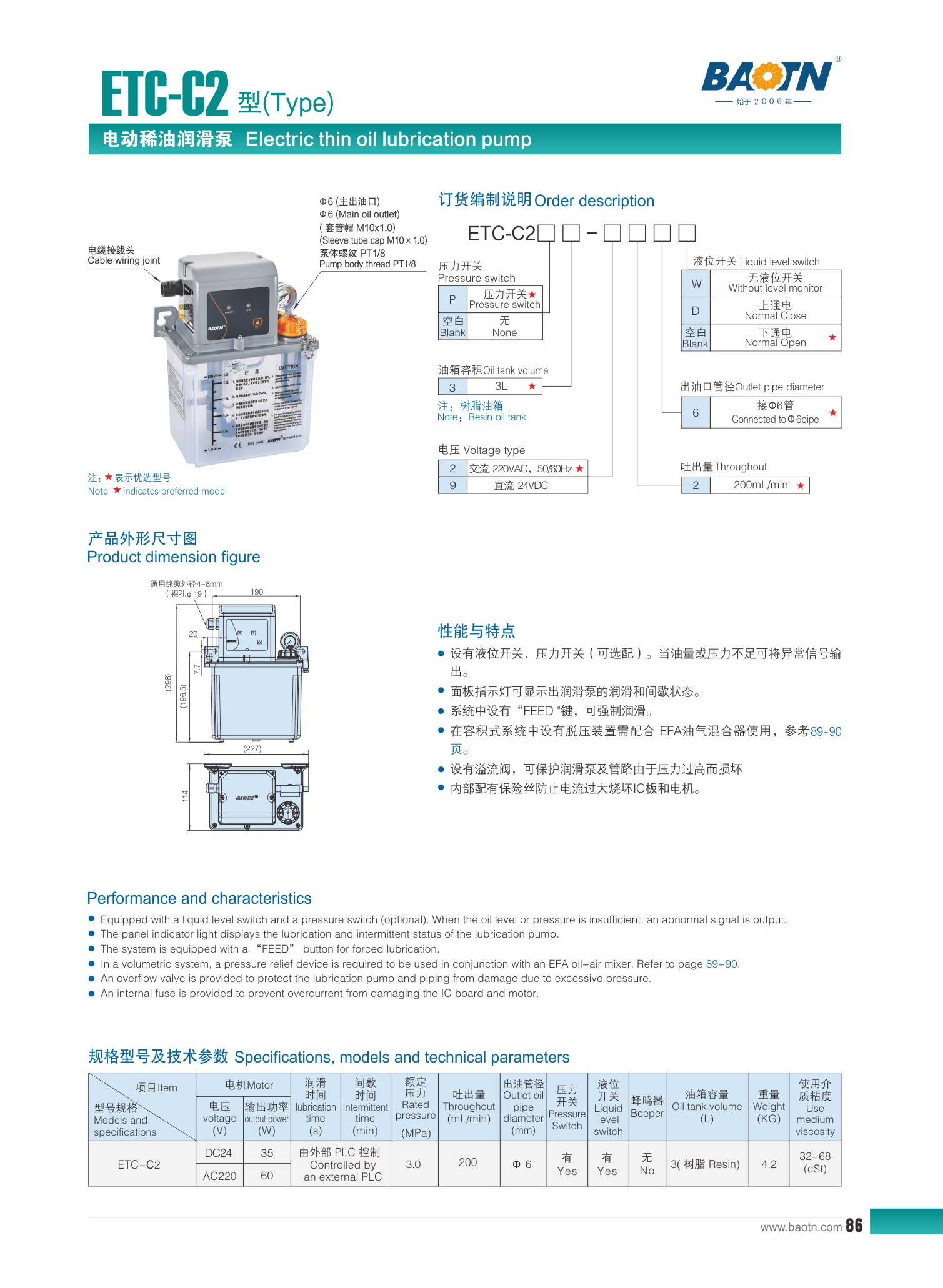

Performance and characteristics

1,Equipped with a liquid level switch and a pressure switch (optional).

2,When the oil level or pressure is insufficient, an abnormal signal is output.

3,The panel indicator light displays the lubrication and intermittent status of the lubrication pump.

4,The system is equipped with a “FEED” button for forced lubrication.

5,In a volumetric system, a pressure relief device is required to be used in conjunction with an EFA oil-air mixer.

6,An overflow valve is provided to protect the lubrication pump and piping from damage due to excessive pressure.

7,An internal fuse is provided to prevent overcurrent from damaging the IC board and motor.
