Attentions for system installation

1,Oil pipes are cut in orderly to ensure the pipelines are connected  well without leakage; otherwise, the pipeline may leak oil slowly,  cannot stock pressure, and the distributor cannot store oil or eject  oil as usual.

2,Keep interior of the pipeline clean in installation, and the  lubrication pump and main oil pipe cannot be installed with any  check valve devices.

3, Please use any high-quality and clean new lubricant, and the  best general viscosity is NLGI 000-0.

4,Oil product with unique  feature or alkali or acid features  Applicable temperature 0-50℃.

5,Please notice changes of environmental temperature, adjust oil  viscosity, 000 oil product cannot be used under the temperature  of 15℃ , and 00~0 oil product shall be used above the  temperature of 30℃.

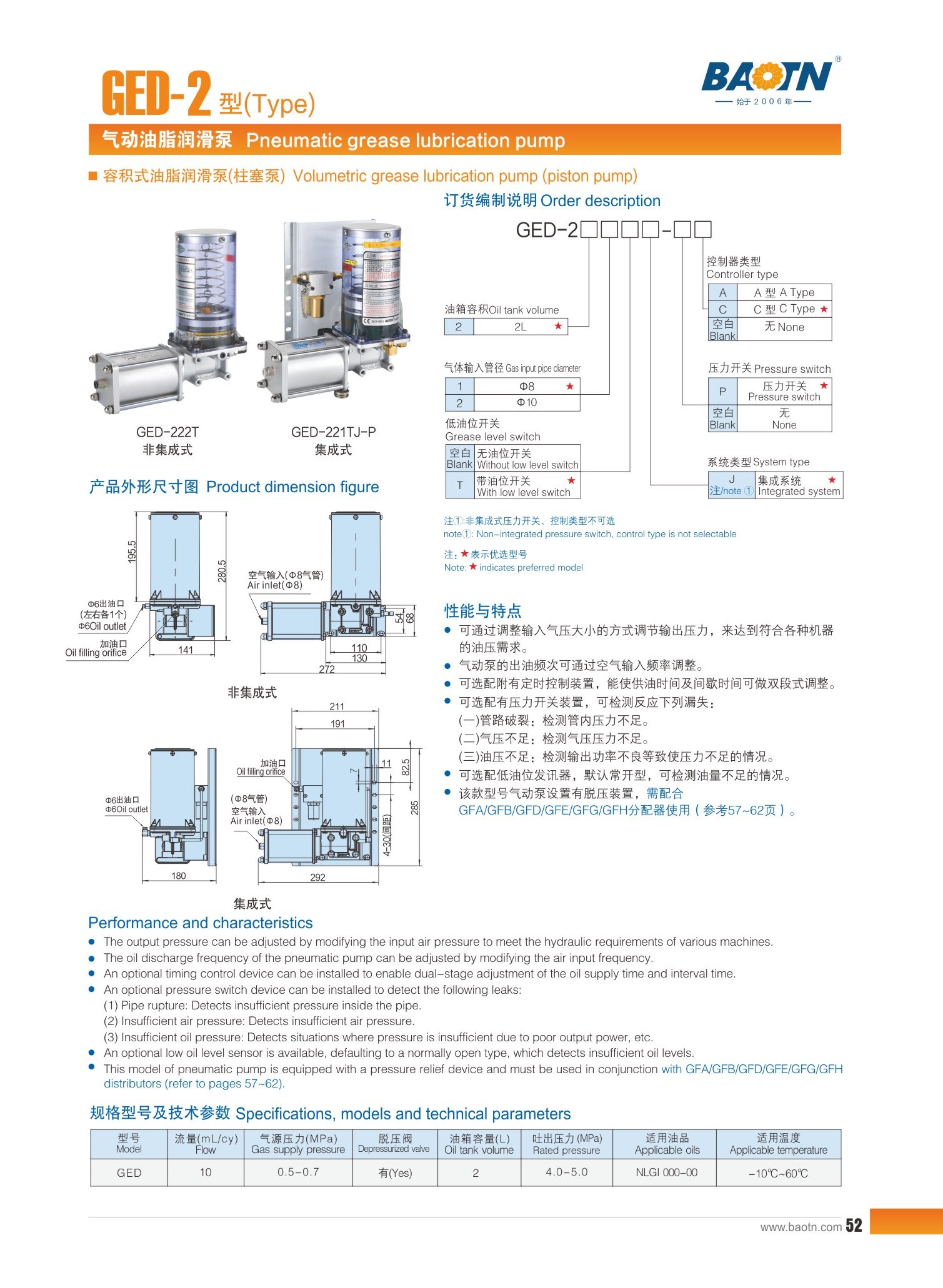

Performance and characteristics

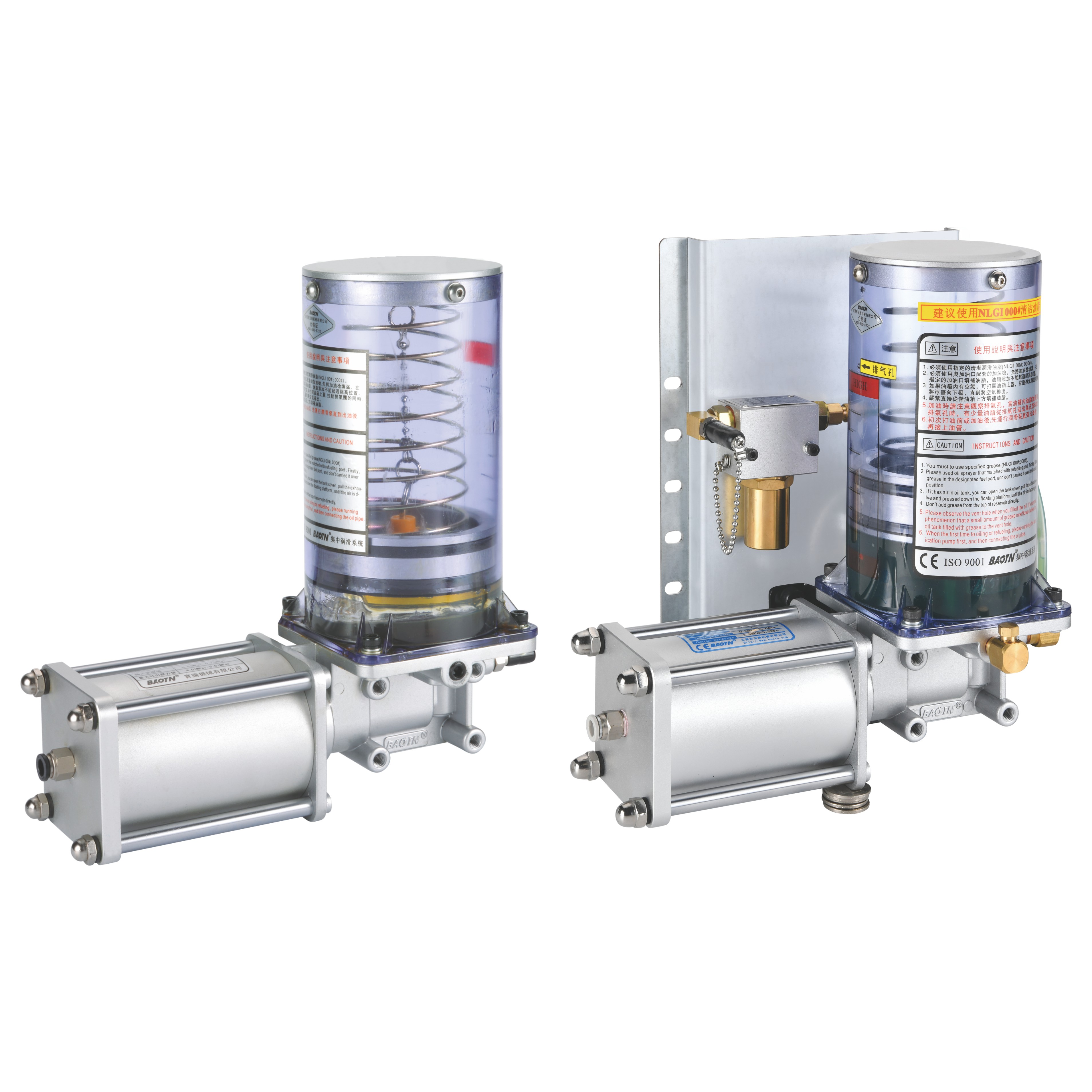

1,The output pressure can be adjusted by modifying the input air pressure to meet the hydraulic requirements of various machines.The oil discharge frequency of the pneumatic pump can be adjusted by modifying the air input frequency.

2,An optional timing control device can be installed to enable dual-stage adjustment of the oil supply time and interval time.

3,An optional pressure switch device can be installed to detect the following leaks:

(1) Pipe rupture: Detects insufficient pressure inside the pipe.

(2) Insufficient air pressure: Detects insufficient air pressure.

(3) Insufficient oil pressure: Detects situations where pressure is insufficient due to poor output power, etc.

4,An optional low oillevel sensor is available, defaulting to a normally open type, which detects insuficient oil levels.

5,This model of pneumatic pump is equipped with a pressure relief device and must be used in conjunction with GFAGFB/GFD/GFE/GFG/GFHdistributors .
