Attentions for system installation

1,Oil pipe orifices shall be cut in order to ensure that connection is  integral without oil leakage; otherwise, the pipeline may leak oil and  pressure cannot be accumulated, and the distributor cannot store oil or  convey oil. ,

2,When installed, interior of the pipeline shall be clean, and installing check valves in the lubrication pump and main pipeline are prohibited.

3,Please use good quality clean oil. Unique, alkali or acid oil cannot be  used.

4,Applicable temperature -10~50℃.

5,Please notice changes of environmental temperature. Properly adjust oil product variety.

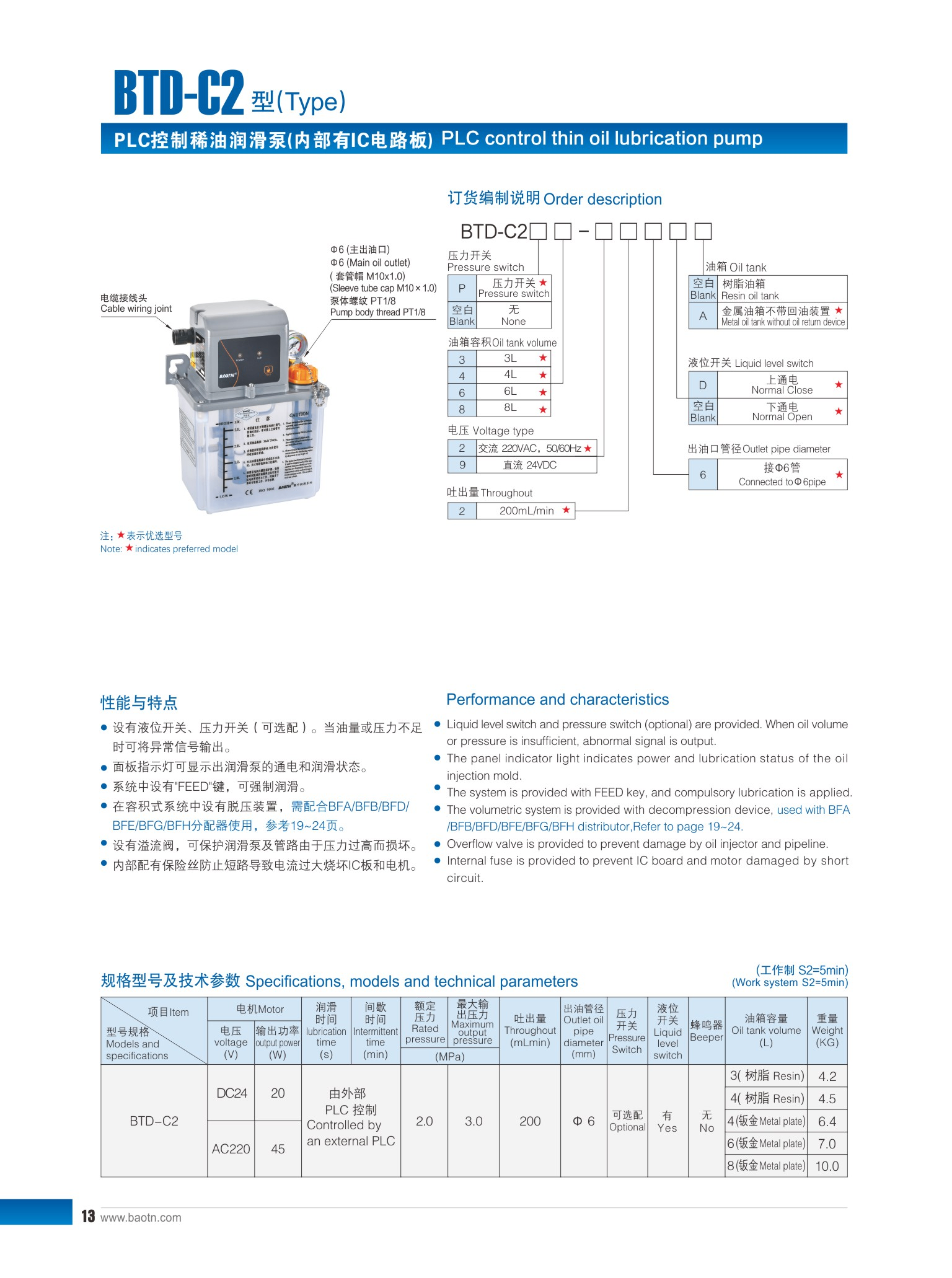

Performance and characteristics

1,Liquid level switch and pressure switch (optional) are provided. When oil volume or pressure is insufficient, abnormal signal is output.

2,The panel indicator light indicates power and lubrication status of the oil  injection mold.

3The system is provided with FEED key, and compulsory lubrication is applied.

4,The volumetric system is provided with decompression device, used with  /BFB/BFD/BFE/BFG/BFH distributor.

5,Overflow valve is provided to prevent damage by oil injector and pipeline.

6,Internal fuse is provided to prevent IC board and motor damaged by short circuit.
