Attentions for installation of the system

1,The connecting oil pipe shall be cut in order to ensure that oil will  not leak.

2,Otherwise, the pipeline accumulate pressure and the distributor cannot deliver oil as usual. When installed, interior of the pipeline shall be clean.  3,Please use certified lubricant for cleaning, and the optimum applicable viscosity is ISO VG32~250. Applicable temperature -10~50℃.

4,Please notice changes of environment, and adjust oil viscosity.

5,Oil delivery of the proportional joint cannot be installed reversely.

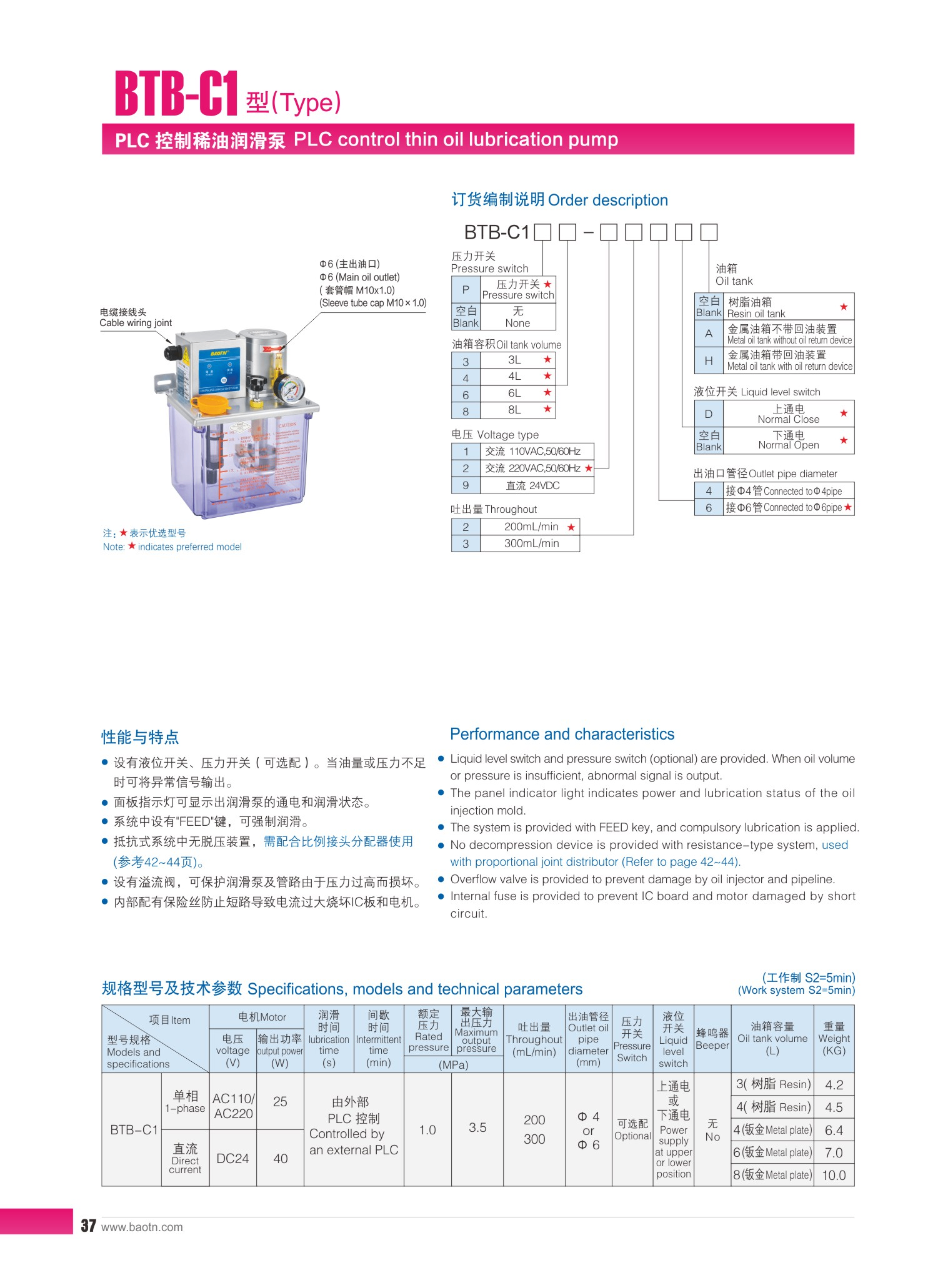

Performance and characteristics

1,Liquid level switch and pressure switch (optional) are provided. When oil volume or pressure is insufficient, abnormal signal is output.

2,The panel indicator light indicates power and lubrication status of the oil injection mold.

3,The system is provided with FEED key, and compulsory lubrication is applied.

4,Motor continuously operated

5,No decompression device is provided with resistance-type system, used with proportional joint distributor .

6,Overflow valve is provided to prevent damage by oil injector and pipeline.

7,Internal fuse is provided to prevent IC board and motor damaged by shortcircuit.
