Oil and Gas Lubrication System Overview

The oil and gas lubrication system is mainly composed of an electric lubrication pump; an oil and gas mixer; a pneumatic processing component and a control component. The oil and gas lubrication system is a typical gas-liquid two-phase fluid. Suitable for high speed spindles or other oil and gas lubrication.

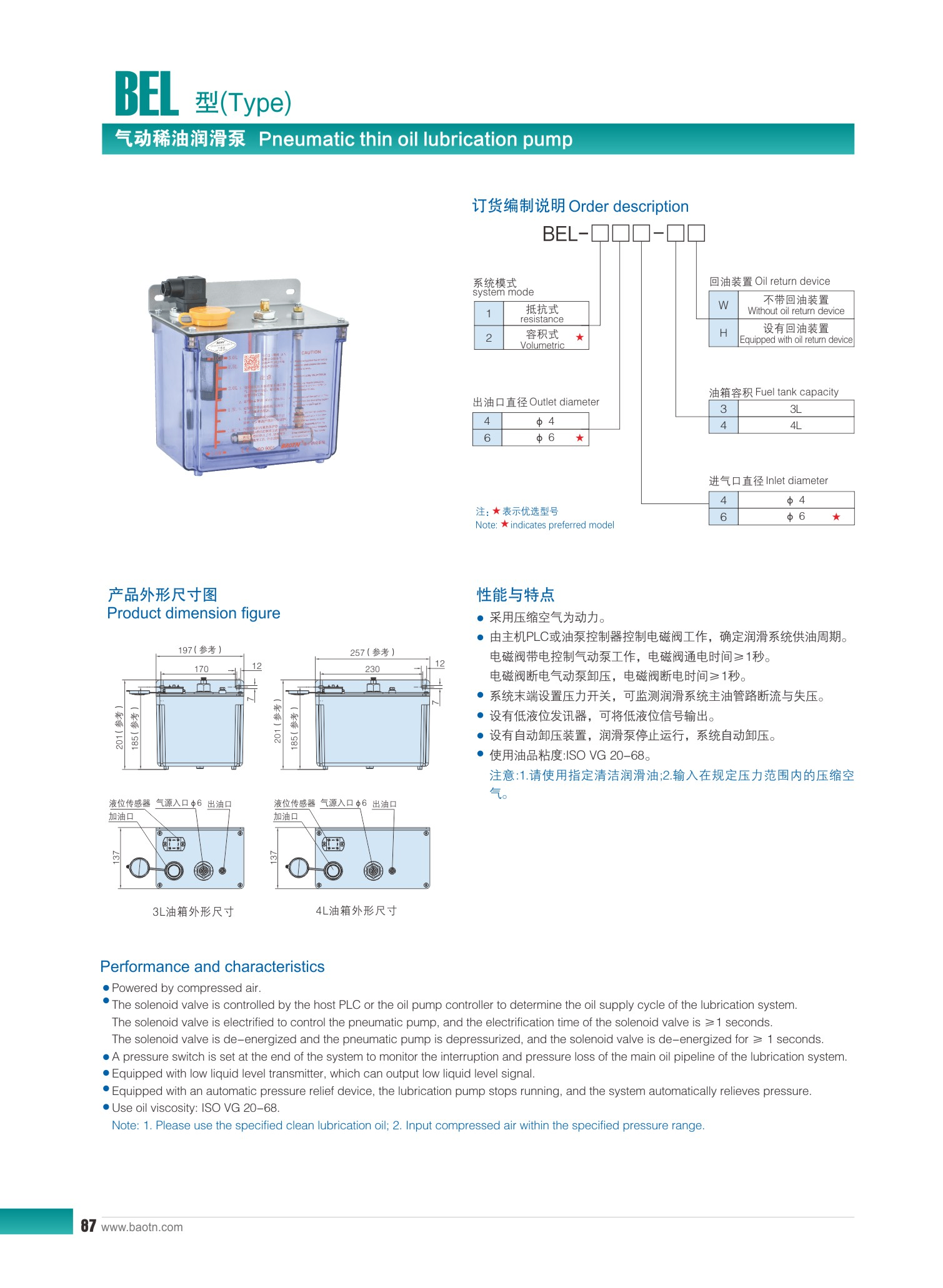

Performance and characteristics

1,Powered by compressed air.

2,The solenoid valve is controlled by the host PLC or the oil pump controller to determine the oil supply cycle of the lubrication system.

3,The solenoid valve is electrified to control the pneumatic pump, and the electrification time of the solenoid valve is ≥1 seconds.

4,The solenoid valve is de-energized and the pneumatic pump is depressurized, and the solenoid valve is de-energized for ≥ 1 seconds.

5,A pressure switch is set at the end of the system to monitor the interruption and pressure loss of the main oil pipeline of the lubrication system. 6,Equipped with low liquid level transmitter, which can output low liquid level signal.

7,Equipped with an automatic pressure relief device, the lubrication pump stops running, and the system automatically relieves pressure.

8,Use oil viscosity: ISO VG 20-68.

Note: 1. Please use the specified clean lubrication oil; 2. Input compressed air within the specified pressure range.
