Attentions for system installation

1,Oil pipes are cut in orderly to ensure the pipelines are connected  well without leakage; otherwise, the pipeline may leak oil slowly,  cannot stock pressure, and the distributor cannot store oil or eject  oil as usual.

2,Keep interior of the pipeline clean in installation, and the  lubrication pump and main oil pipe cannot be installed with any  check valve devices.

3, Please use any high-quality and clean new lubricant, and the  best general viscosity is NLGI 000-0.

4,Oil product with unique  feature or alkali or acid features  Applicable temperature 0-50℃.

5,Please notice changes of environmental temperature, adjust oil  viscosity, 000 oil product cannot be used under the temperature  of 15℃ , and 00~0 oil product shall be used above the  temperature of 30℃.

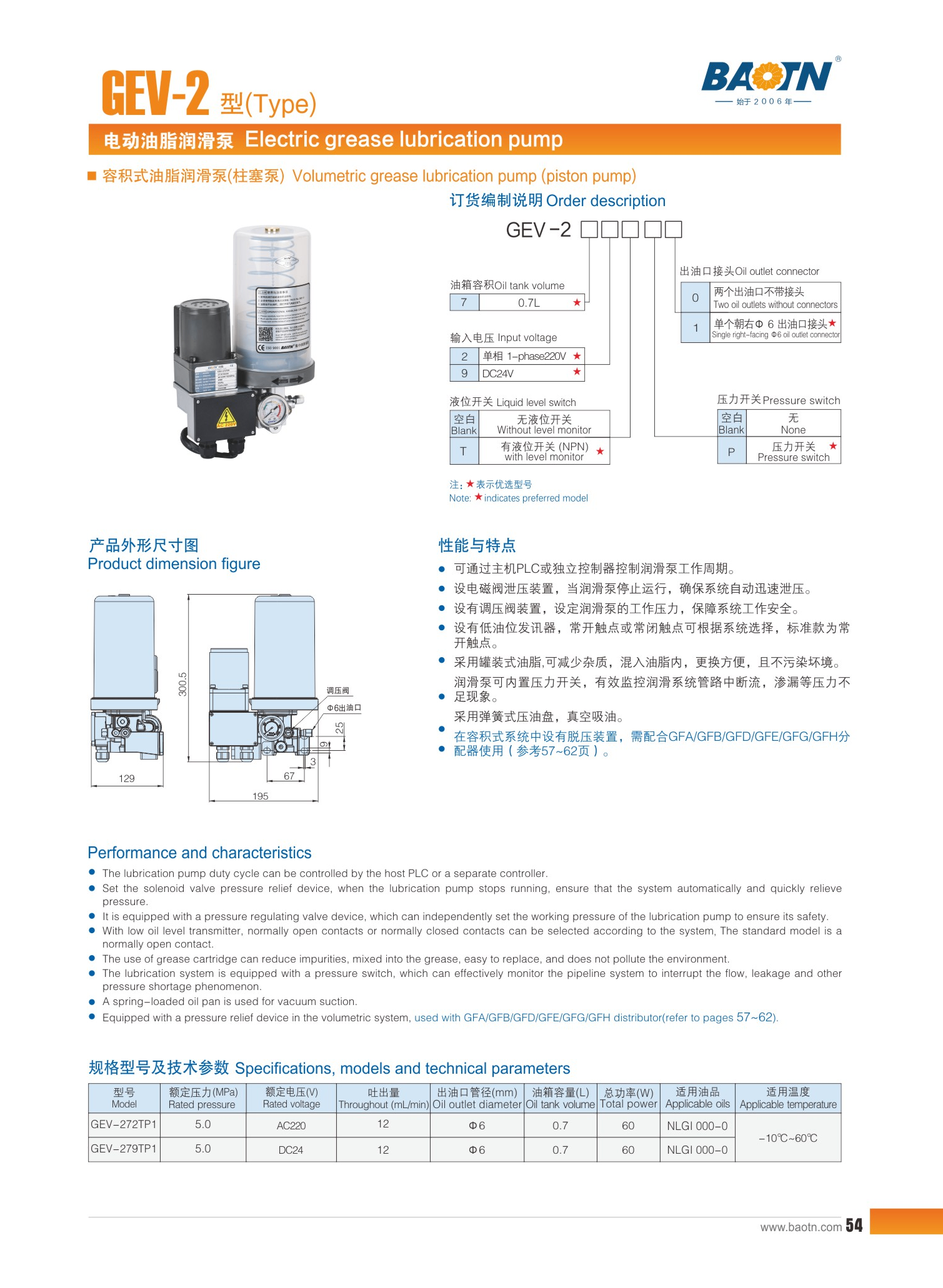

Performance and characteristics

1,The lubrication pump duty cycle can be controlled by the host PLC or a separate controller.

2,Set the sdenoid vake pressure relef device, when the lubricatlon pump stops running, ensure that the systen automatcaly and quicky relieve pressure

3,Itvis equipped with a pressure regulating vave device, which can independenty set the working pressure of the lubrication pump to ensure its satety.

4,With low ollevel transmiter, normally open contacts or namally closed contacts can be seleded accordng to the system, The standard model is anormally open contact.

5,The use of grease cartridge can reduce impurities, mixed into the grease, easy to replace, and does not pollute the envirormen.

6,The lubrication system is equipped with a pressure switch, which can effectively montor the pipeline system to interupt the fow, leakage and otherpressure shortage phenomenon.

7,A spring-loaded oil pan is used for vacuum suction.

8,Equipped with a pressure relief device in the voumetric system.used with GFAGFB/GFD/GFE/GFG/GFH distributor.
