Attentions for installation of the system

1,The connecting oil pipe shall be cut in order to ensure that oil will  not leak.

2,Otherwise, the pipeline accumulate pressure and the distributor cannot deliver oil as usual. When installed, interior of the pipeline shall be clean.  3,Please use certified lubricant for cleaning, and the optimum applicable viscosity is ISO VG32~250. Applicable temperature -10~50℃.

4,Please notice changes of environment, and adjust oil viscosity.

5,Oil delivery of the proportional joint cannot be installed reversely.

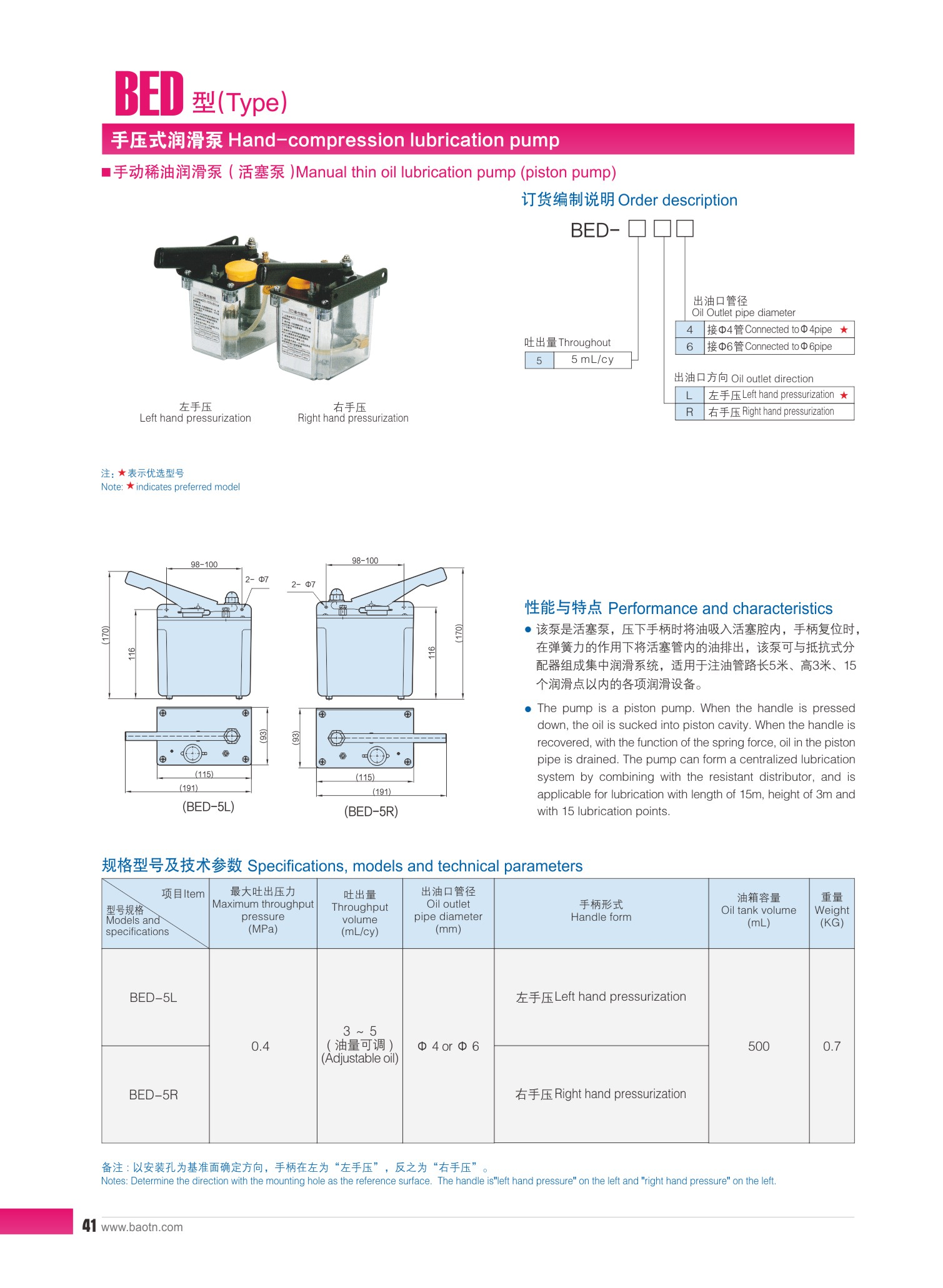

The pump is a piston pump. When the handle is pressed down, the oil is sucked into piston cavity. When the handle is recovered, with the function of the spring force, oil in the piston pipe is drained. The pump can form a centralized lubricating system by combining with the resistant distributor, and is applicable for lubricating with length of 15m, height of 3m and with 15 lubricating points.
