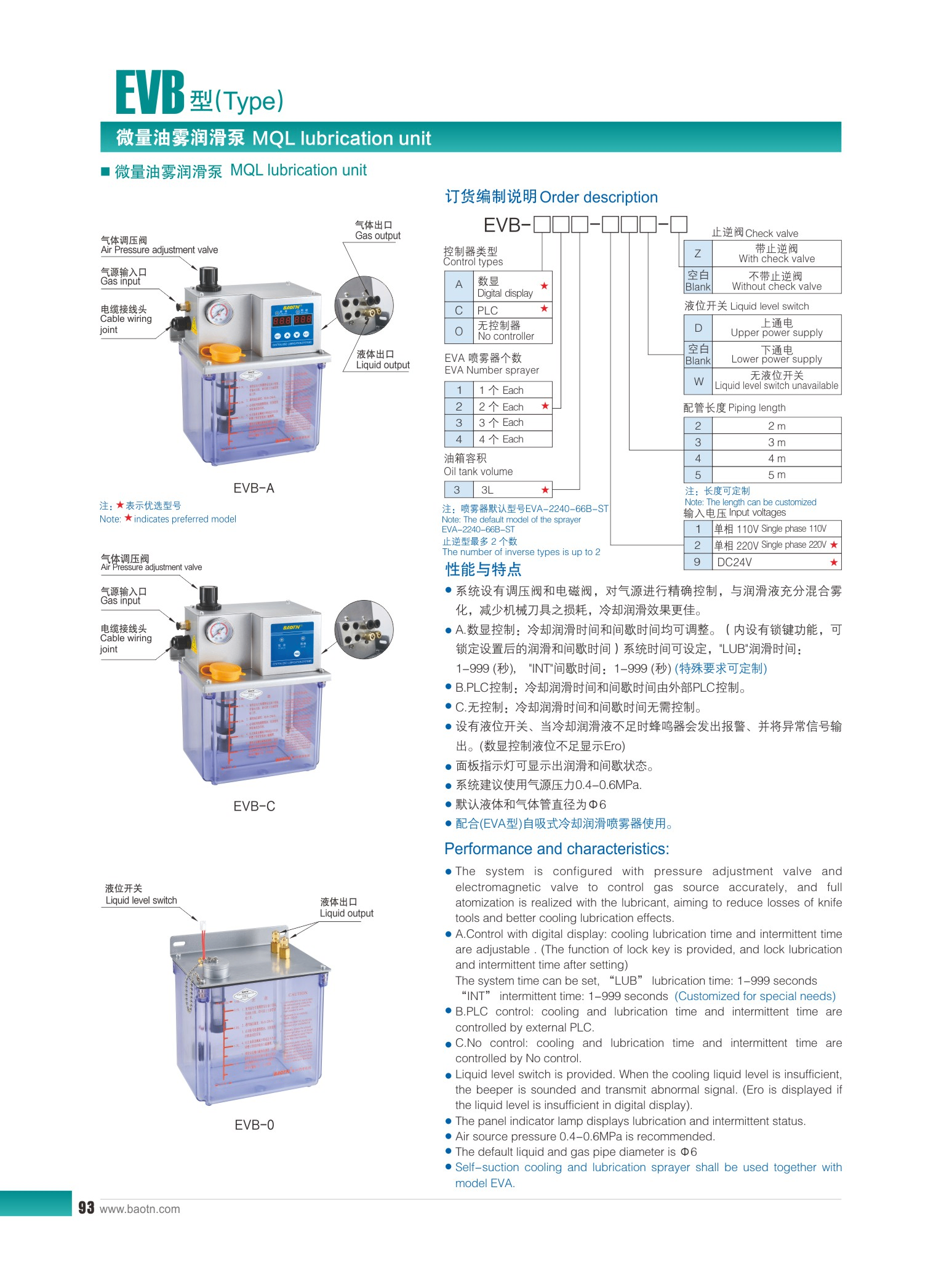

Situations for application:

Lathe, drill, mill, grinder, tapping machine, knife tool grinding machine, CNC  lathe, punch, sawing machine, woodworker machinery and feeding machine  etc.

Performance and characteristics

1,The system is configured with pressure adjustment valve and electromagnetic valve to control gas source accurately, and full atomization is realized with the lubricant, aiming to reduce losses of knife  tools and better cooling lubrication effects.

2,A.Control with digital display: cooling lubrication time and intermittent time  are adjustable . (The function of lock key is provided, and lock lubrication  and intermittent time after setting) The system time can be set, “LUB” lubrication time: 1-999 seconds  “INT” intermittent time: 1-999 seconds (Customized for special needs)

3,B.PLC control: cooling and lubrication time and intermittent time are  controlled by external PLC.

4,C.No control: cooling and lubrication time and intermittent time are  controlled by No control.

5,Liquid level switch is provided. When the cooling liquid level is insufficient,  the beeper is sounded and transmit abnormal signal. (Ero is displayed if  the liquid level is insufficient in digital display).

6,The panel indicator lamp displays lubrication and intermittent status.

7,Air source pressure 0.4-0.6MPa is recommended.

8,The default liquid and gas pipe diameter is Φ6

9,Self-suction cooling and lubrication sprayer shall be used together with  model EVA.
