Attentions for system installation

1,Oil pipes are cut in orderly to ensure the pipelines are connected  well without leakage; otherwise, the pipeline may leak oil slowly,  cannot stock pressure, and the distributor cannot store oil or eject  oil as usual.

2,Keep interior of the pipeline clean in installation, and the  lubrication pump and main oil pipe cannot be installed with any  check valve devices.

3, Please use any high-quality and clean new lubricant, and the  best general viscosity is NLGI 000-0.

4,Oil product with unique  feature or alkali or acid features  Applicable temperature 0-50℃.

5,Please notice changes of environmental temperature, adjust oil  viscosity, 000 oil product cannot be used under the temperature  of 15℃ , and 00~0 oil product shall be used above the  temperature of 30℃.

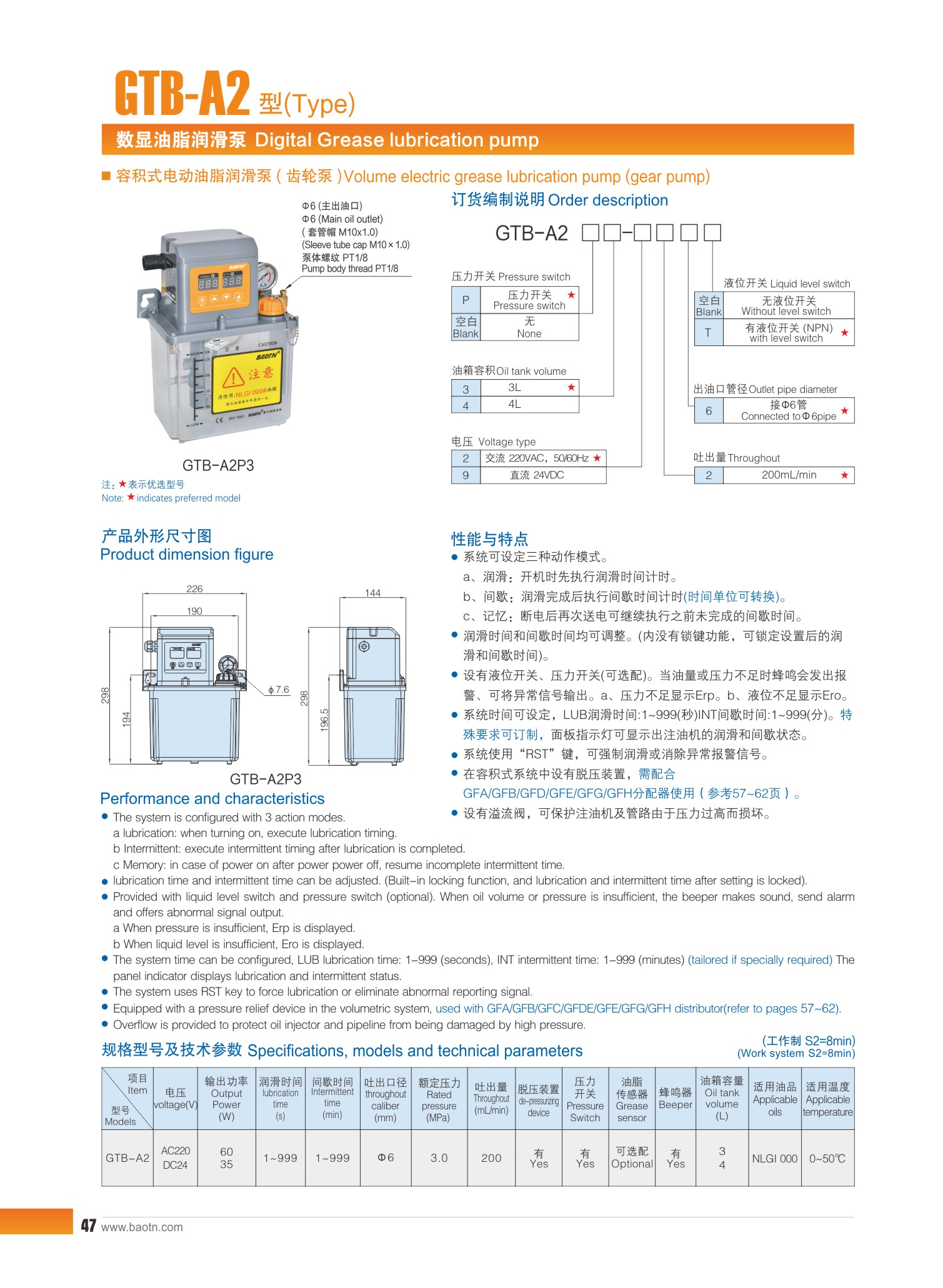

Performance and characteristics

1,The system is configured with 3 action modes.

a lubrication: when turning on, execute lubrication timing.

b Intermittent: execute intermittent timing after lubrication is completed.

c Memory: in case of power on after power power off, resume incomplete intermittent time.Jubrication time and interittent time can be adjusted.

(Built-in locking function, and ubrication and intermitent time after seting is locked).

2,Provided with liquid level switch and pressure switch (optional). When ol volume or pressure is insufcient, the beeper makes sound, send alarmand offers abnormal signal output.

a When pressure is insufficient, Erp is displayed.

b When liquid level is insufficient, Ero is displayed.

3,The system time can be configured. LUB ubrcation time: 1-999 (seconds). INT intermitent time: 1-999 (minutes) (talored if specially required)

4,The panel indicator displays lubrication and intermittent status.

5,The system uses RST key to force lubrication or eliminate abnormal reporting signal.Equipped wth a pressure relief device in the voumeric system, used with GFAGFB/GFC/GFDE/GFE/GFG/GFH distributor)

6,Overflow is provided to protect oil injector and pipeline from being damaged by high pressure.
