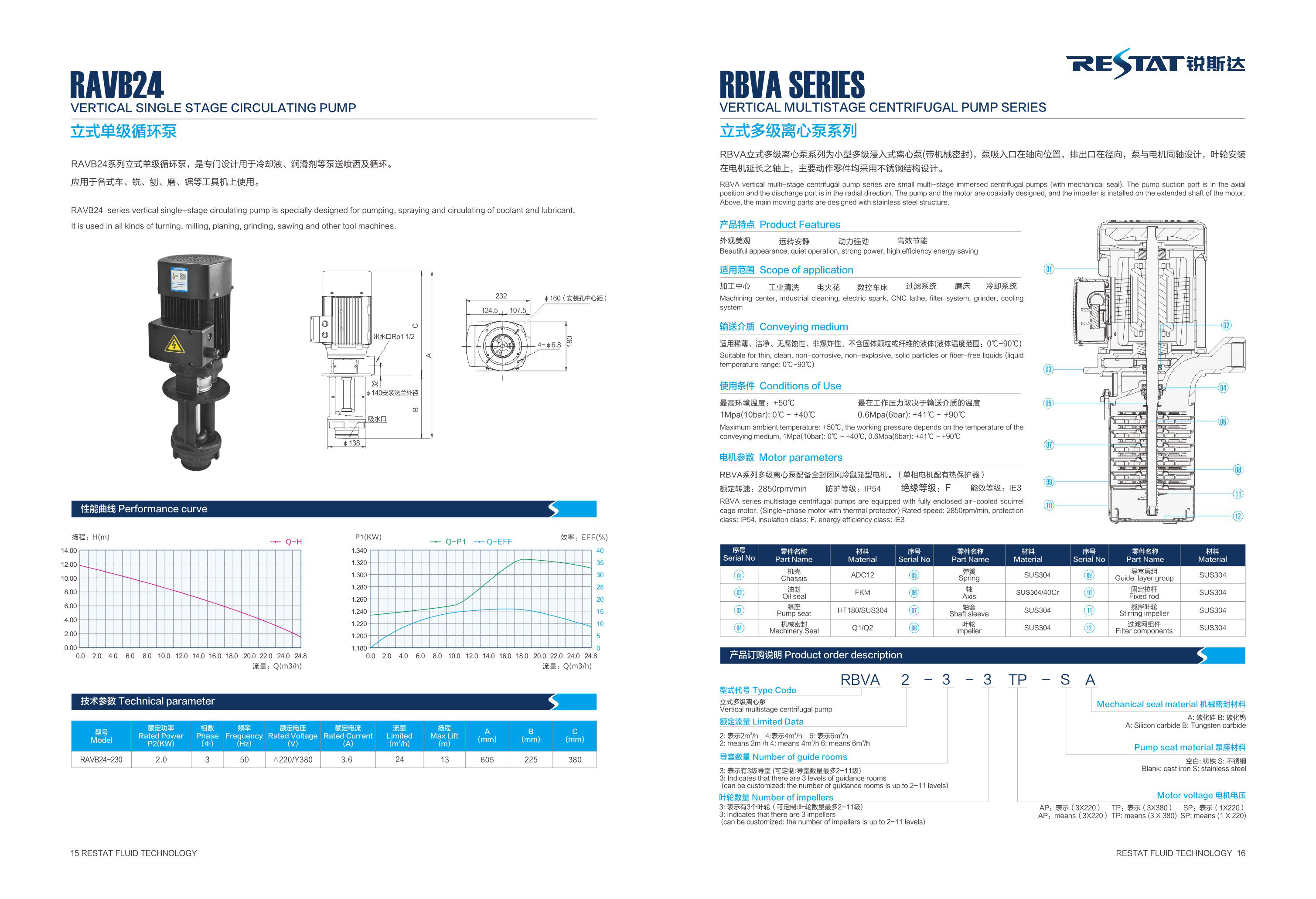

High-Flow Vertical Coolant Circulation Pump RAVB24

High-Flow Vertical Coolant Circulation Pump RAVB24

Warranty period: 1 year
Supply capacity: 10,000/piece per month
Minimum order quantity: 1/piece
RAVB make it possible to connect to vacuum filters through their simple connection on the suction side
Product Description

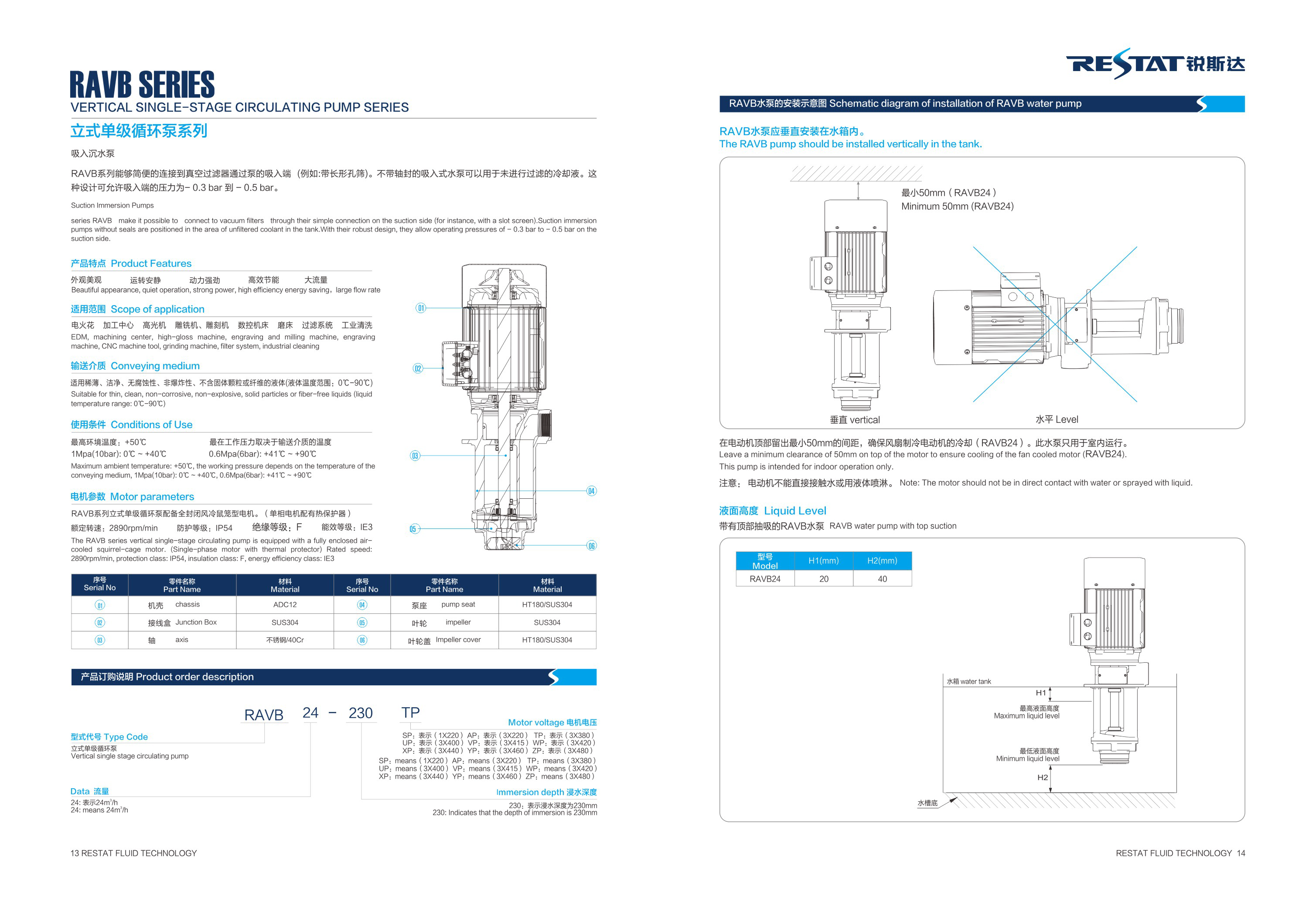

RAVB Series Vertical Circulation Pump for Industrial Equipment

Choosing the right vertical circulation pump requires matching the pump's flow rate, delivery head, suction conditions, and liquid compatibility to the application. For machine tool coolant systems, buyers should also consider the coolant tank arrangement, liquid temperature, operating pressure, and whether the liquid has been filtered.

The RAVB series is a vertical single-stage circulation pump designed for compatible industrial liquid circulation duties. Its top-suction configuration makes it an option to evaluate for machine tools, machining centers, grinding equipment, filtration systems, and industrial cleaning applications.

Before ordering, confirm the operating parameters and installation requirements against the manufacturer's technical documentation. This helps ensure that the selected pump is compatible with the equipment and intended working conditions.

Contact us to request RAVB product specifications, discuss your coolant circulation requirements, and obtain assistance with model selection.



Specifications, models and technical parameters

High-Flow Vertical Coolant Circulation Pump

Performance and features



RAVB meke it possible to connect to vacuum filters through their simple connection on the suction side (for nstance, with a slot screen).Suction immersion Pumps without seals are positioned in the area of unfitered coolant in the tank.With their robust design, they allow operating pressures of - 0.3 bar to - 0.5 bar on the suction side.

Product Features

Beautiful appearance, quiet operation, strong power, high efficiency energy saving.

Scope of application

EDM, machining center, high-gloss machine, engraving and milling machine, engravingmachine, CNC machine tool, grinding machine, filter system, industrial cleaning.

Conveying medium

Suitable for thin, clean, non-corrosive, non-explosive, solid particles or fiber-free liquids (liquidtemperature range: 0°C-90°C)

Conditions of Use

Maximum ambient temperature: +50°C, the working pressure depends on the temperature of theconveying medium, 1Mpa(10bar): 0°C ~ +40°C, 0.6Mpa(6bar): +41°C ~ +90°C

Motor parameters

The RAVB series vertical single-stage circulating pump is equipped with a fully enclosed air-cooled squirrel-cage motor. (Single-phase motor with thermal protector) Rated speed:2890rpm/min, protection class: IP54, insulation class: F, energy efficiency class: IE3
