Attentions for installation and use

1,The oil outlet pipeline orifices shall be cut smooth, make sure the  connection is intact and no nil leakage.

2,In the process of installing, please ensure that interior of the  pipeline is clean.

3,Please use the correct, clean and impurity-free NLGI 000-2 oil  grease.

4,Applicable temperature -40℃-70℃.  Please refill oil from the correct oil refilling orifice.

5,Do not open the  oil block to refill oil above the oil cup.

6,Please notice environmental temperature, adjust viscosity of oil products.

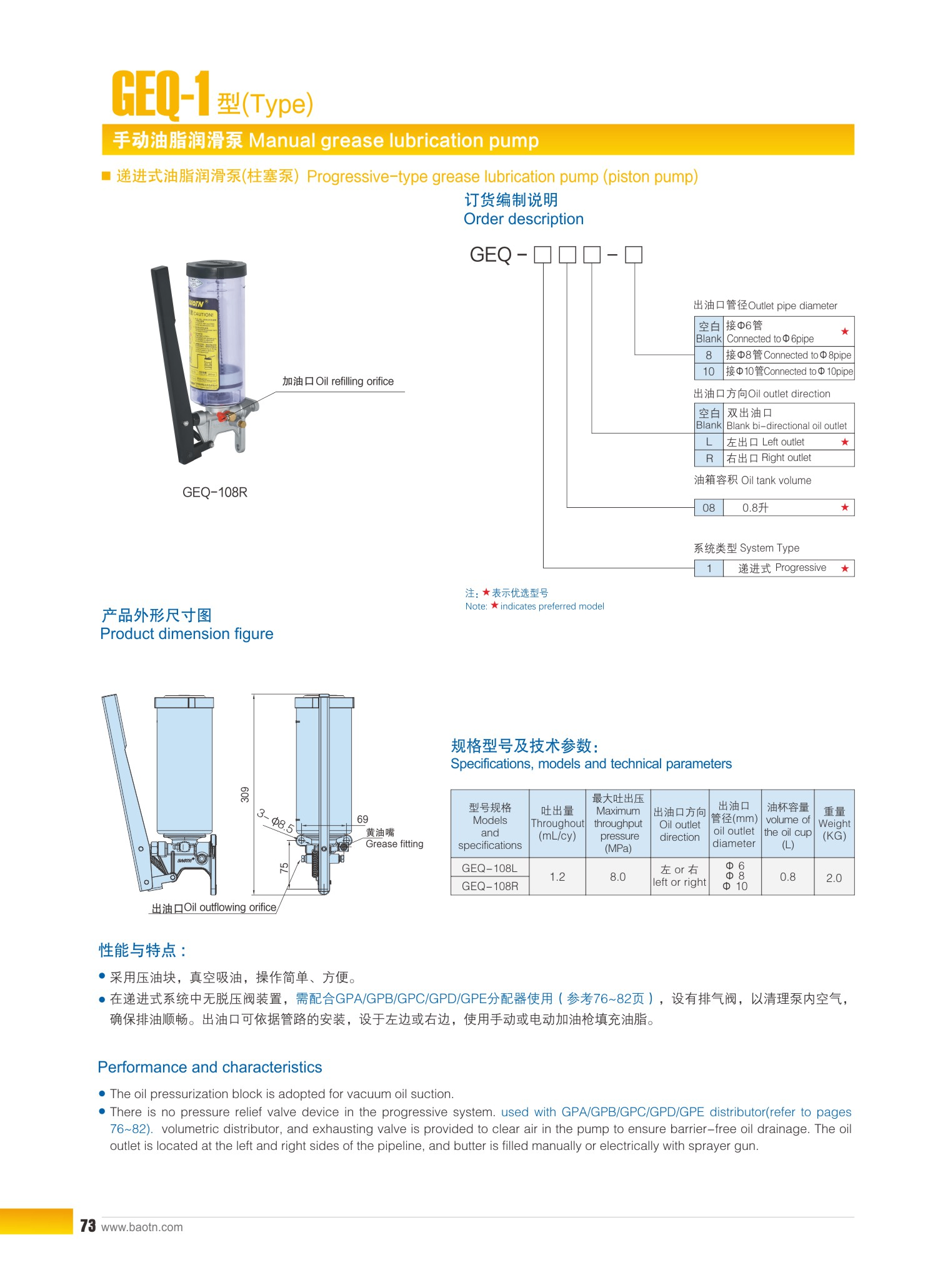

Performance and characteristics

1,The oil pressurization block is adopted for vacuum oil suction.

2,There is no pressure relief valve device in the progressive system. used with GPA/GPB/GPC/GPD/GPE distributor.

3,An air vent valve is provided to purge air from the pump and ensure smooth oil drainage.

4,The oil outlet is located at the left and right sides of the pipeline, and butter is filled manually or electrically with sprayer gun.
