Attentions for installation and use

1,The oil outlet pipeline orifices shall be cut smooth, make sure the  connection is intact and no nil leakage.

2,In the process of installing, please ensure that interior of the  pipeline is clean.

3,Please use the correct, clean and impurity-free NLGI 000-2 oil  grease.

4,Applicable temperature -40℃-70℃.  Please refill oil from the correct oil refilling orifice.

5,Do not open the  oil block to refill oil above the oil cup.

6,Please notice environmental temperature, adjust viscosity of oil products.

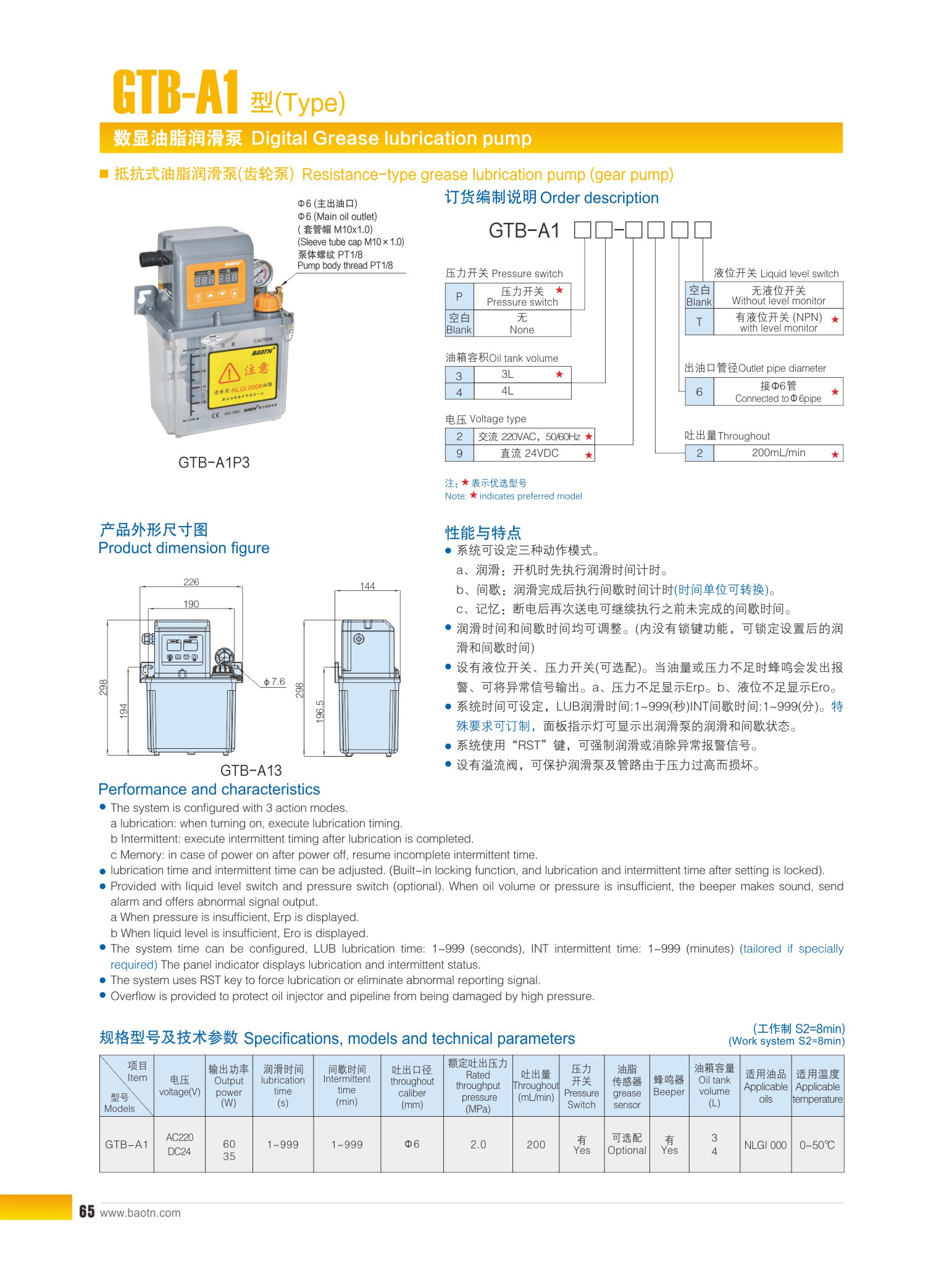

Performance and characteristics

1,The system is configured with 3 action modes.

a lubrication: when turning on, execute lubrication timing.

b Intermittent: execute intermittent timing after lubrication is completed.

c Memory: in case of power on after power off, resume incomplete intermittent time.

lubrication time and intermittent time can be adjusted. (Built-in locking function, and lubrication and intermittent time after setting is locked). 2,Provided with liquid level switch and pressure switch (optional).

3,When oil volume or pressure is insufficient, the beeper makes sound, send  alarm and offers abnormal signal output.

a When pressure is insufficient, Erp is displayed.

b When liquid level is insufficient, Ero is displayed.

3,The system time can be configured, LUB lubrication time: 1-999 (seconds), INT intermittent time: 1-999 (minutes) (tailored if specially  required)

4,The panel indicator displays lubrication and intermittent status.

5,The system uses RST key to force lubrication or eliminate abnormal reporting signal.

6,Overflow is provided to protect oil injector and pipeline from being damaged by high pressure.
