Attentions for installation and use

1,The oil outlet pipeline orifices shall be cut smooth, make sure the  connection is intact and no nil leakage.

2,In the process of installing, please ensure that interior of the  pipeline is clean.

3,Please use the correct, clean and impurity-free NLGI 000-2 oil  grease.

4,Applicable temperature -40℃-70℃.  Please refill oil from the correct oil refilling orifice.

5,Do not open the  oil block to refill oil above the oil cup.

6,Please notice environmental temperature, adjust viscosity of oil products.

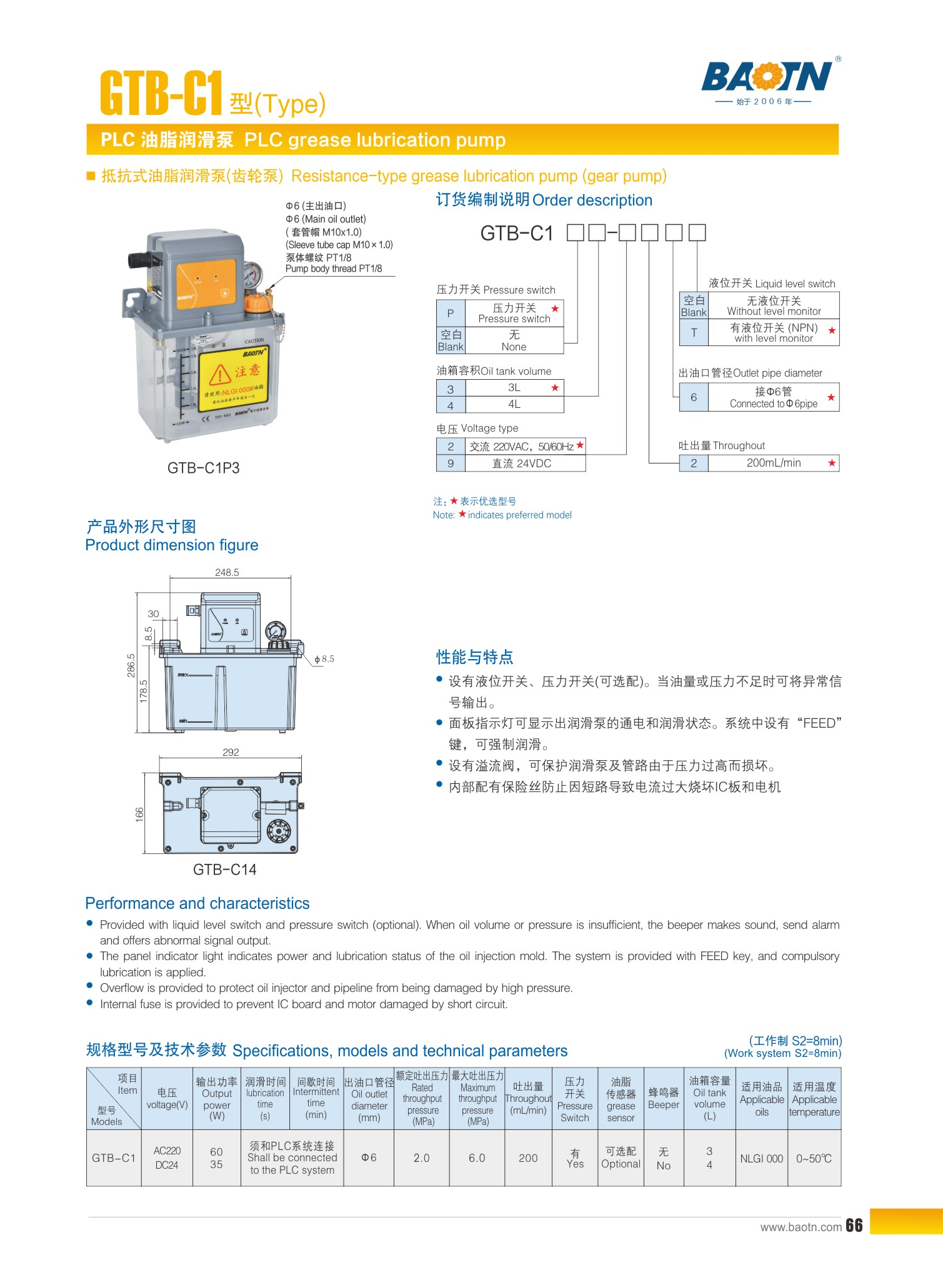

Performance and characteristics

1，Provided with liquid level switch and pressure switch (optional).

2，When oil volume or pressure is insufficient, the beeper makes sound, send alarm  and offers abnormal signal output.

3，The panel indicator light indicates power and lubrication status of the oil injection mold.

4，The system is provided with FEED key, and compulsory  lubrication is applied.

5，Overflow is provided to protect oil injector and pipeline from being damaged by high pressure. Internal fuse is provided to prevent IC board and motor damaged by short circuit.
