GPC High-Pressure Progressive Grease Distributor for Harsh Environments

The BAOTN GPC is an integral progressive grease distributor designed for high-pressure centralized lubrication systems. With a maximum working pressure of 35 MPa, the GPC provides metered and consistent grease delivery to multiple lubrication points. Its robust design offers dust and corrosion resistance, making it suitable for demanding applications such as construction machinery, vehicles, machine tools, wind turbines, and plastic machinery.

Key Features

• High Working Pressure: Supports a maximum working pressure of 35 MPa for demanding lubrication applications.

• Progressive Lubrication: Delivers metered grease sequentially to multiple lubrication points.

• Up to 20 Outlets: Supports centralized lubrication of multiple lubrication points within one system.

• Reliable Lubrication Control: The progressive piston movement provides consistent grease distribution.

• Harsh Environment Protection: Designed with dust and corrosion resistance for demanding operating environments.

• Optional Monitoring: A specific indicator can be installed to monitor piston movement and help detect lubrication blockage.

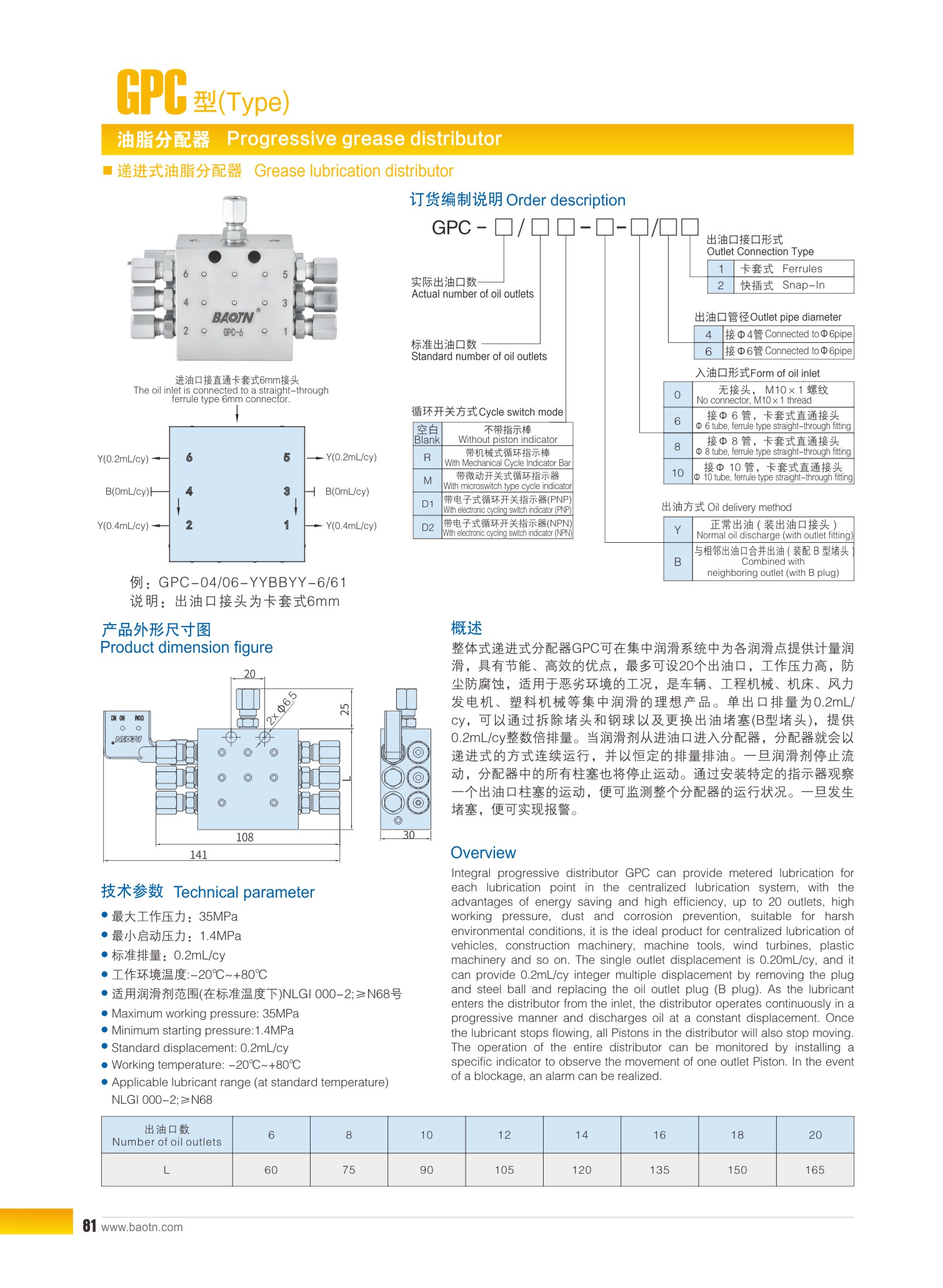

Technical Specifications

How Does the GPC Progressive Grease Distributor Work?

The GPC operates through a progressive piston mechanism. When lubricant enters the distributor through the inlet, the internal pistons move sequentially and continuously, delivering a measured amount of grease to each lubrication outlet.

The distributor provides a constant displacement during operation. When lubricant flow stops, the pistons stop moving accordingly.

A specific indicator can be installed to monitor the movement of an outlet piston. If a blockage occurs in the lubrication system, the piston movement can be monitored to help identify the problem and trigger an alarm.

Applications

The GPC progressive grease distributor is suitable for centralized lubrication systems used in:

• Construction Machinery

• Vehicles

• CNC Machines

• Machine Tools

• Wind Turbines

• Plastic Machinery

• Industrial Equipment

• Other Heavy-Duty Machinery

Its high-pressure capability and resistance to dust and corrosion make the GPC suitable for demanding industrial environments.

Why Choose BAOTN GPC?

The GPC provides a practical solution for applications requiring reliable centralized grease lubrication. Its progressive distribution mechanism allows lubricant to be metered to multiple lubrication points from a centralized lubrication system.

With a maximum working pressure of 35 MPa and an operating temperature range of -20°C to +80°C, the GPC is designed for applications where stable lubrication performance is required under demanding conditions.

BAOTN provides centralized lubrication pumps, progressive distributors, lubrication controllers, and related components to help customers build complete automatic lubrication systems.

Build a Complete Centralized Lubrication System

The GPC can be integrated with other components of a centralized lubrication system, including:

• Automatic Grease Lubrication Pump

• Progressive Grease Distributor

• Lubrication Controller

• Lubrication Pipes and Fittings

• Pressure Monitoring Components

• Lubrication Point Connectors

A properly configured centralized lubrication system can provide consistent lubricant delivery to multiple lubrication points and simplify machine maintenance.

Frequently Asked Questions

What is a progressive grease distributor?

A progressive grease distributor is a component used in centralized lubrication systems to distribute grease sequentially and accurately to multiple lubrication points.

What is the maximum working pressure of the GPC?

The maximum working pressure of the BAOTN GPC is 35 MPa.

How many lubrication points can the GPC support?

The GPC can provide centralized lubrication for up to 20 outlets.

What lubricant can be used with the GPC?

According to the product specifications, the GPC is applicable to NLGI 000–2 grease and N68 lubrication oil under standard temperature conditions.

Can the GPC monitor lubrication blockage?

Yes. A specific indicator can be installed to observe piston movement. If a blockage occurs, the piston movement can be monitored to help detect the problem and trigger an alarm.

Where can the GPC be used?

The GPC is suitable for centralized lubrication applications in construction machinery, vehicles, machine tools, wind turbines, plastic machinery, and other industrial equipment.
