Rationale of the GFD/GFE distributor

1,Lubricant delivered from the lubrication pump makes umbrella valve in the GFD/GFE distributor drive upwards.

2,When the umbrella valve closes central hole of the core bar, the piston overcomes the spring force to rise.

3,Lubricant stored in the oil  cavity is drained out.  When piston moves to the top point of oil cavity, oil draining is completed.

4,When lubrication pump stops oil supplying, the pressure release valve is automatically released to make lubricant in the main oil pipe  to return through the decompression valve.

5,At this moment, the system pressure is reduced, and piston in the distributor starts  resetting with the function of spring.

6,When the umbrella valve resets and closes oil outlet of the distributor, the piston delivers lubricant  in the lower cavity through the core bar, and oil supply for the next time is ready.

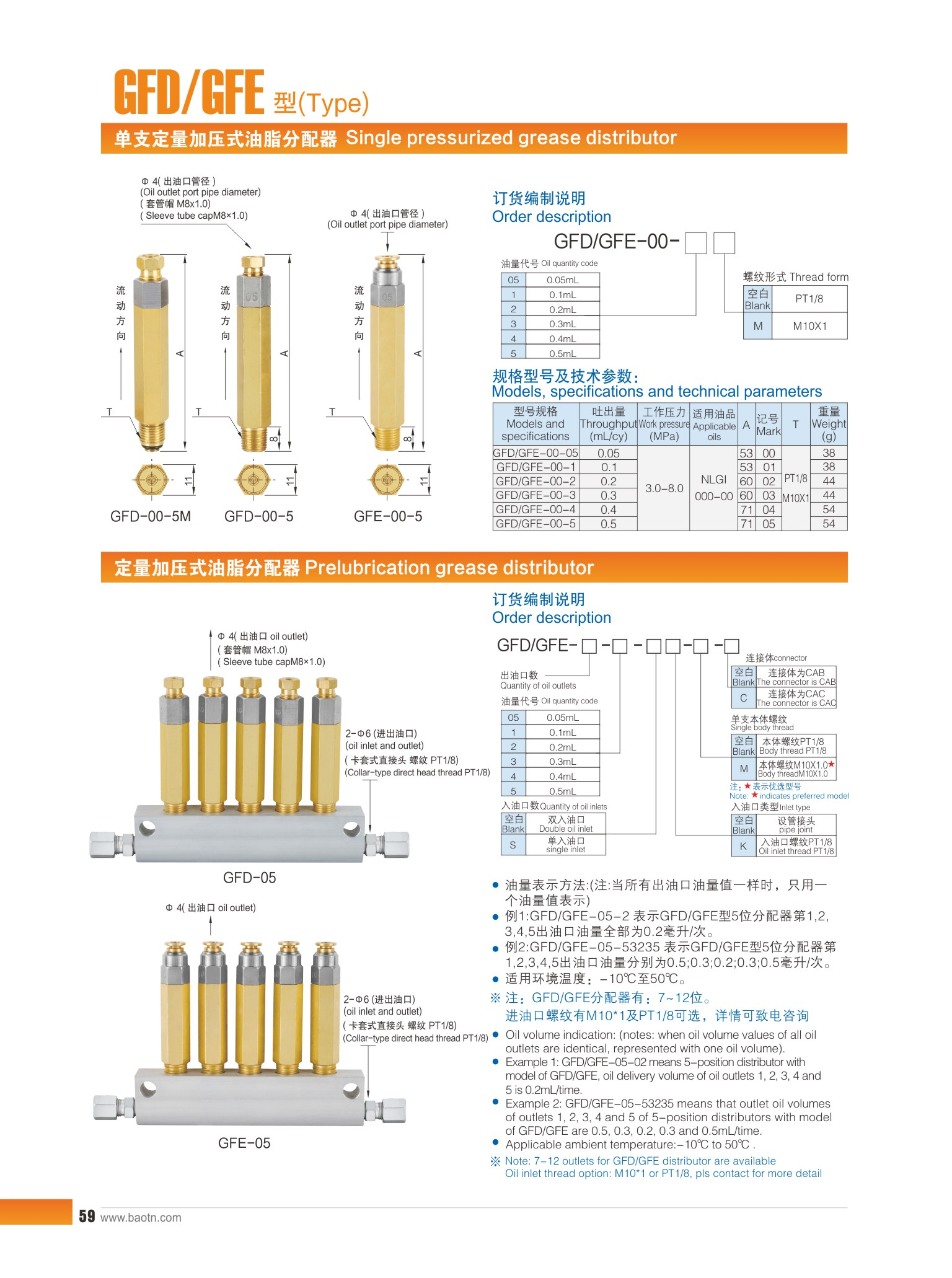

1,Oil volume indication: (notes: when oil volume values of all oil outlets are identical, represented with one oil volume).

2,Example 1: GFD/GFE-05-02 means 5-position distributor with model of GFD/GFE, oil delivery volume of oil outlets 1, 2, 3, 4 and 5 is 0.2mL/time.  3,Example 2: GFD/GFE-05-53235 means that outlet oil volumes of outlets 1, 2, 3, 4 and 5 of 5-position distributors with model of GFD/GFE are 0.5, 0.3, 0.2, 0.3 and 0.5mL/time.

4,Applicable ambient temperature:-10℃ to 50℃ .

Note: 7-12 outlets for GFD/GFE distributor are available Oil inlet thread option: M10*1 or PT1/8, pls contact for more detail
