EFA Oil-air Lubrication Cooling Pump

Warranty period: 1 year
Supply capacity: 10,000/piece per month
Minimum order quantity: 1/piece

The oil and gas lubrication system is mainly composed of an electric lubrication pump; an oil and gas mixer; a pneumatic processing component and a control component.

Product Description

Control the working times of the oil and gas mixer according to actual needs; Please connect the pipeline correctly to ensure that the pipeline does not leak; After the pipeline is connected, please make the oil-gas mixer work continuously for several times until the oil is discharged from the oil outlet pipeline; The lettering mark "3" indicates that the oil output of the oil outlet is 0.03mL/cy,The lettering mark "2" indicates that the oil output of the oil outlet is 0.02mL/cy.

Specifications, models and technical parameters

Performance and features

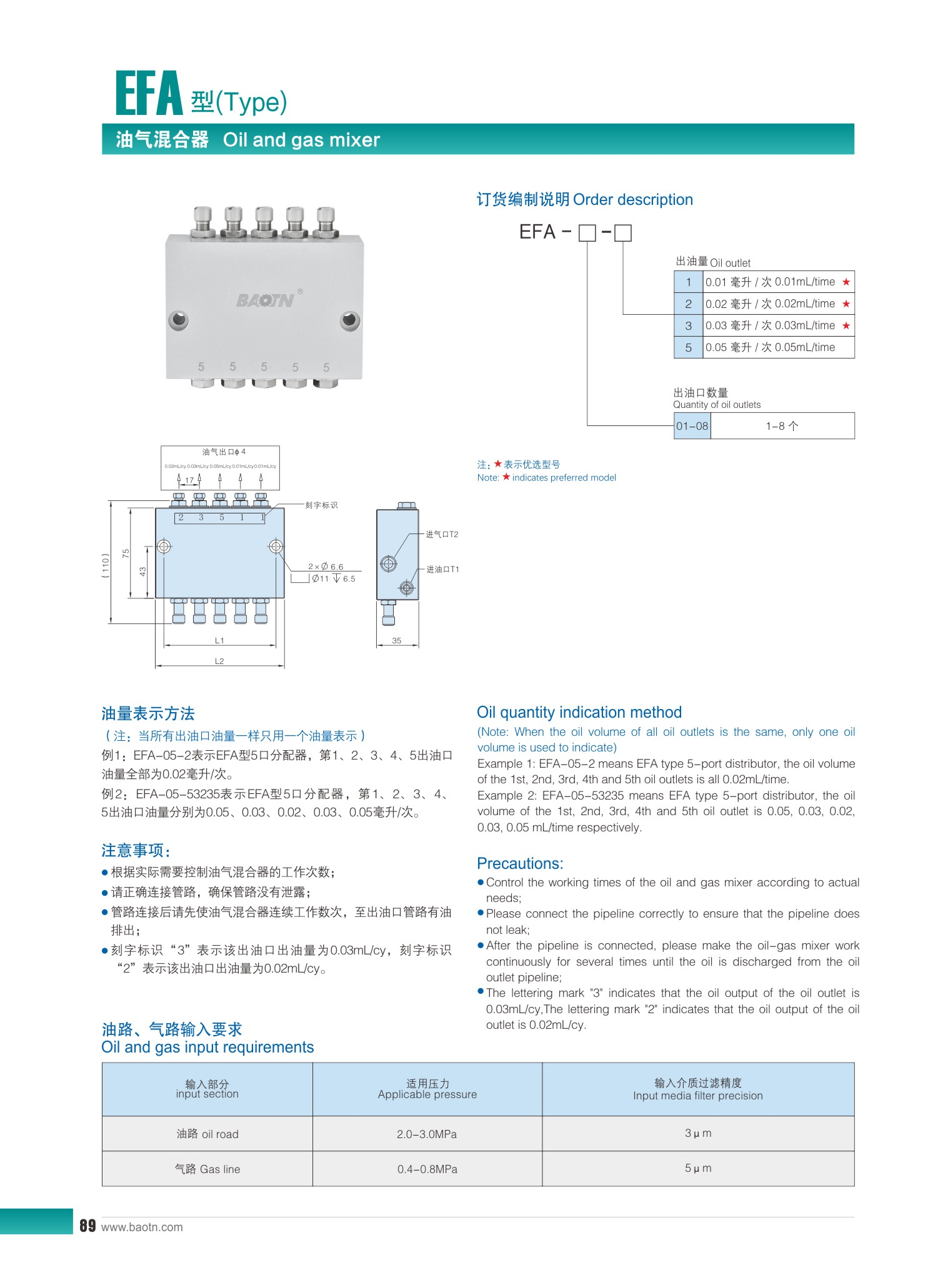

Oil quantity indication method

1,Example 1: EFA-05-2 means EFA type 5-port distributor, the oil volume of the 1st, 2nd, 3rd, 4th and 5th oil outlets is all 0.02mL/time.

2,Example 2: EFA-05-53235 means EFA type 5-port distributor, the oil volume of the 1st, 2nd, 3rd, 4th and 5th oil outlet is 0.05, 0.03, 0.02, 0.03, 0.05 mL/time respectively.

(Note: When the oil volume of all oil outlets is the same, only one oil volume is used to indicate)
