High-Pressure Vertical Multistage Coolant Pump RBVB

High-Pressure Vertical Multistage Coolant Pump RBVB

Warranty period: 1 year
Supply capacity: 10,000/piece per month
Minimum order quantity: 1/piece
RBVB is a non self suction multi-stage centrifugal pump with a standard motor installed.
Product Description

RBVB Vertical Multistage Pump for CNC Machine Tools and Industrial Cooling

Industrial machining and manufacturing equipment often require a suitable pump to deliver clean coolant or process liquid to the working system. The RBVB vertical high-pressure centrifugal pump is designed for compatible liquid-handling applications where multistage pumping is required.

The RBVB series is suitable for applications including machining centers, CNC lathes, electrical discharge machining (EDM) equipment, industrial cleaning systems, filtration systems, and machine tool cooling circuits. Its vertical configuration and multistage design make it an option for equipment manufacturers and industrial system integrators evaluating pump solutions for their machinery.

The pump is intended for clean liquids without solid particles or fibers and must operate within the specified temperature and pressure limits. Actual suitability depends on the required flow rate, delivery head, fluid properties, and system configuration.

Looking for a vertical multistage pump for CNC machine cooling or industrial equipment? Contact us to discuss your application and confirm the appropriate RBVB model.

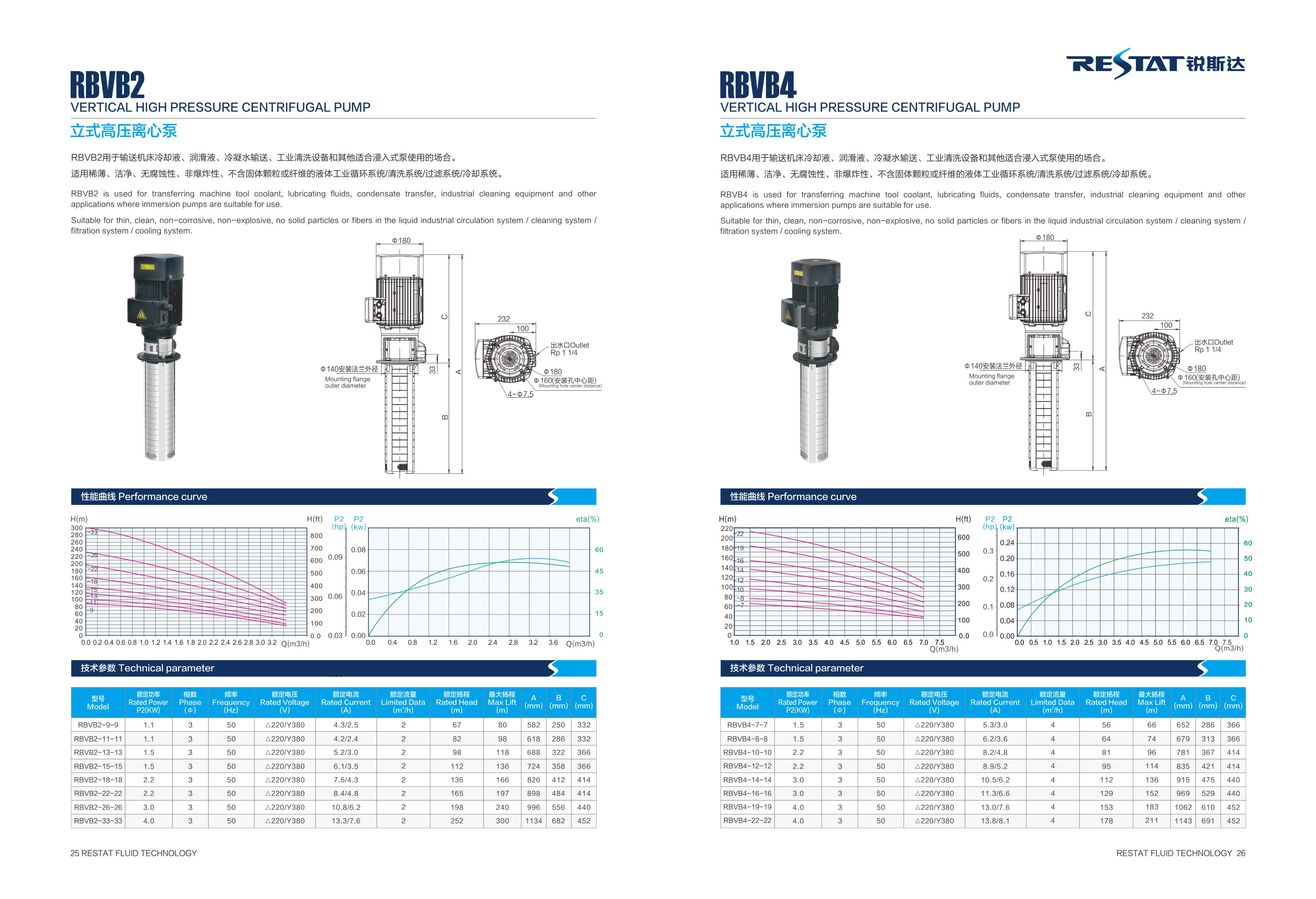

Specifications, models and technical parameters

high pressure coolant pump for cnc machines

Performance and features

RBVB is a non self suction multi-stage centrifugal pump with a standard motor installed.The motor shaft is directly connected to the pump shaft through a coupling at the pump head.

The pump can be equipped with an intelligent protector as needed to effectively protect the pump from rotation, phase  loss,overload, etc.

Product Features

Beautiful appearance, quiet operation, strong power, high efficiency energy saving

Scope of application

Machining center, industrial cleaning,electric spark, CNC lathe, filter system, grinder, coolingsystem

Conveying medium

Suitable for thin, clean, non-corrosive, non-explosive, solid particles or fiber-free liquids (liquid temperature range:0°C-90°C)

Conditions of Use

Maximum ambient temperature: +50°C, the working pressure depends on the temperature of theconveying medium, 1Mpa(10bar): 0°C - +40°C, 0.6Mpa(6bar): +41°C - +90°C

Motor parameters

RBVA series multistage centrifugal pumps are equipped with fully enclosed air-cooled squirrelcage motor. (Single-phase motor with thermal protector) Rated speed: 2900rpm/min, protectionclass: IP55, insulation class: F, energy efficiency class: IE3
