Attentions for system installation

1,Oil pipes are cut in orderly to ensure the pipelines are connected  well without leakage; otherwise, the pipeline may leak oil slowly,  cannot stock pressure, and the distributor cannot store oil or eject  oil as usual.

2,Keep interior of the pipeline clean in installation, and the  lubrication pump and main oil pipe cannot be installed with any  check valve devices.

3, Please use any high-quality and clean new lubricant, and the  best general viscosity is NLGI 000-0.

4,Oil product with unique  feature or alkali or acid features  Applicable temperature 0-50℃.

5,Please notice changes of environmental temperature, adjust oil  viscosity, 000 oil product cannot be used under the temperature  of 15℃ , and 00~0 oil product shall be used above the  temperature of 30℃.

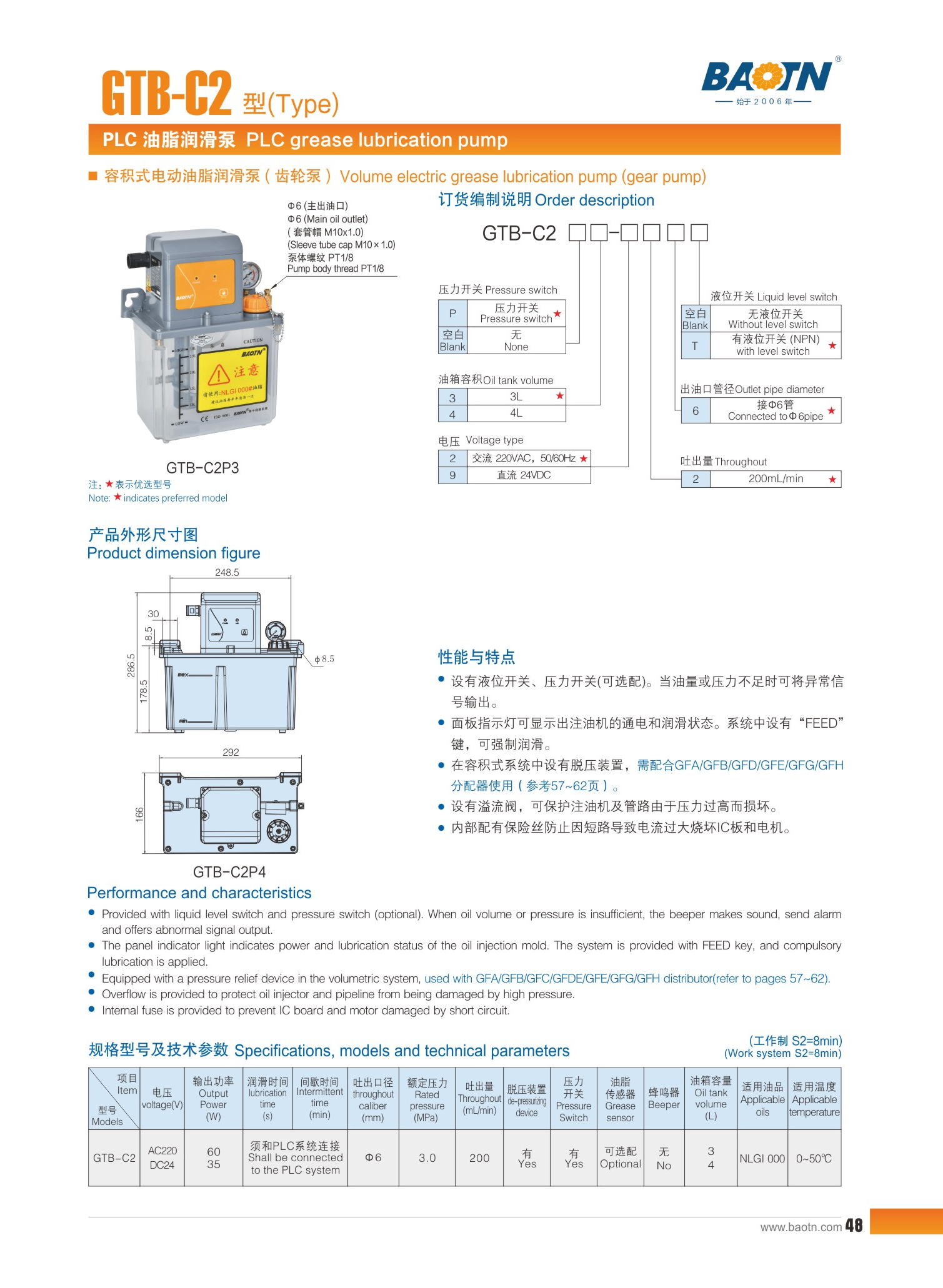

Performance and characteristics

1,Provided with liquid level swich and pressure swich (gptional). When oil volume or pressure is insuficient the beeper makes sound, send alarm

and offers abnormal signal output.

2,The panel ndicator light indicates power and lubrication status of the ollinjection mold The system is provided with FEED key, and compusorylubrication is applied

3,Equipped wih a pressure relef device in the voumetic system, used with GFAGFBGFC/GFDE/GFE/GFG/GFH distributor.

4,Overflow is provided to protect oil injector and pipeline from being damaged by high pressure.

5,Intemal fuse is provided to prevent IC board and motor damaged by short circuit.
