1,Maximum working pressure: 25MPa.

2,Minimum starting pressure: 1.4MPa.

3,Standard displacement per port: 0.08mL/cy~0.56mL/cy.

4,Applicable lubricant range (at standard temperature): lubrication oil ≥ N68,  grease NLGI 000～2.

5,Working environment temperature: -20℃ ~+60℃ (low temperature grease  should be used at low temperature).

6,Piston pair with mechanical cycle indicator Maximum cycle rate: 60cy/min.

7,Maximum circulation rate of Piston pair: 200cy/min.

8,Number of working pieces of each group of distributors: 3~10 pieces.

9,The number of lubrication points available for each group of distributors: 2~20  points.

10,The optimal diameter and length of the distributor output: Φ6mm long  1.2~3.5m; Φ8mm long 1.5~4.5m.

11,Body material and coating: galvanized carbon steel surface.

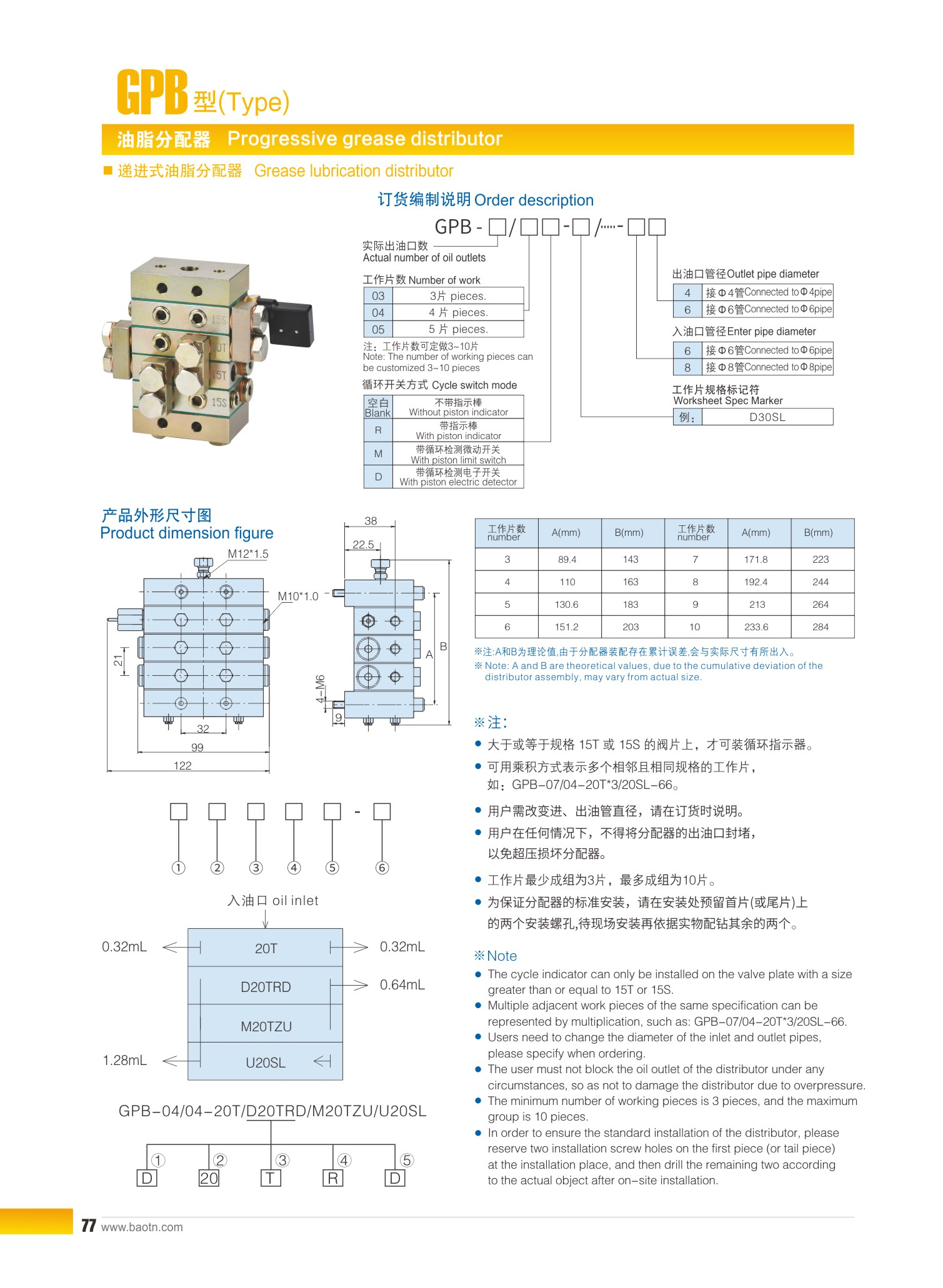

Worksheet marker

①⑤Distributor (slice) adjacent oil supply port upper and lower merge status mark:

U: Indicates that the oil outlet is merged with the oil supply port of the adjacent  upper piece.

M: Indicates that the oil outlet is merged with the adjacent upper and lower oil  feed ports at the same time.

D: Indicates that the oil supply port is merged with the adjacent lower plate oil  supply port.

Blank: Indicates that it is not merged with the oil supply ports of the adjacent  upper and lower parts. ②The oil supply specification code of the distributor (piece):

05——0.08mL/cy; 10——0.16mL/cy;

15——0.24mL/cy; 20——0.32mL/cy;

25——0.40mL/cy; 30——0.48mL/cy;.

35——0.56mL/cy.

③The combined status mark of the left and right oil supply ports of the  distributor (piece): S: Indicates that the left and right oil feed ports of the film are combined. T: Indicates that the left and right ports are not merged.

④Distributor (piece) to oil port status mark:

Blank: Indicates that the left and right sides of the film are provided with oil  supply ports.

Z: Indicates that the film has no oil supply port.

L: Indicates that the chip has a single outlet, and the oil supply port is set  on the left side.

R: Indicates that the chip has a single outlet, and the oil supply ort is set  on the right side.

⑥Cycle indicator assembly position:

L: Indicates that the piece is equipped with an indicator and is installed at the  left end of the piece.

R: Indicates that the sheet is provided with an indicator and is mounted on the  right end of the sheet. Blank: Indicates that there is no indicator for this slice.
