Performance and characteristics

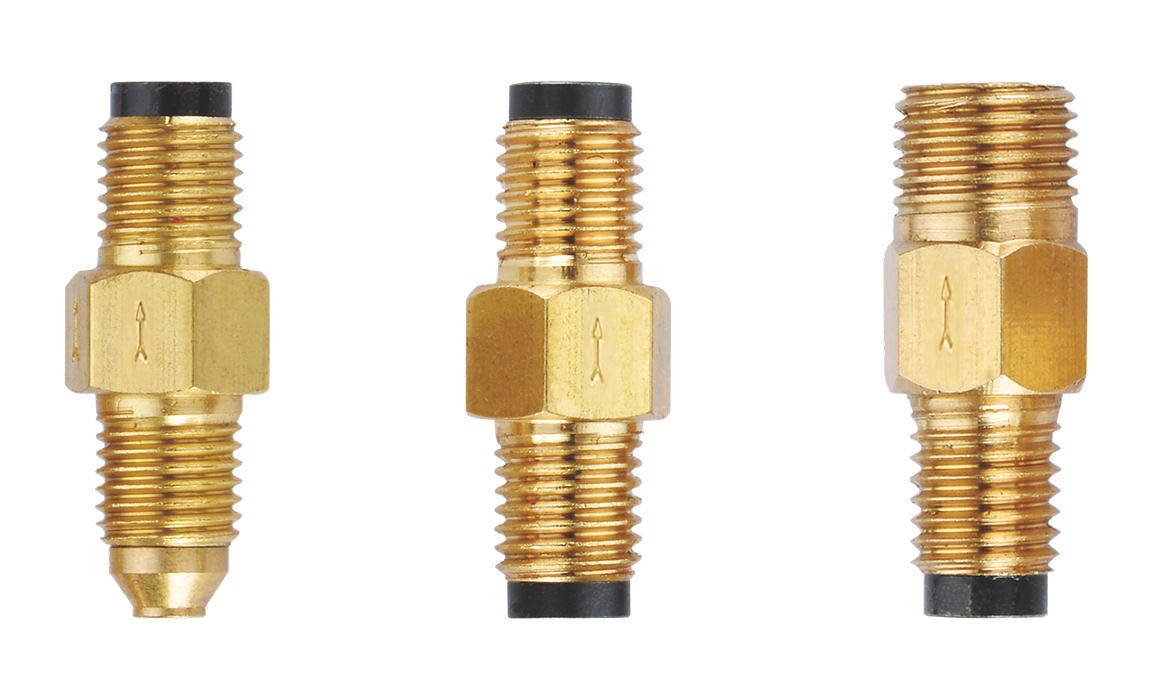

1,BSA/BSB/BSC resistant measurement device is called proportional jpint.

2,Pipe structure: built-in flow limit bar and one-way valve.

3,Opening pressure: 0.2MPa

4,Fowis contolled by the principle of throttling, and distributed according to flowing capacity (fow constant). Meaniwhile, the measurement devicein the lutbricating system with near, distant, high,low, horizontal or vertical instalation have identical outet fiow. With long service life, the rubber sealingparts of the proporional one -way pnt s coated wth copper seeve (except sealing tace)to revent expanson and aang of rubber sealing parts.

5,Senstive acton and smoohol dran:taper sprng is used for one-way valve with proportional jointto ensure that acton of the me asurement device is agile and smooth to prevent reverse flow of oil.

6,Flow ratio: flow of the same model shall be changed with change of environmental temperature and oil visoosity in use.

7,Applicable oil viscosity:32cSt~220cSt.

8,Applicable ambient temperature:-10°C to 50°C.
