Attentions for installation and use

1,The oil outlet pipeline orifices shall be cut smooth, make sure the  connection is intact and no nil leakage.

2,In the process of installing, please ensure that interior of the  pipeline is clean.

3,Please use the correct, clean and impurity-free NLGI 000-2 oil  grease.

4,Applicable temperature -40℃-70℃.  Please refill oil from the correct oil refilling orifice.

5,Do not open the  oil block to refill oil above the oil cup.

6,Please notice environmental temperature, adjust viscosity of oil products.

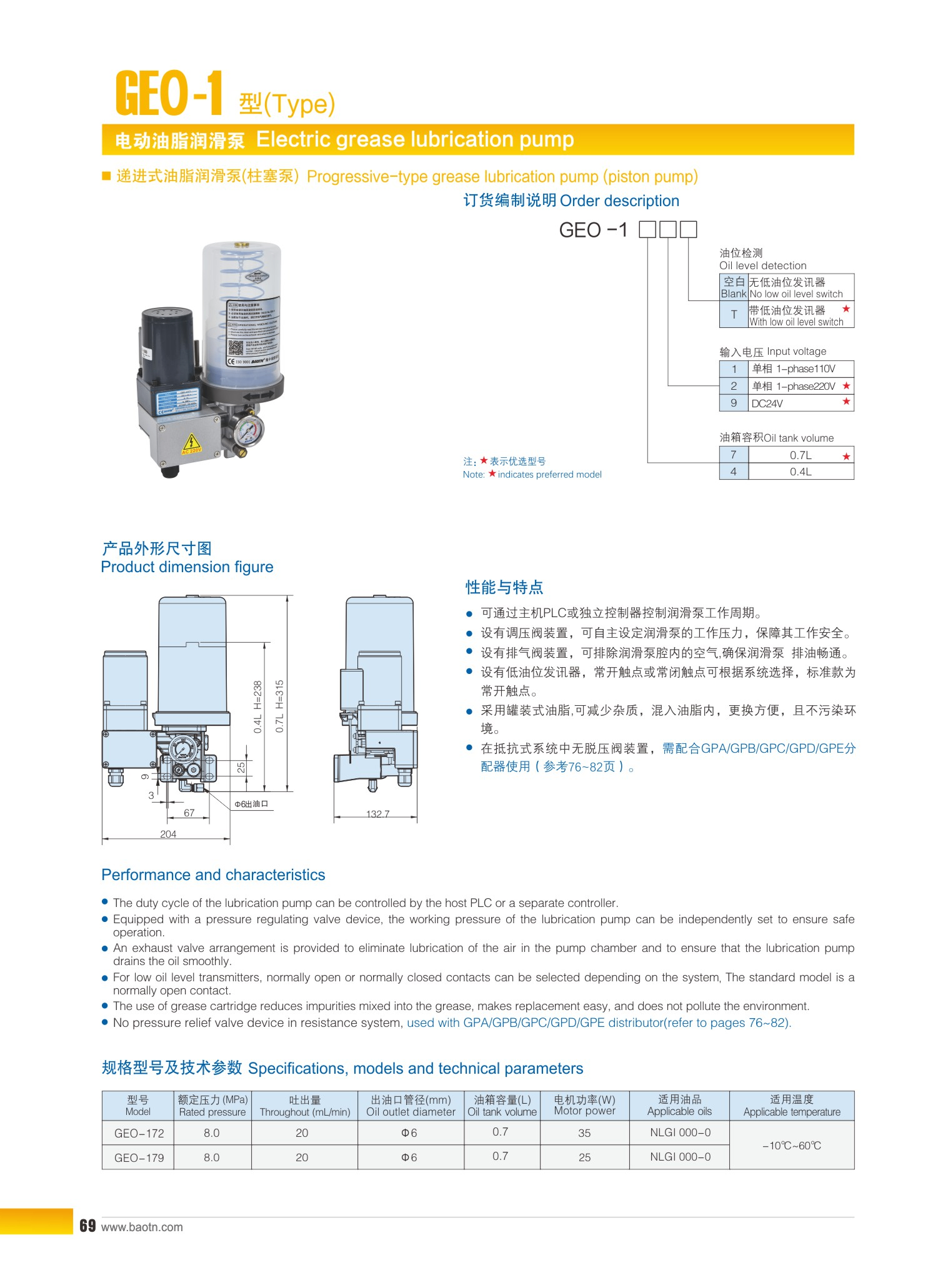

Performance and characteristics

1,The duty cycle of the lubrication pump can be controlled by the host PLC or a separate controller.

2,Equipped with a pressure regulating valve device, the working pressure of the lubrication pump can be independently set to ensure safe  operation.

3,An exhaust valve arrangement is provided to eliminate lubrication of the air in the pump chamber and to ensure that the lubrication pump  drains the oil smoothly.

4,For low oil level transmitters, normally open or normally closed contacts can be selected depending on the system,

5,The standard model is a  normally open contact. The use of grease cartridge reduces impurities mixed into the grease, makes replacement easy, and does not pollute the environment. No pressure relief valve device in resistance system, used with GPA/GPB/GPC/GPD/GPE distributor.
