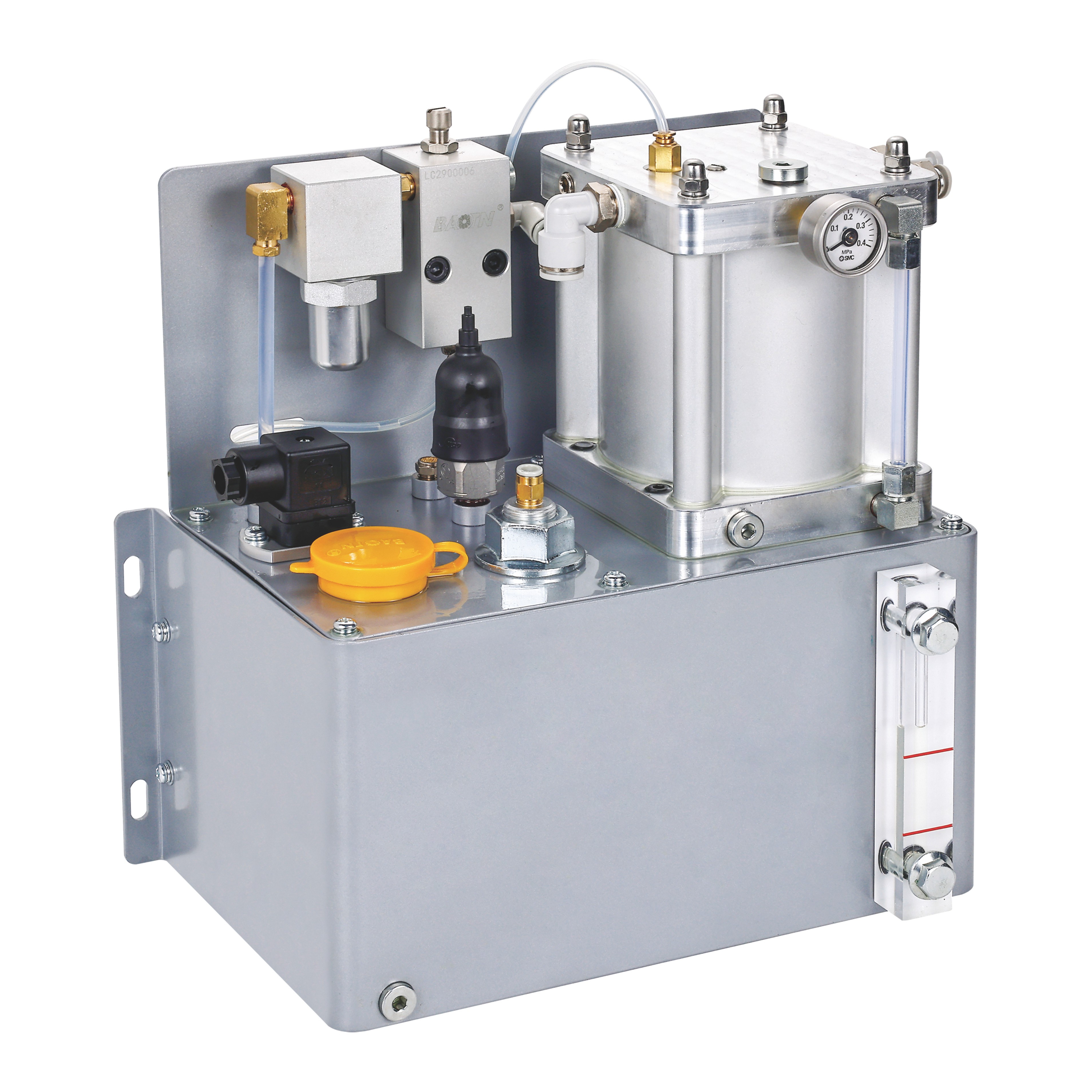

Oil and Gas Lubrication System Overview

The oil and gas lubrication system is mainly composed of an electric lubrication pump; an oil and gas mixer; a pneumatic processing component and a control component. The oil and gas lubrication system is a typical gas-liquid two-phase fluid. Suitable for high speed spindles or other oil and gas lubrication.

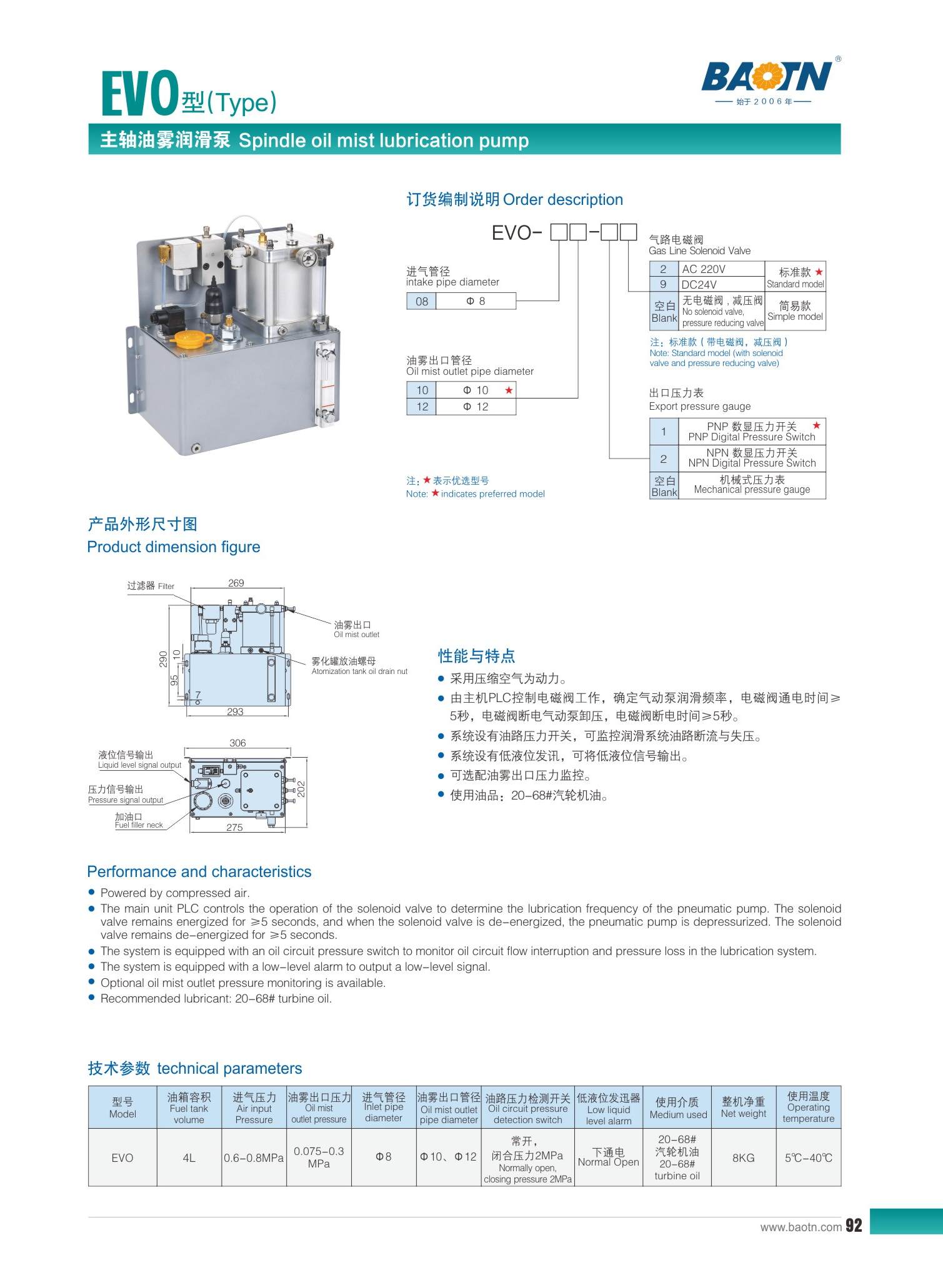

Performance and characteristics

1,Powered by compressed air.  The main unit PLC controls the operation of the solenoid valve to determine the lubrication frequency of the pneumatic pump.

2,The solenoid  valve remains energized for ≥5 seconds, and when the solenoid valve is de-energized, the pneumatic pump is depressurized.

3,The solenoid  valve remains de-energized for ≥5 seconds.

4,The system is equipped with an oil circuit pressure switch to monitor oil circuit flow interruption and pressure loss in the lubrication system.

5,The system is equipped with a low-level alarm to output a low-level signal.

6,Optional oil mist outlet pressure monitoring is available.

7,Recommended lubricant: 20-68# turbine oil.
