Rationale of the BFF distributor

1,The lubricant is pressed out from the oil pump, and the lubricant pressure makes the plunger in the distributor start to push upward, and the lubricant is  supplied to the metering cavity through the gap between the plunger and the inner hole of the shell, and the oil pressure makes the indicator in the  metering cavity move to the right, and the metering cavity is completed with oil storage.

2,When the oil pump stops supplying oil, the pressure relief valve opens automatically, so that the lubricant in the main oil pipe returns to the oil through  the pressure relief valve, at this time the system pressure decrease, the plunger resets to the original position under the action of the spring force, and  the indicator is discharged to the oil storage chamber under the action of the spring force to store the lubricant in the metering chamber, and the oil  storage is completed.

3,When the oil pump is turned on again and pressurized, the oil pressure will push the plunger, forcing the lubricant in the oil storage chamber to be  discharged through the non-return valve, and the oil discharge is completed. At the same time in the process of discharging oil, lubrication oil through  the gap between the plunger and the housing bore will be supplied to the metering cavity, oil pressure to make the metering cavity indicator to move to  the right, metering cavity oil storage is complete.

4,When the oil pump stops supplying oil, the unloading valve opens automatically, so that the lubricant in the main oil pipe returns to the oil through the  unloading valve, the system pressure decrease, the plunger resets to the original position under the action of the spring force, and the indicator in the  metering chamber is discharged to the storage cavity under the action of the spring force, and the oil storage is completed. The dispenser works  cyclically to realize oil discharge and oil storage.

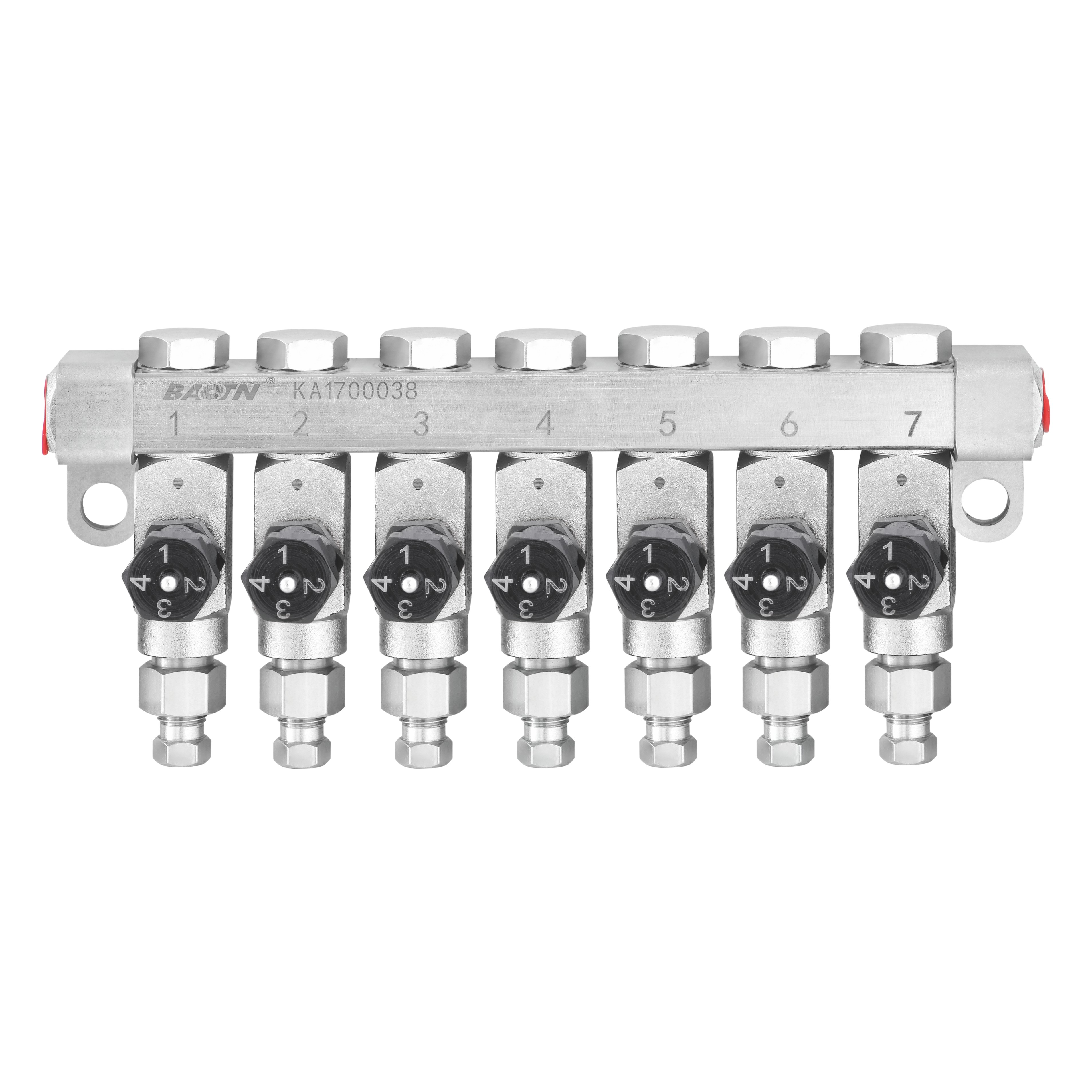

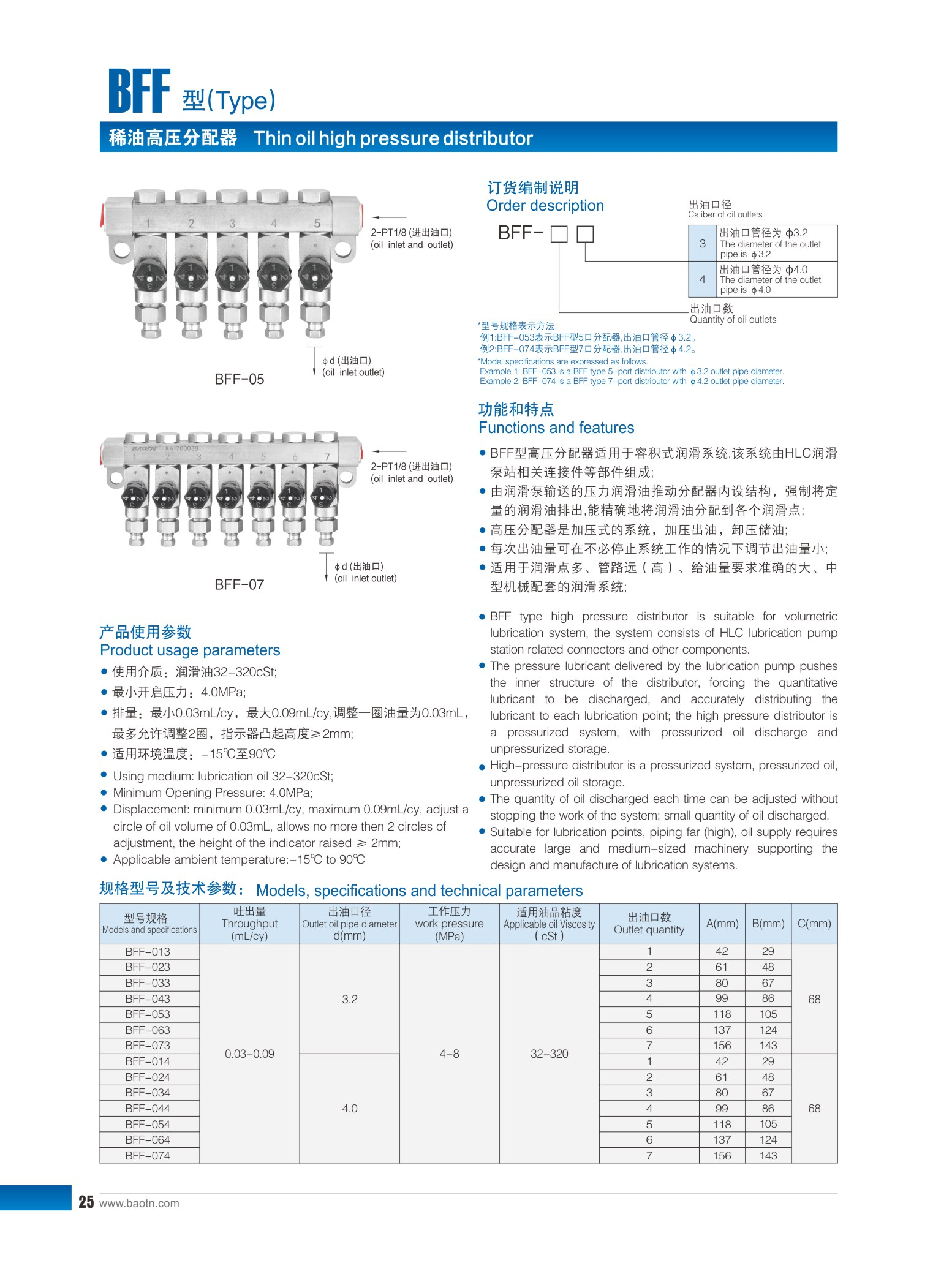

1,BFF type high pressure distributor is suitable for volumetric  lubrication system, the system consists of HLC lubrication pump  station related connectors and other components.

2,The pressure lubricant delivered by the lubrication pump pushes  the inner structure of the distributor, forcing the quantitative  lubricant to be discharged, and accurately distributing the  lubricant to each lubrication point; the high pressure distributor is  a pressurized system, with pressurized oil discharge and  unpressurized storage.

3,High-pressure distributor is a pressurized system, pressurized oil,  unpressurized oil storage.

4,The quantity of oil discharged each time can be adjusted without  stopping the work of the system; small quantity of oil discharged.

5,Suitable for lubrication points, piping far (high), oil supply requires  accurate large and medium-sized machinery supporting the  design and manufacture of lubrication systems.
