Attentions for system installation

1,Oil pipe orifices shall be cut in order to ensure that connection is  integral without oil leakage; otherwise, the pipeline may leak oil and  pressure cannot be accumulated, and the distributor cannot store oil or  convey oil. ,

2,When installed, interior of the pipeline shall be clean, and installing check valves in the lubrication pump and main pipeline are prohibited.

3,Please use good quality clean oil. Unique, alkali or acid oil cannot be  used.

4,Applicable temperature -10~50℃.

5,Please notice changes of environmental temperature. Properly adjust oil product variety.

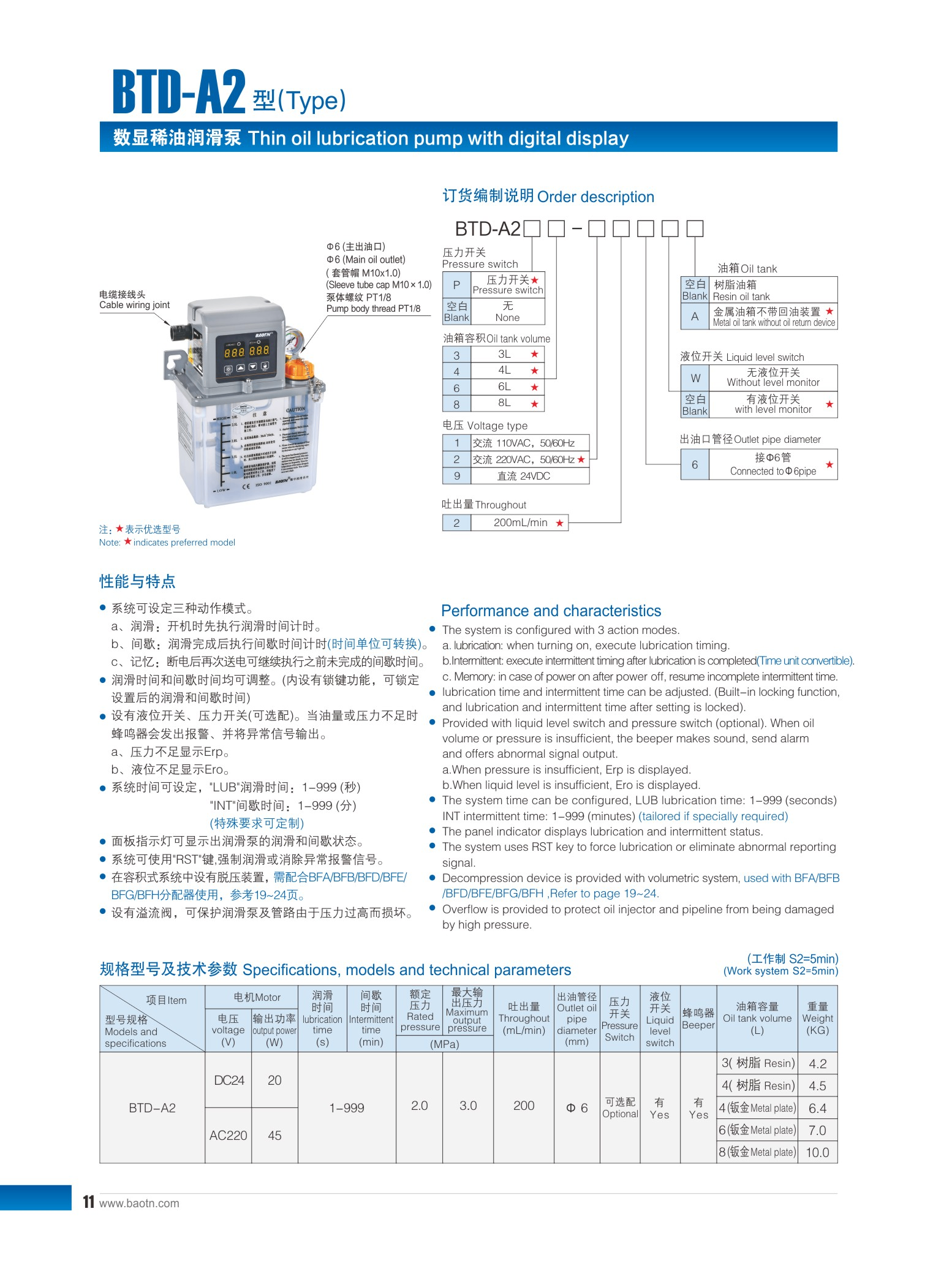

Performance and characteristics

1,The system is configured with 3 action modes.

a.lubrication: when turning on, execute lubrication timing.

b.Intermittent execute intermittent timing after lubrication is completed(Tme unt convertible)

c. Memory: in case of power on after power off, resume incomplete intermittent time.

lubrication time and intermittent time can be adjusted. (Built-in locking function,and lubrication and intermittent time after setting is locked).

2,Provided with liquid level switch and pressure switch (optional). When oilvolume or pressure is insufficient, the beeper makes sound, send alarmand offers abnormal signal output.

a.When pressure is insufficient, Erp is displayed.

b.When liquid level is insufficient, Ero is displayed.

3,The system time can be configured, LUB lubrication time: 1-999 (seconds)INT intermittent time: 1-999 (minutes) (tailored if specially required)

4,The panel indicator displays lubrication and intermittent status.

5,The system uses RST key to force lubrication or eliminate abnormal reportingsignal.

6,Decompression device is provided with volumetric system, used with BFA/BFB/BFD/BFE/BFG/BFH.

7,Overflow is provided to protect oil injector and pipeline from being damagedby high pressure.
