Attentions for installation of the system

1,The connecting oil pipe shall be cut in order to ensure that oil will  not leak.

2,Otherwise, the pipeline accumulate pressure and the distributor cannot deliver oil as usual. When installed, interior of the pipeline shall be clean.  3,Please use certified lubricant for cleaning, and the optimum applicable viscosity is ISO VG32~250. Applicable temperature -10~50℃.

4,Please notice changes of environment, and adjust oil viscosity.

5,Oil delivery of the proportional joint cannot be installed reversely.

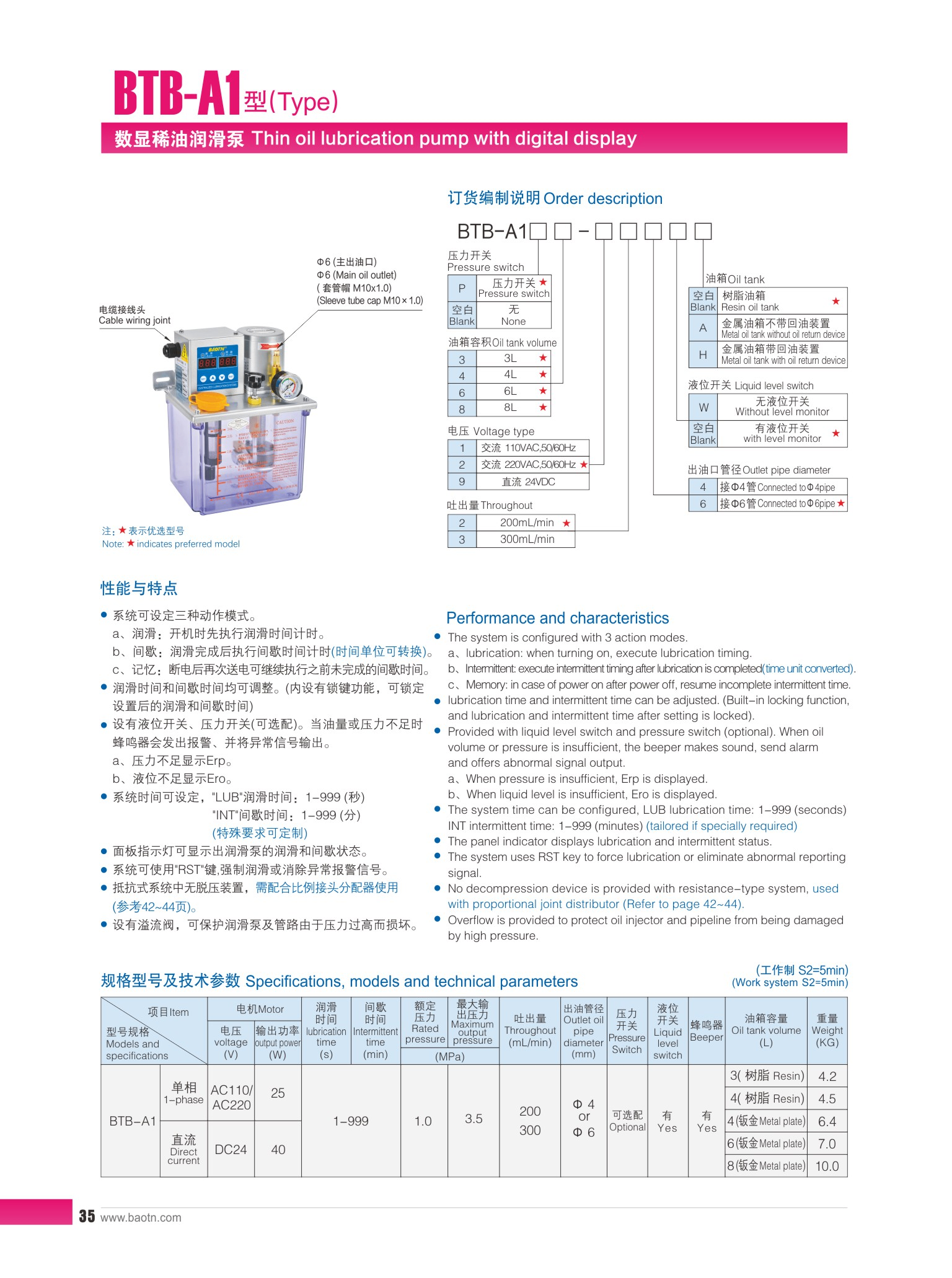

Performance and characteristics

1,The system is configured with 3 action modes.

a、lubrication: when turning on, execute lubrication timing.

b、Intermittent: execute intermittent timing after lubrication is completed.

c、Memory: in case of power on after power on, resume incomplete intermittent time.

lubrication time and intermittent time can be adjusted. (Built-in locking function, and lubrication and intermittent time after setting is locked).  2,Provided with liquid level switch and pressure switch (optional).

When oil volume or pressure is insufficient, the beeper makes sound, send alarm and offers abnormal signal output.

a、When pressure is insufficient, Erp is displayed.

b、When liquid level is insufficient, Ero is displayed.

3,The system time can be configured, LUB lubrication time: 1-999 (seconds)  INT intermittent time: 1-999 (minutes) (tailored if specially required)

4,The panel indicator displays lubrication and intermittent status.

5,The system uses RST key to force lubrication or eliminate abnormal reporting signal.

6,Decompression device is provided with volumetric system, used with BFA/BFB/ BFD/BFE/BFG/BFH distributor.

7,Overflow is provided to protect oil injector and pipeline from being damaged by high pressure.
