Attentions for system installation

1,Oil pipes are cut in orderly to ensure the pipelines are connected  well without leakage; otherwise, the pipeline may leak oil slowly,  cannot stock pressure, and the distributor cannot store oil or eject  oil as usual.

2,Keep interior of the pipeline clean in installation, and the  lubrication pump and main oil pipe cannot be installed with any  check valve devices.

3, Please use any high-quality and clean new lubricant, and the  best general viscosity is NLGI 000-0.

4,Oil product with unique  feature or alkali or acid features  Applicable temperature 0-50℃.

5,Please notice changes of environmental temperature, adjust oil  viscosity, 000 oil product cannot be used under the temperature  of 15℃ , and 00~0 oil product shall be used above the  temperature of 30℃.

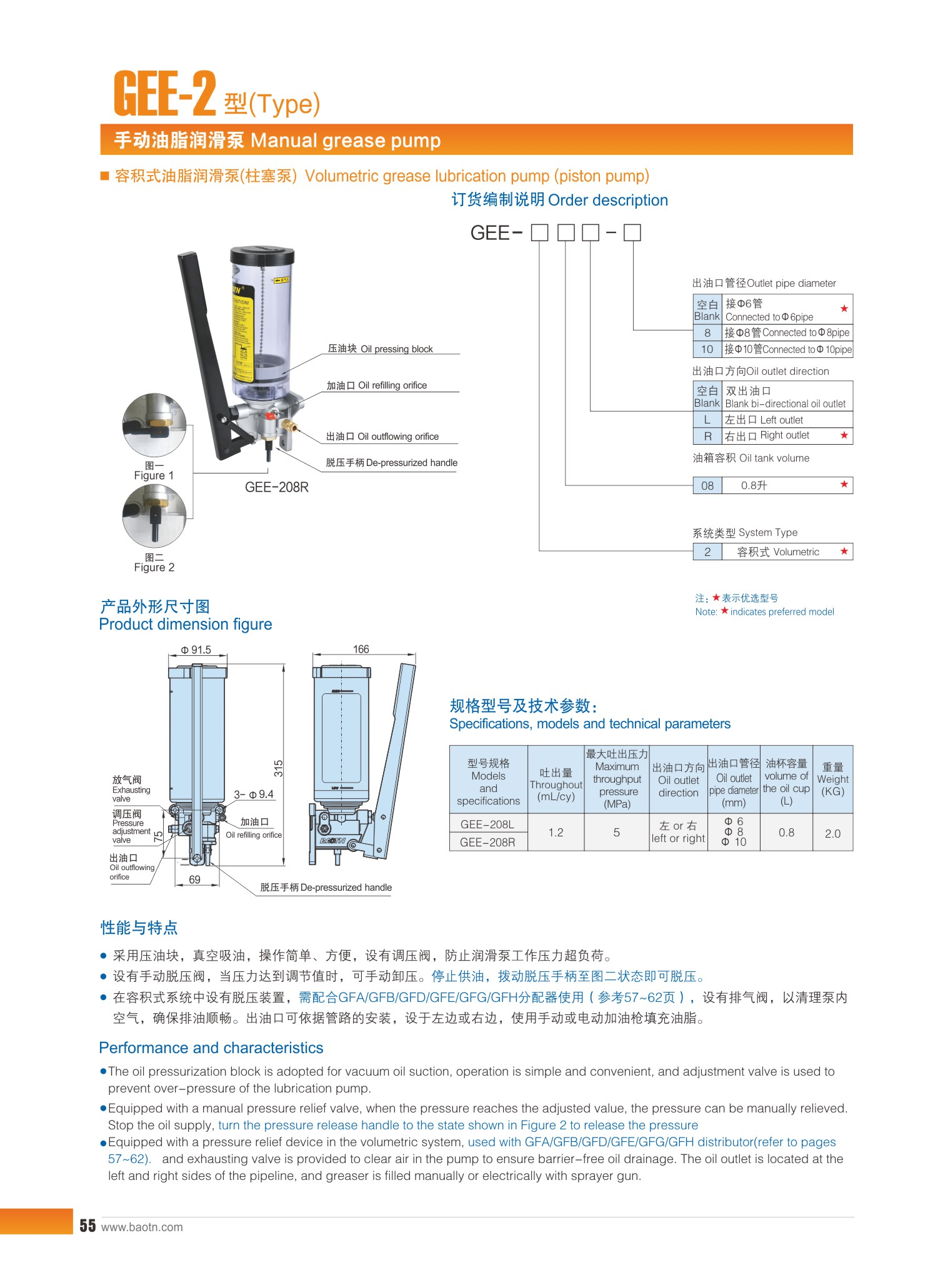

Performance and characteristics

1,The oil pressurization block is adopted for vacuum oil suction, operation is simple and convenient, and adjustment valve is used to prevent over-pressure of the lubricating pump.

2,Equipped wih a manual pressure relief valve, when the pressure reaches the adjusted value, the pressure can be manually relieved.Stop the oil supply, turn the pressure release handle to the state shown in Figure 2 to release the pressure

3,Equipped with a pressure relief device in the volumetric system, used with GFA/GFB/GFD/GFE/GFG/GFH distributor. and exhausting valve is provided to clear air in the pump to ensure barier-free oil drainage. The oil outlet is located at the left and right sides of the pipeline. and greaser is filled manually or electrically with sprayer gun.
