Selecting a high flow lubrication pump requires more than comparing rated output. The pump must deliver the required lubricant quantity within the available lubrication cycle while meeting the pressure and compatibility requirements of the complete system.
Before selecting a pump, determine the lubricant demand at each lubrication point, the number of points operating in each cycle, and the time available for lubricant delivery. These factors help establish whether a higher-capacity pump is necessary or whether the issue lies in the distribution system or lubrication schedule.
This guide explains how to evaluate lubricant demand, flow rate, working pressure, and system compatibility before choosing a suitable lubrication pump for industrial equipment.
Determine Whether Your Application Needs Higher Flow Capacity
A high flow lubrication pump may be necessary when existing equipment cannot deliver enough lubricant within the required lubrication cycle. This situation can occur in production lines, machine tools, conveyors, and industrial machinery with multiple lubrication zones.
However, a large number of lubrication points does not automatically mean a high-capacity pump is required. Actual demand depends on lubricant consumption per point, the number of points operating simultaneously, and the frequency of lubrication cycles.
Before comparing models, establish three parameters:
Total lubricant demand: The volume required across all lubrication points during a complete cycle.
Cycle frequency: How often the equipment needs lubrication.
Available delivery time: The period within which the pump must supply the required volume.
After estimating the total lubricant demand, check whether the existing system can deliver the required quantity within the available lubrication window. If delivery is insufficient, investigate the pump's output, working pressure, distributor configuration, pipeline resistance, and cycle settings before deciding to increase pump capacity.
A larger pump is not automatically the best solution. The selected configuration must meet the actual lubricant demand without exceeding the requirements of the lubrication points or other system components.
These figures help determine whether higher pump output is necessary or whether the existing system needs better distribution or cycle management instead.
Match Pump Output to Actual Operating Demand
One of the most important aspects of high flow lubrication pump selection is distinguishing rated output from the delivery capacity required by the application.
A preliminary flow calculation is straightforward:
Required average flow rate = Lubricant volume per cycle × Number of cycles per unit of time
For example, if a machine requires 600 mL of lubricant per cycle and completes four cycles per hour, the calculated average demand is 2,400 mL/h, or 2.4 L/h. This is equivalent to 40 mL/min.
This calculation is a preliminary estimate, not a final pump specification. The selected pump must also meet the required delivery time, working pressure, lubricant compatibility, and distribution-system requirements. Confirm whether the manufacturer's rated output represents theoretical displacement or actual delivery under the specified operating conditions.
Buyers should ask the manufacturer whether the stated flow rate represents theoretical displacement, rated output, or measured delivery under specified operating conditions. This distinction is particularly important when comparing products from different suppliers.
For centralized systems, confirm that the pump can supply the required quantity within the available lubrication window. Meeting average demand alone may not be sufficient if several lubrication zones require lubricant simultaneously.
Evaluate Flow Rate and Pressure Together
Flow rate and pressure serve different purposes, and both must match the application.
Flow rate determines how much lubricant can be delivered over time. Pressure determines whether the pump can overcome resistance within the lubrication network and supply the required lubrication points.
A pump with a high nominal flow rate may not perform effectively if it cannot maintain the necessary working pressure. Conversely, selecting the highest available pressure rating does not automatically improve lubrication performance.
When evaluating lubrication pump technology, consider the following factors:
Pipeline resistance: Pipe length, internal diameter, bends, filters, and distribution components affect pressure losses.
Lubricant viscosity: Oil viscosity and grease characteristics influence delivery behavior under different temperatures.
Distribution requirements: Progressive dividers and other metering components have specific operating requirements.
Component ratings: Hoses, fittings, valves, and distributors must be suitable for the intended working pressure.
When comparing lubrication pumps, evaluate rated output and working pressure under the same application requirements. A high pressure rating does not guarantee that a pump can deliver the required lubricant volume, and a high nominal flow rate does not guarantee adequate delivery through a restrictive lubrication circuit.
Check the pump specifications together with the lubricant, pipeline layout, distributor requirements, and ratings of the connected components. The final selection should be based on the performance required by the complete lubrication system.

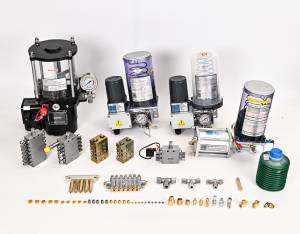

Check Compatibility With the Complete Lubrication System
A suitable pump must work with the lubricant, distribution network, and machine controls.
For oil-based systems, confirm the specified viscosity range and expected operating temperature. For grease applications, check the required grease consistency and the pump's approved lubricant specifications.
The distribution architecture is equally important. In a progressive grease lubrication system, for example, the pump supplies lubricant through progressive divider blocks that distribute measured quantities to connected lubrication points. The pump's output and pressure must match the requirements of the complete arrangement.
Before procurement, confirm the following:
Lubricant: The specified oil viscosity or grease consistency and the pump's approved lubricant range.
Delivery demand: Required lubricant quantity per point, total demand per cycle, and available delivery time.
Distribution system: Number and arrangement of lubrication points, distributor type, and pipeline layout.
Operating conditions: Required working pressure, temperature, and duty cycle.
Controls and monitoring: Power supply, control method, and the monitoring functions supported by the selected configuration.
Maintenance: Reservoir capacity, replenishment method, inspection requirements, and component accessibility.
These checks help determine whether an existing pump can meet the application requirements or whether changes to the pump, distributor, pipeline, or control arrangement are needed.
BAOTN GET High-Pressure Lubrication Pump: Applications and Selection Limits
The BAOTN GET High-Pressure Lubrication Pump is designed for centralized lubrication applications that require high-pressure grease delivery and can be configured for use with compatible progressive distributors.
Depending on the selected configuration, the GET series offers displacement options of 2.0, 2.8, or 4.0 mL/min, nominal pressure options of 16, 25, or 35 MPa, and reservoir capacities ranging from 1.5 L to 8 L. Available power supplies, outlets, and monitoring accessories should be confirmed against the specific model.
The GET series should not be selected solely because an application requires a high flow rate. Its rated displacement must be compared with the actual lubricant demand, required delivery interval, and distribution-system requirements.
For applications with substantially higher lubricant throughput requirements, ask BAOTN to evaluate whether a different pump configuration or system design is more appropriate. Confirm the final selection using the official model specifications and the requirements of the complete lubrication circuit.
When Is the GET Series Worth Considering?
The GET series may be worth evaluating when a machine requires high-pressure grease delivery through a compatible centralized or progressive lubrication arrangement. The appropriate configuration depends on the required lubricant quantity, working pressure, distribution layout, and operating conditions.
Before selecting a model, compare its rated displacement with the application's required delivery rate and lubrication-cycle duration. For example, a calculated demand of 2.4 L/h is equivalent to 40 mL/min, which is substantially higher than the GET series' listed displacement options of 2.0–4.0 mL/min.
This comparison does not replace a complete system assessment, but it highlights why rated output must be checked before recommending a pump. If the required throughput exceeds the available configuration's capacity, BAOTN should evaluate an alternative pump or system design.
Evaluate the Manufacturer Before Making a Purchase
Choosing a high flow lubrication pump manufacturer requires more than comparing product prices and headline specifications. The supplier should be able to demonstrate that the proposed pump matches the application's actual operating conditions.
Use these criteria when comparing suppliers:
Specification transparency: Can the manufacturer provide rated output, working pressure, lubricant compatibility, and operating limits?
Application support: Can the supplier evaluate your lubrication demand and explain why a particular configuration is suitable?
System integration: Can the pump work with the existing distribution network, machine controls, and installation constraints?
Maintenance requirements: Are recommended maintenance intervals, replacement components, and technical documentation available?
Lifecycle value: Will the proposed solution help reduce lubrication-related downtime, unnecessary lubricant consumption, and maintenance labor?
For OEMs and procurement teams, these factors offer a more meaningful basis for comparison than maximum flow rate or initial purchase price alone.
To help BAOTN evaluate a suitable lubrication pump, provide the following information:
Machine type and application
Specified lubricant and operating temperature
Number of lubrication points and required lubricant quantity
Required delivery interval and available lubrication time
Working pressure and existing distributor or pipeline arrangement
Power supply and control requirements
With these details, BAOTN can assess whether the existing configuration is suitable or whether another pump or distribution arrangement should be considered.
Conclusion
Choosing a high flow lubrication pump starts with calculating the actual lubricant demand and verifying that the pump can meet the required delivery rate within the available lubrication cycle. Working pressure, lubricant compatibility, distribution design, and control requirements must also be considered.
The pump with the highest rated output is not necessarily the right choice. The selected configuration must match the machine's lubrication requirements and the performance limits of the complete system.
If you are evaluating a lubrication pump for industrial equipment, contact BAOTN with your machine details, lubricant specifications, required flow rate, working pressure, and distribution-system information to discuss a suitable configuration.
Frequently Asked Questions
How do I calculate the flow rate required for a lubrication pump?
Estimate the lubricant quantity required per cycle and multiply it able for high-flow applications?
No. Working pressure and flow rate describe different aspects of pump performance. A pump may provide high pressure but have a relatively low rated displacement. Compare both parameters with the actual application requirements.
What information is needed to select an industrial lubrication pump?
Useful information includes the machine type, lubricant specification, number of lubrication points, required lubricant quantity, lubrication interval, working pressure, pipeline layout, and control requirements.
Can I replace an existing lubrication pump with a higher-capacity model?
Not without checking the complete system. The distributor, pipeline, lubrication points, and control settings must be compatible with the proposed pump. If delivery is insufficient, investigate the cause before deciding whether to increase pump capacity.
