Product Features

Beautiful appearance, quiet operation, strong power, high efficiency energy saving

Scope of application

Machining center, industrial cleaning,electric spark, CNC lathe, filter system, grinder, coolingsystem

Conveying medium

Suitable for thin, clean, non-corrosive, non-explosive, solid particles or fiber-free liquids (liquid temperature range:0°C-90°C)

Conditions of Use

Maximum ambient temperature: +50°C, the working pressure depends on the temperature of theconveying medium, 1Mpa(10bar): 0°C - +40°C, 0.6Mpa(6bar): +41°C - +90°C

Motor parameters

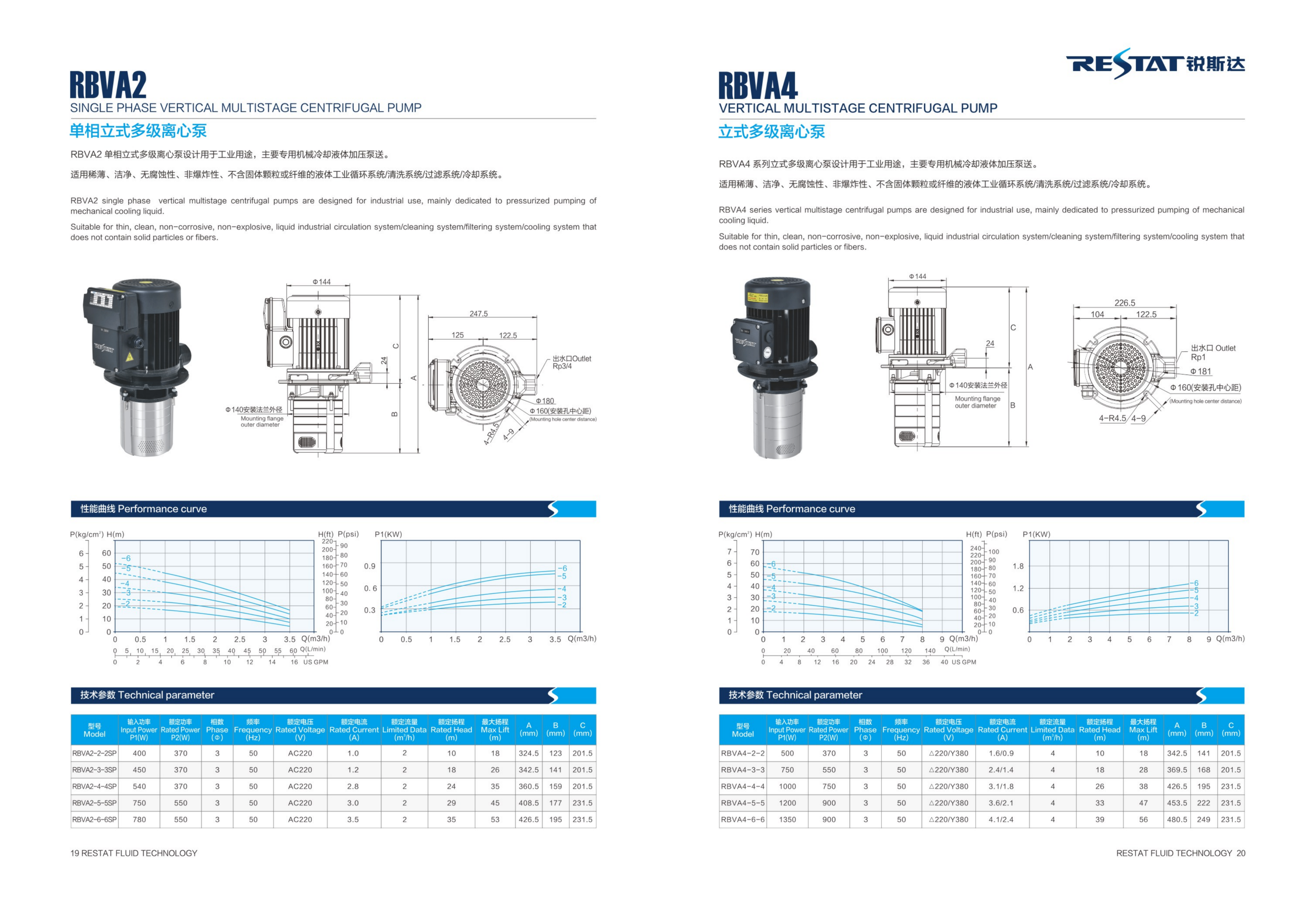

RBVA series multistage centrifugal pumps are equipped with fully enclosed air-cooled squirrelcage motor. (Single-phase motor with thermal protector) Rated speed: 2850rpm/min, protectionclass: IP54, insulation class: F, energy efficiency class: IE3

RAVA8 series vertical single-stage circulating pump is specially designed  for pumping,spraying and circulating of coolant and lubricant.

It is used in all kinds of turning,milling,planing,grinding,sawing and other tool machine.

RAVA4 series vertical single-stage circulating pump is specaly designed for pumping, spraying and circulating of coolant and lubricant.

It is used in all kinds of turning, milling, planing, grinding, sawing and other tool machines.
