Product Features

Beautiful appearance, quiet operation, strong power, high efficiency energy saving.

Scope of application

EDM, machining center, high-gloss machine, engraving and milling machine, engravingmachine, CNC machine tool, grinding machine, filter system, industrial cleaning.

Conveying medium

Suitable for thin, clean, non-corrosive, non-explosive, solid particles or fiber-free liquids (liquidtemperature range: 0°C-90°C)

Conditions of Use

Maximum ambient temperature: +50°C, the working pressure depends on the temperature of theconveying medium, 1Mpa(10bar): 0°C ~ +40°C, 0.6Mpa(6bar): +41°C ~ +90°C

Motor parameters

The RAVA series vertical single-stage circulating pump is equipped with a fully enclosed air-cooled squirrel-cage motor. (Single-phase motor with thermal protector) Rated speed:2850rpm/min, protection class: IP54, insulation class: F, energy efficiency class: IE3

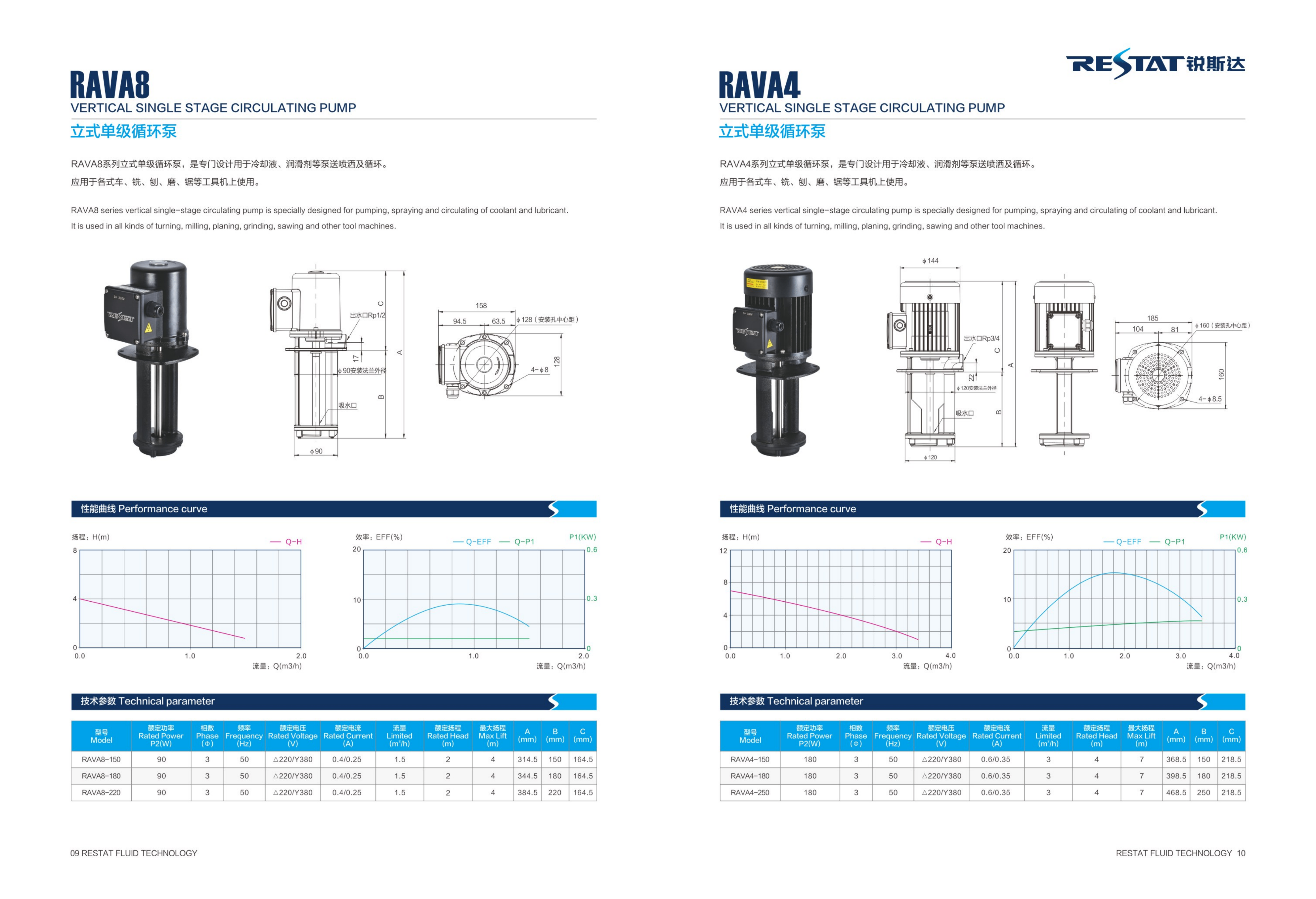

RAVA8 series vertical single-stage circulating pump is specially designed  for pumping,spraying and circulating of coolant and lubricant.

It is used in all kinds of turning,milling,planing,grinding,sawing and other tool machine.

RAVA4 series vertical single-stage circulating pump is specaly designed for pumping, spraying and circulating of coolant and lubricant.

It is used in all kinds of turning, milling, planing, grinding, sawing and other tool machines.
