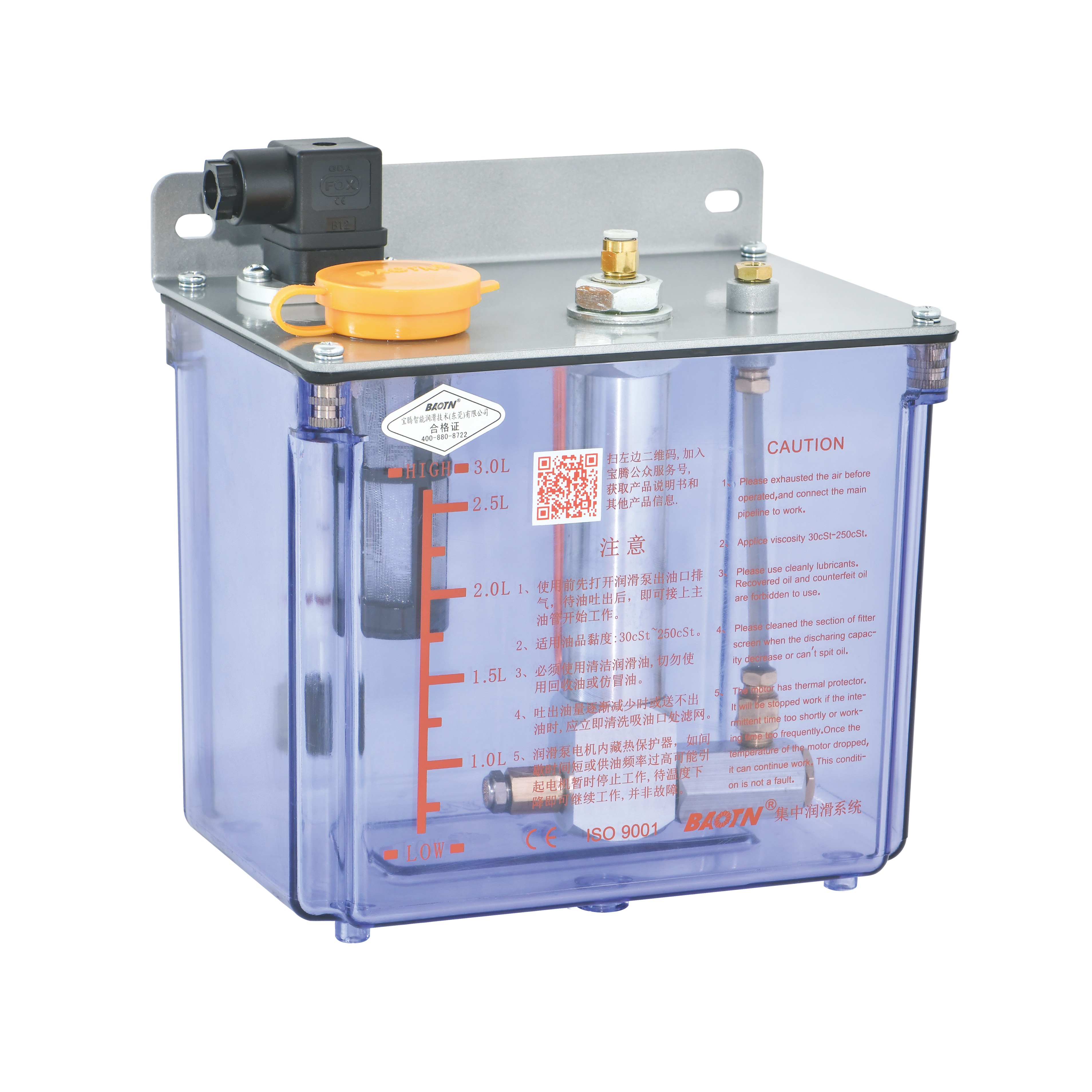

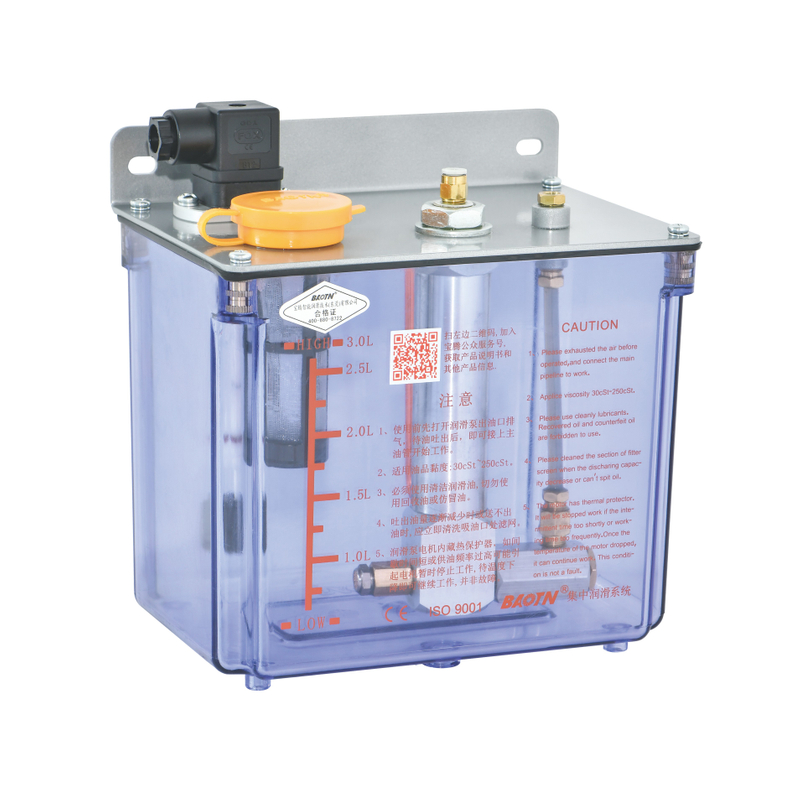

Pneumatic thin oil lubrication pump

Performance and characteristics

1,Powered by compressed air.

2,The solenoid valve is controlled by the host PLC or the oil pump controler to determine the oil supply cycle of the lubrication system.

The solenoid valve is electriied to control the pneumatic pump, and the electriication time of the solenoid valve is >1 seconds.

The solenoid valve is de-energized and the pneumatic pump is depressurized, and the solenoid valve is de-energized for > 1 seconds.

3,A pressure switch is set at the end of the system to monitor the interuption and pressure loss of the main ol pipeline of the lubricalion system

4,Equipped with low liquid level transmitter, which can output low liquid level signal.

5,Equipped with an automatic pressure relief device, the lubrication pump stops running, and the system automalically relieves pressure.

6,Use oil viscosity: 1SO VG 20-68.

Note: 1. Please use the specified clean lubrication oil: 2. input compressed air within the specified pressure range.
