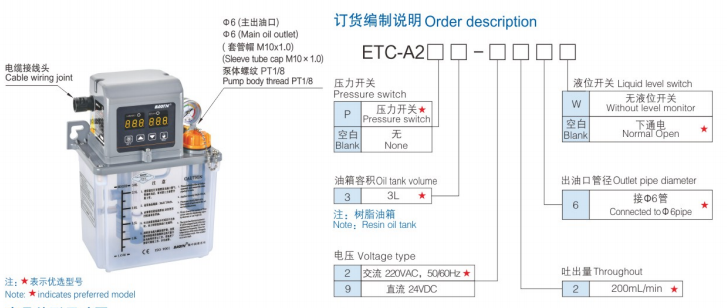

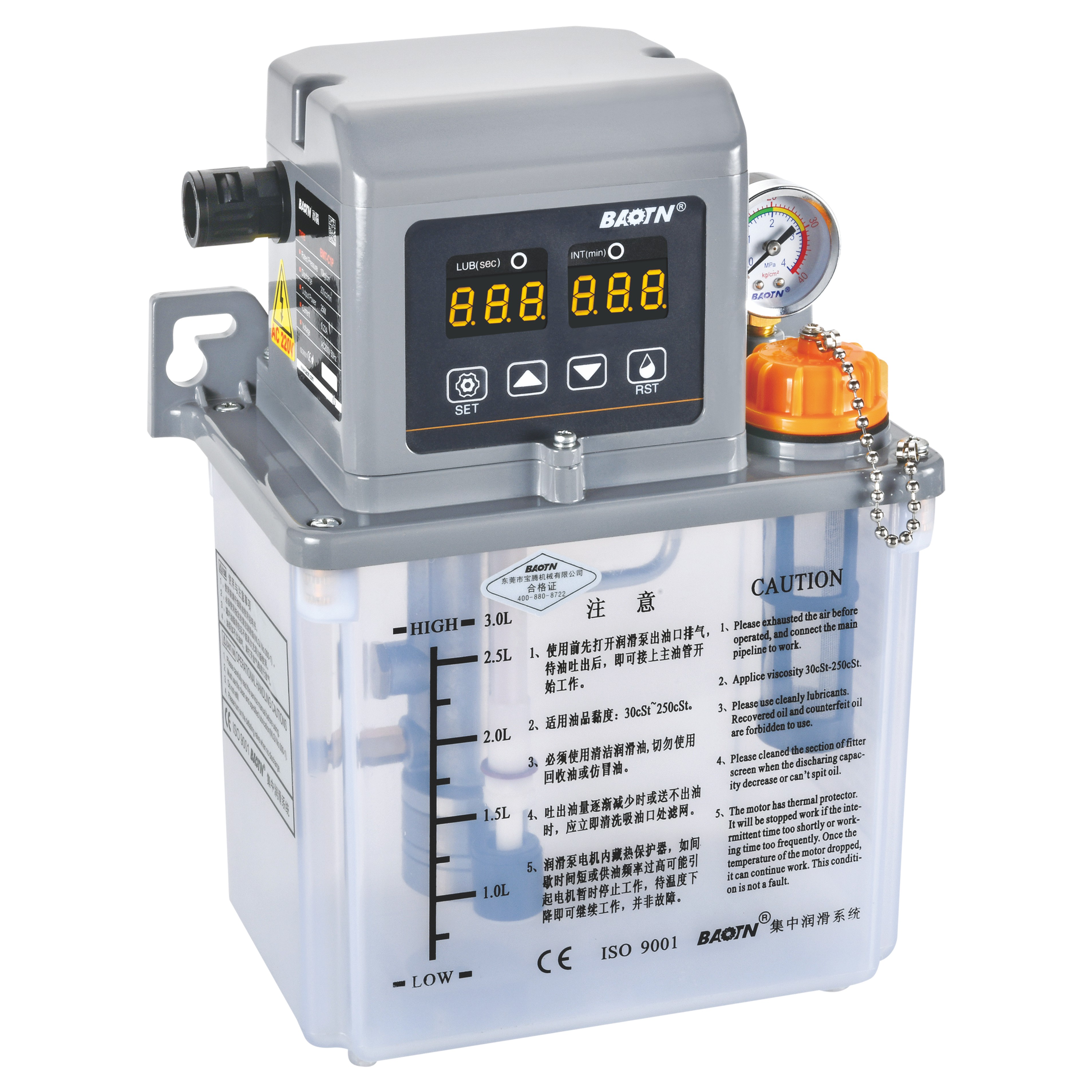

Electric thin oil lubrication pump

7,

Performance and characteristics

1,The system can be set to three operating modes.

a Lubrication: Upon startup, the lubrication time timer is activated first.

b lnterval: After lubrication is complete, the interval time timer is activated (time units can be converted).

c Memory: After a power outage, the system can resume the previously unfinished intermittent timing upon power restoration.

2,Both lubrication time and intermitentiming can be adiusted,(The svstem includes a lock key funcion to lock the set lubrication and intermitent timing.

3,It is eouioped with a liauid level swtch and a pressure switch (ootional. When oilevel or presure is insuficient. the buzzer wil sound an alarm andoutput an abnormal signal.

a Insufficient pressure displays “Erp."

b Insufficient liquid level displays “Ero."

4,System time can be set. “LUB"” lubrication time: 1-999 (seconds) “iNT" intermitent time: 1-999 (minutes) (customizable for specialrequirements).

5,Panel indicator liahts display the lubrication and intermittent status of the lubrication oump.

6,The system can use the “RST" key to force lubrication or eliminate abnormal alarm signals.

7,In volumetric systems, a pressure relief device is required to be used with the EFA oil-air mixer; refer to pages 89-90.

8,Equipped with a relief valve to protect the lubrication pump and piping from damage due to excessive pressure.
