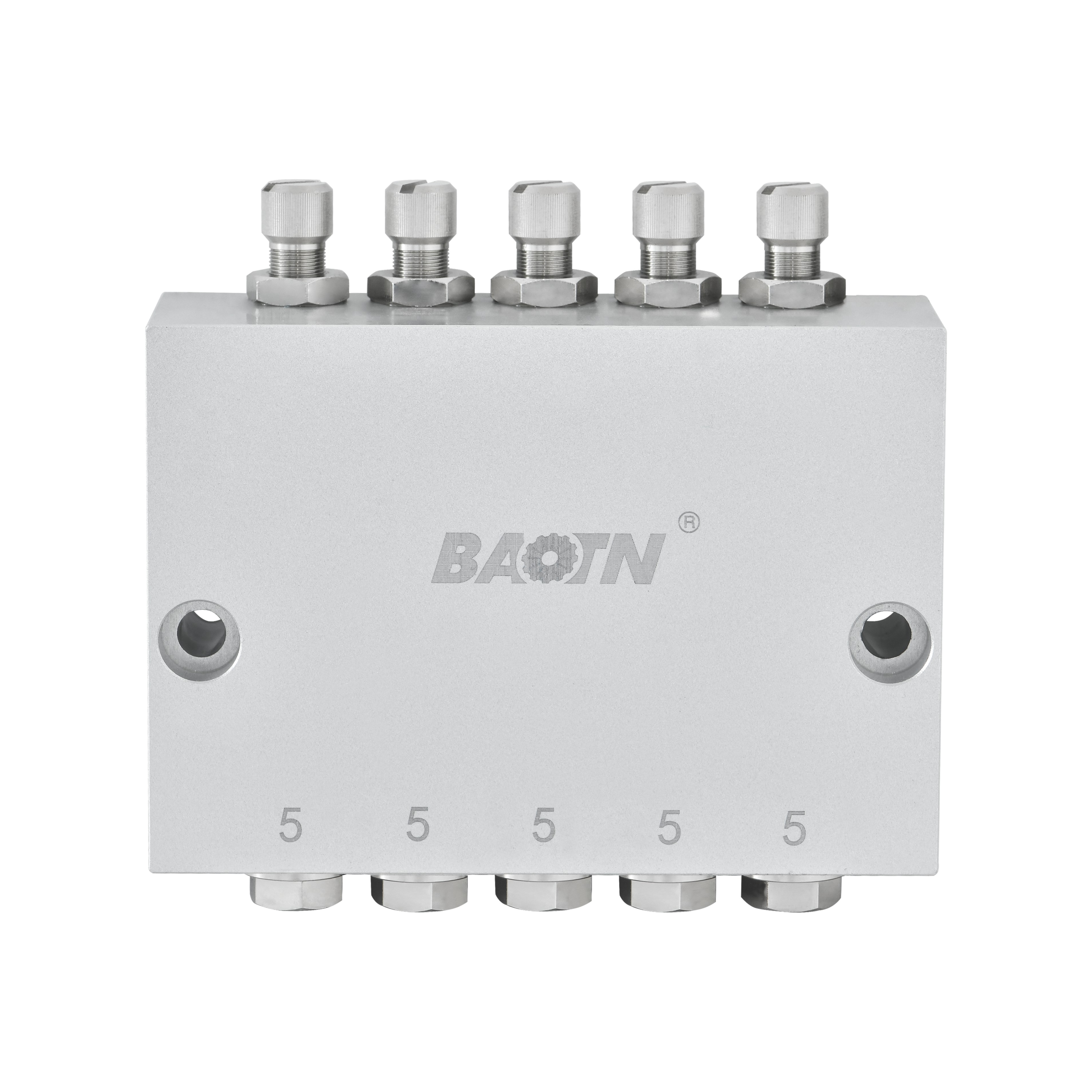

Oil and gas mixer

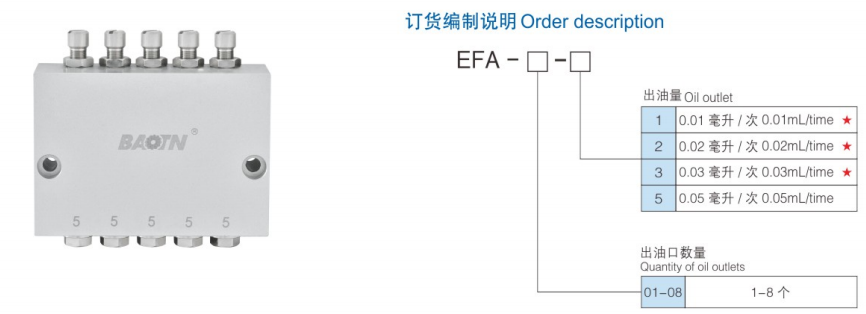

Oil quantity indication method

(Note: When the oil volume of all oil outlets is the same, only one oilvolume is used to indicate)Example 1: EFA-05-2 means EFA type 5-port distributor, the oil volumeof the 1st, 2nd, 3rd, 4th and 5th oil outlets is all 0.02mL/time.Example 2:EFA-05-53235 means EFA type 5-port distributor, the oilvolume of the 1st, 2nd, 3rd,4th and 5th oil outlet is 0.05,0.03, 0.020.03,0.05 mL/time respectively.

Precautions:

1,Control the working times of the oil and gas mixer according to actualneeds;ePlease connect the pipeline correctly to ensure that the pipeline does not leak;

2,After the pipeline is connected, please make the oil-gas mixer workcontinuously for several times until the oil is discharged from the oiloutlet pipeline;

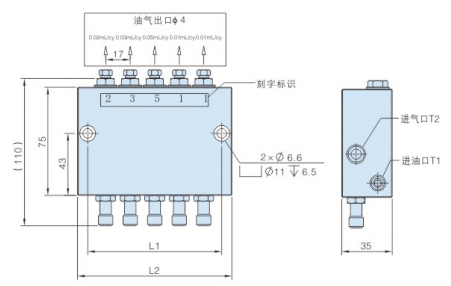

3,The lettering mark "3"indicates that the oil output of the oil outlet is0.03mL/cy,The lettering mark "2" indicates that the oil output of the oiloutlet is 0.02mL/cy.
