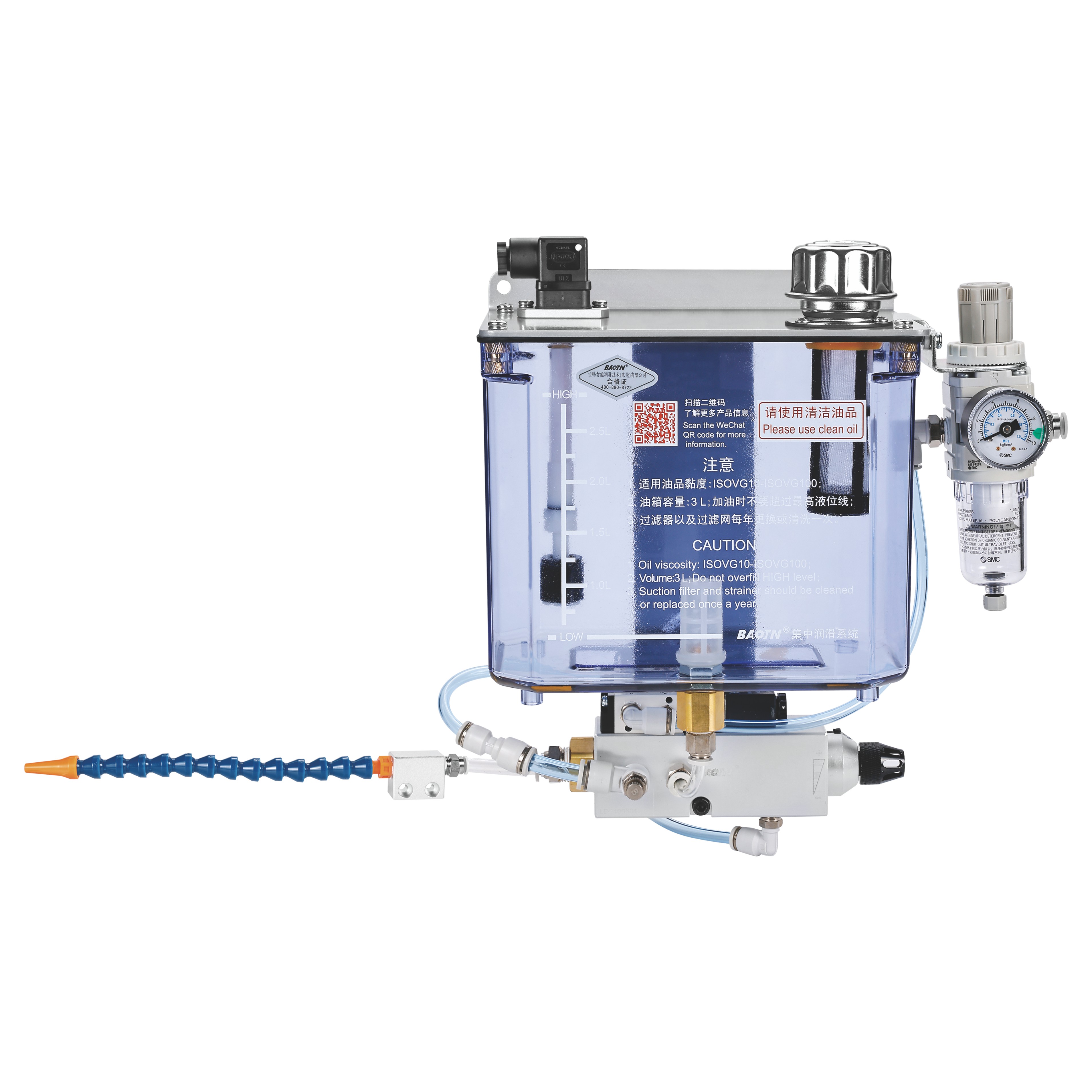

Performance and characteristics
1,The system is equipped with a solenoid valve and a pulse valve forprecise control of the air source(Input pressure: 4-8 bar), and thespray frequency can be directly adjusted through the pulse valve;
2,Oil and gas are output by concentric tubes and mixed at the nozzlefor high speed spraying. The volume of gas supply and oil supply canbe adjusted independently,effectively improving the efficiency ofspray cooling.
3,The system modular design, according to user requirements can befreely combined with the number of spray orificese
4,Equipped with a low liquid level sensor, can realize the system oilmonitoring Innovative structural design of the product can realize theinfinitely adjustable displacement.
5,Adjustable range of 0.003mL/cy-0.03mL/cy, at the same time, there isan indicator lever when the pump is working, which can effectivelymonitor the operating status and ensure the reliable and safeoperation of the system.
6,The consumption of lubricant is very small, which can effectivelyreduce the environmental pollution, with the effect of environmentalprotection and working environment improvement.
7,Applicable medium: vegetable oil.
Applicable Scenarios
The system is a micro-mist cooling system, which can realize highlyefficient spray cooling, and at the same time, it can realize very micro-mist and adjust the main application in the need for lubrication andcooling occasions, which can effectively reduce the tool wear andimprove the quality of surface machining;1,machining center tool lubrication and cooling, drilling, turning toolsand other tool lubrication and cooling;2, band saws, circular saws and other saws saw blade spray cooling3,engine block assembly,precision parts assembly and other non-contact spray lubrication equipment occasions.
