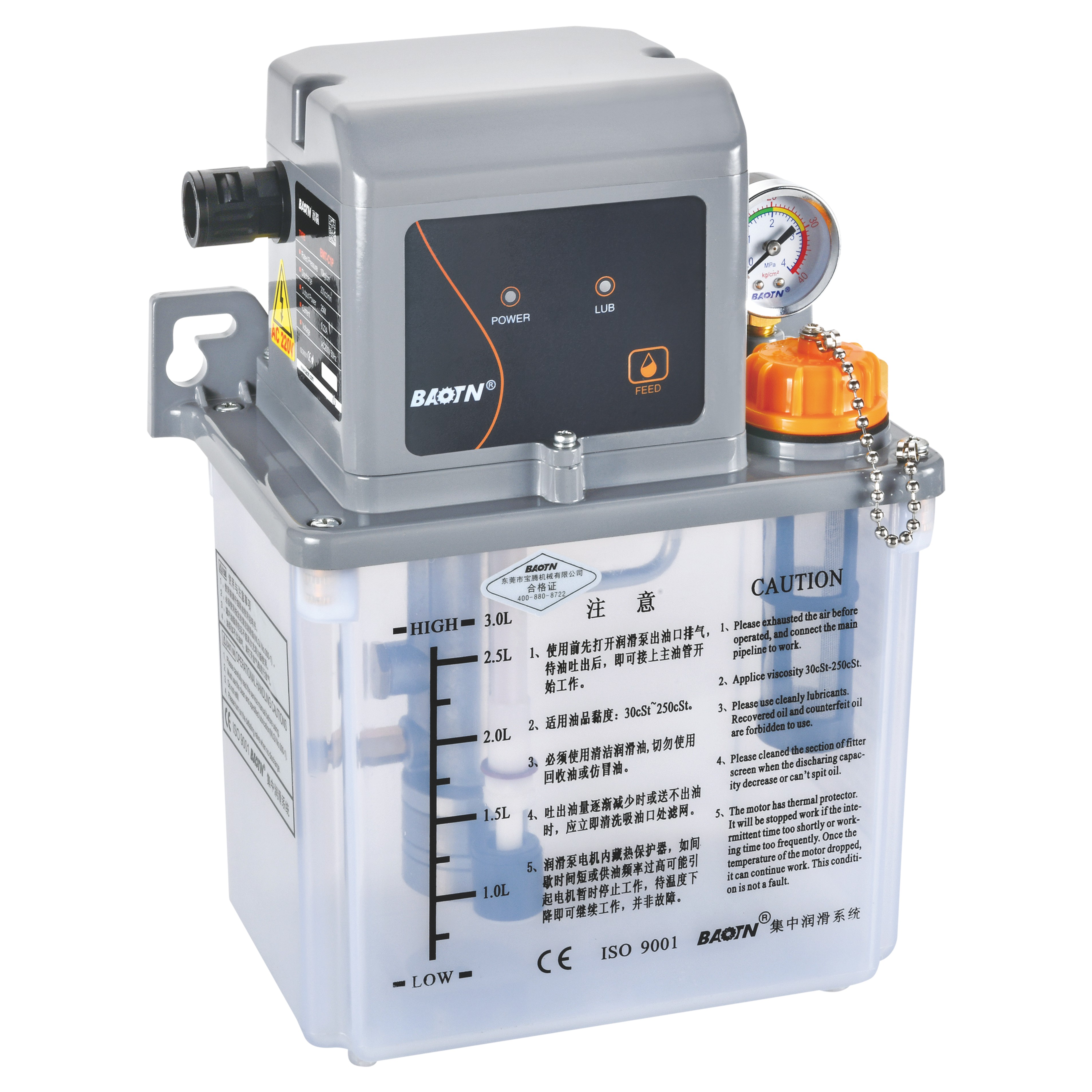

Auto electric lubrication system

Performance and characteristics

1,Equipped with a liquid level switch and a pressure switch (optional). When the ol level or pressure is insufficient, an abnormal signal is output.

2,The panel indicator light displays the lubrication and intermittent status of the lubrication pump.

3,The system is equipped with a “FEED" button for forced lubrication.

4,In a volumetric system, a pressure relief device is required to be used in conjunction with an EFA oil-air mixer.

5,An overflow valve is provided to protect the lubrication pump and piping from damage due to excessive pressure.

6,An internal fuse is provided to prevent overcurrent from damaging the lC board and motor.
