● Stable lubrication of each lubrication point.
● Start-up lubrication, power-off memory function.
●With one-way valve setting, oil doesn’t flow back, fully guarantee lubrication.
● With overheat protection, the motor is durable.
Quantity: | |
---|---|
Performance and Features:
1. The system is configured with 3 action modes:
a. Lubricating: when turning on, execute lubricating timing.
b. Intermittent execute intermittent timing after lubricating is completed(Time unit convertible),
c. Memory: in case of power on after power on, resume incomplete intermittent time
2. Lubricating time and intermittent time can be adjusted (Built-in locking function, lubricating and intermittent time can be locked after setting)
3. Provided with liquid level switch and pressure switch(optional). When oil volume or pressure is insufficient, the beeper alarms and send the abnormal signal out.
a. When pressure is insufficient, Erp is displayed
b. When liquid level is insufficient, Ero is displayed
4. The system time can be configured, LUB lubricating time: 1-999(seconds)
INT intermittent time: 1-999(minutes)(Tailored if specially required)
5. The panel indicator displays lubricating and intermittent status.
6. The system uses RST key to force lubricating or eliminate abnormal reporting signal.
7. Single maximum lubricating time s 2 min, and intermittent time is 5 times of the lubricating time.
8. The motor is provided with self-protection function to avoid high motor temperature and overload.
9. Decompression device is provided with resistance-type system, used with proportional joint distributor.
10. Overflow /s provided to protect oil injector and pipeline from being damaged by high pressure.
Performance and Features:
1. The system is configured with 3 action modes:
a. Lubricating: when turning on, execute lubricating timing.
b. Intermittent execute intermittent timing after lubricating is completed(Time unit convertible),
c. Memory: in case of power on after power on, resume incomplete intermittent time
2. Lubricating time and intermittent time can be adjusted (Built-in locking function, lubricating and intermittent time can be locked after setting)
3. Provided with liquid level switch and pressure switch(optional). When oil volume or pressure is insufficient, the beeper alarms and send the abnormal signal out.
a. When pressure is insufficient, Erp is displayed
b. When liquid level is insufficient, Ero is displayed
4. The system time can be configured, LUB lubricating time: 1-999(seconds)
INT intermittent time: 1-999(minutes)(Tailored if specially required)
5. The panel indicator displays lubricating and intermittent status.
6. The system uses RST key to force lubricating or eliminate abnormal reporting signal.
7. Single maximum lubricating time s 2 min, and intermittent time is 5 times of the lubricating time.
8. The motor is provided with self-protection function to avoid high motor temperature and overload.
9. Decompression device is provided with resistance-type system, used with proportional joint distributor.
10. Overflow /s provided to protect oil injector and pipeline from being damaged by high pressure.
Company Profile
Baotn Intelligent Lubrication Technology (Dongguan) Co, Ltd, has developed into one of the leading machinery manufacturer specializing in centralized lubrication systems. Founded in August 2006. The company adhere to the strategic approach that integrity is fundamental and quality wins the future’ It produces a variety of quality and stable lubricating device products, including the volumetric or resistant type oil lubrication system, volumetric or progressive type grease lubrication pump, spray type oil and air lubrication, circulative water pump, lubrication system accessories, which are widely used in all kinds of metal cutting, CNC machine, machining centers, stamping, printing, textile, elevator, mining. food, foundry, plastics and other industries’ lubrication system
BAOTN team tour
Company Profile
Baotn Intelligent Lubrication Technology (Dongguan) Co, Ltd, has developed into one of the leading machinery manufacturer specializing in centralized lubrication systems. Founded in August 2006. The company adhere to the strategic approach that integrity is fundamental and quality wins the future’ It produces a variety of quality and stable lubricating device products, including the volumetric or resistant type oil lubrication system, volumetric or progressive type grease lubrication pump, spray type oil and air lubrication, circulative water pump, lubrication system accessories, which are widely used in all kinds of metal cutting, CNC machine, machining centers, stamping, printing, textile, elevator, mining. food, foundry, plastics and other industries’ lubrication system
BAOTN team tour
Our company is a professional manufacturer and distributor of centralized lubrication system devices for 15 years. And our products are widely used in lubrication system devices in the following industries
1. Metal processing cutting equipment
2, 3C equipment
3, wood equipment
4, sheet metal equipment
5, automation
6, molding equipment
7, fastener equipment
8, textile equipment
9, paper printing food packaging equipment
10. Elevator
11. Construction machinery
12, the car
BDG electric grease lubrication pump
BAG Pneumatic grease lubrication pump
BDGS electric grease lubrication pump

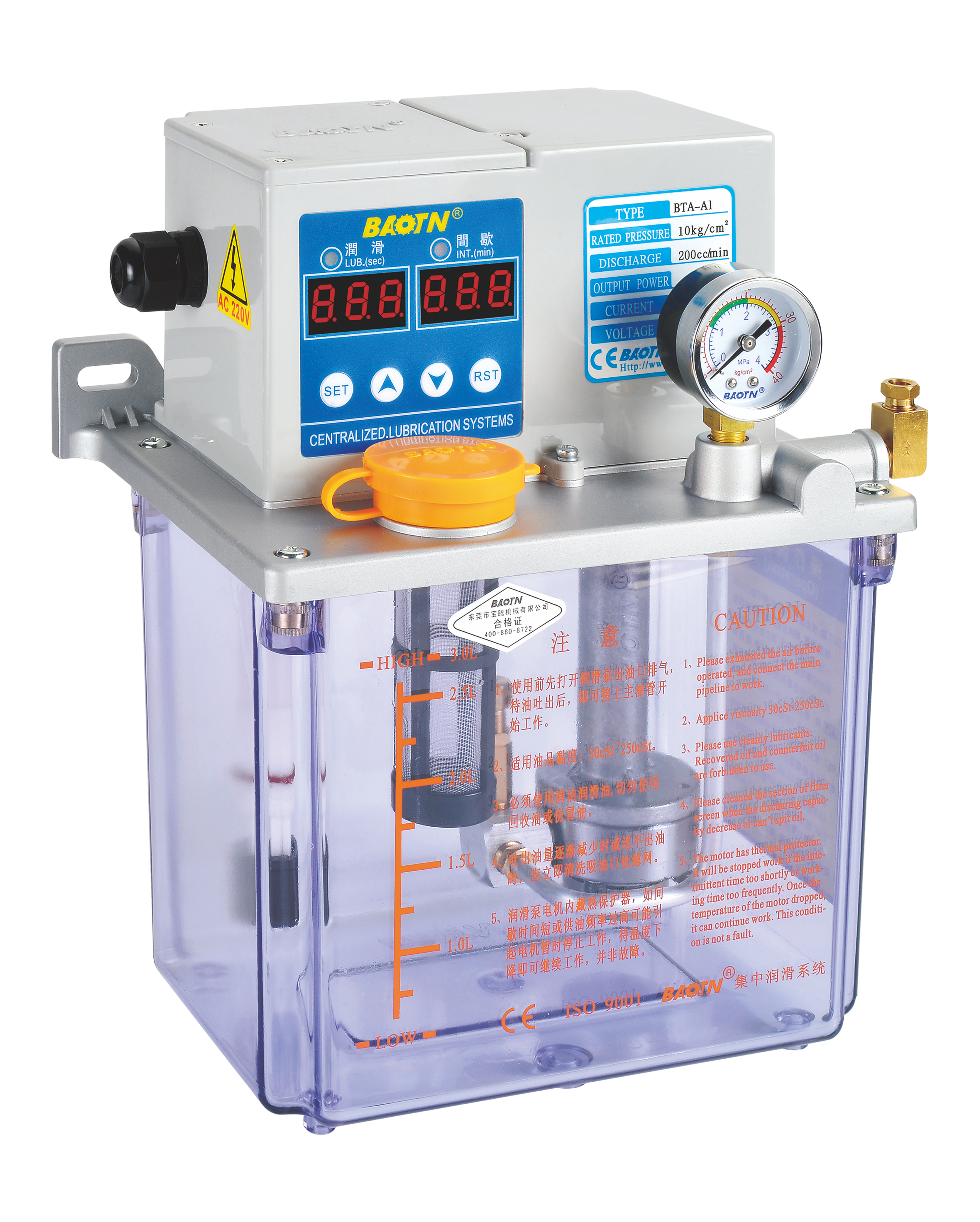

BT-A2P4 Thin oil lubrication pump with digital display
