Oil volume indication: (notes: when oil volume values of all oiloutlets are identical, represented with one oil volume).
Example 1:BFG/BFH-05-10 means that the oil volume of the 1st,2nd, 3rd, 4th and 5th oil outlet of the BFG/BFH type 5-portdistributor is all 0.1mL/ime.
Example 2:BFG/BFH-05-1610050303 means that the oil volumeof the 1st, 2nd, 3rd, 4th and 5th oil outlet of the BFG/BFH type5-port distributor is 0.16, 0.1,0.05, 0.03, 0.03 mL/time respectively.
Example 3:BFG/BFH-05-10-S means that the oil volume of the1st, 2nd, 3rd, 4th, and 5th oil outlet of the BFG/BFH type 5-portdistributor is all 0.1mL/time, and one end of the oil inlet mainpipe is matched with a pipe and an official cap;
One end ofthe oil outlet pipe is equipped with a plug.Applicable ambient temperature:-10℃ to 509℃

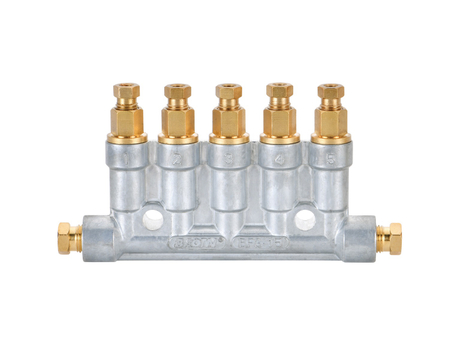

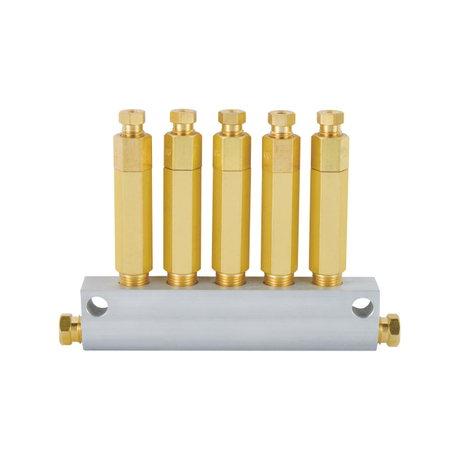

Rationale of the BFG/BFH distributor
The lubricating oil delivered from the oil pump starts to push upward through the umbrella valve in the BFG/BFH distributor.
When the umbrela valve closes the central hole of the core rod,.the piston is forced to rise against the spring force.
Drain the ubricating oipreviously stored in the upper chamber.When the piston moves to the top of the upper chamber, the oil discharge is completed at the same time.
When the ol pump stops supplying oil,its pressure relief valve opens automaticaly, so that the pressure oil inthe main oilpipe reset to the oilthrough the pressure relief valve.
At this time,the system pressure decrease, and the piston in the distributor begins to recover under thection of the soring.
When the umbrela vave reposiion to close the distibutor and enters the oi, the piston presses the ubricaing oil storedin the lower chamber to the upper chamber through the small hole of the core rod. and the next fuel supply is also ready.
