GTB-C1 progressive grease lubrication pump (PLC grease pump) manufacture

Short Description:



● Liquid level and pressure signal output.

● The pump forces oil injection to each lubricating point.

● Various voltages can be customized.

● Pressure rises fast and stable, depressurization is stable.

● Applicable temperature 0~50 °C




  • Warranty Period: 1 Years
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
Availability:
Quantity:
Inquire Add to Basket

GTB-C1 progressive grease lubrication pump (PLC grease pump, gear pump)




Performance and characteristics:
1. Provided with liquid level switch and pressure switch (optional). When oil volume or pressure is insufficient, the beeper makes sound, send alarm and offers abnormal signal output.
2. The panel indicator light indicates power and lubrication status of the oil injection mold. The system is provided with FEED key, and compulsory lubrication is applied.
3.  No pressure relief valve device in resistance system, used with GSA/GPA/GPB distributor
4. Internal fuse is provided to prevent IC board and motor damaged by short circuit.
Specifications, models and technical parameters
型号Models 电压votage(V) 功率Power(W) 润滑时间lubrication time(S) 间歇时间Intermittent time(M) 吐出口径throughout caliber 额定吐出压Rated throughput pressure(MPa) 最大吐出压Maxinum throughput pressure(MPa) 吐出量Throughout
(cc/min)		 脱压装置
de-pressurizing
device		 压力开关Pressure Switch 油脂传感器grease Sensor 蜂鸣器Beeper 油箱容量Oil tank volume(L)
GTB-C1 AC220V
DC24V		 60W
35W		 须和PLC系统连接Shall be connected to the PLC system Ø6 2 6 200 无 no 有 Yes 可选配Optional 无 no 3 or 4






Our company is a professional manufacturer and distributor of centralized lubrication system devices for 20 years. And our products are widely used in lubrication system devices in the following industries
1. Metal processing cutting equipment
2, 3C equipment
3, wood equipment
4, sheet metal equipment
5, automation
6, molding equipment
7, fastener equipment
8, textile equipment
9, paper printing food packaging equipment
10. Elevator
11. Construction machinery
12, the car

1 (1)

BDG electric grease lubrication pump

1 (2)

BAG Pneumatic grease lubrication pump

1 (3)

BDGS electric grease lubrication pump

1 (4)

BT-A2P4 Thin oil lubrication pump with digital display

Previous:
Next:
Contact us
Verify Code

Related Products

Baotn Automatic CNC Machine Lubrication Pump Progressive-Type Grease Lubrication Pump GEP-Type
Baotn Automatic CNC Machine Lubrication Pump Progressive-Type Grease Lubrication Pump GEP-Type
24V 220V Electric Oil Pump for Automatic Grease Lubrication Systems with Low Pressure Factory Direct Free Design
24V 220V Electric Oil Pump for Automatic Grease Lubrication Systems with Low Pressure Factory Direct Free Design
Baotn Oil Lubrication System Centralized Lubrication PLC Grease Pump Progressive Type Lubrication Pump
Baotn Centralized Grease Oil Lubrication System pump PLC Grease Pump Progressive Type
Digital Grease Lubrication Pump
Baotn Grease Lubrication System Centralized Lubrication Digital Grease Lubrication Pump Progressive Type Grease Lubication Pump
Automatic High-quality Grease Lubrication Pump Systems Is A New Product
Automatic High-quality Grease Lubrication Pump Systems Is A New Product
industrial lubrication pump
BAOTN High Pressure Automatic Grease Lubrication System Grease Pump Installation for heavy machinery and equipment
GTB-A1 digital grease lubrication pump Electric Grease Lubrication Automatic Lathe Butter Grease Pump
GTB-A1 digital grease lubrication pump Electric Grease Lubrication Automatic Lathe Butter Grease Pump

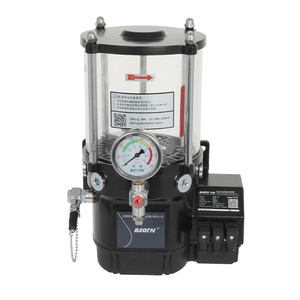

High pressure lubrication grease pump with beeper
