Automatic Grease Lubrication Pump Systems Is A New Product

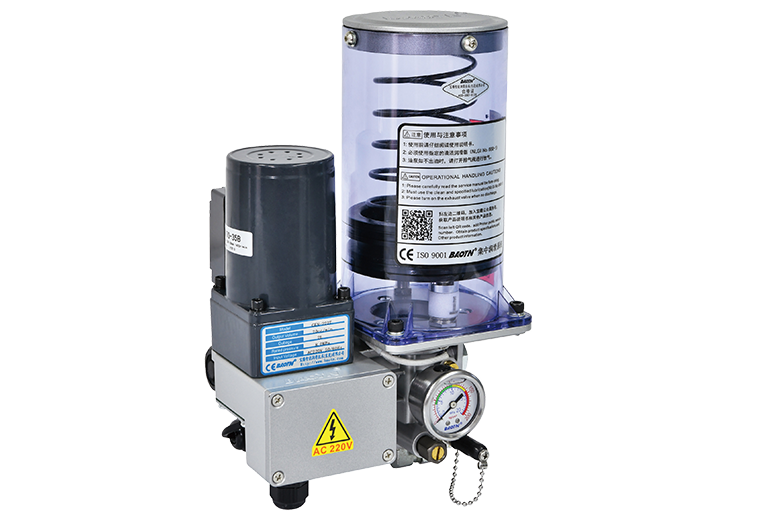

GEN-1 is an electric grease lubrication pump, also called a progressive grease lubrication pump and a plunger pump. The GEN type can be connected to a PLC control system to control the intermittent and lubrication time of the oil pump. The machine adopts an integrated structure with strong versatility, compact structure and easy maintenance. Use a refueling gun to add grease from the oil inlet to prevent impurities and air from mixing into the pump and improve the effectiveness of the lubrication system. The oil tanks are all spring-pressurized. The pump has good oil suction effect, reliable operation, and a wide range of applicable oil products.
Availability:
Quantity:
  • GEN-1

Product Advantage

1. The operation and interval time are controlled by PLC or independent controller.

2. Equipped with a pressure regulating valve device, the working pressure of the lubrication pump can be independently set to ensure its working safety.

3. Equipped with an exhaust valve device to remove air from the lubrication pump cavity and ensure smooth oil discharge from the lubrication pump.

4. Equipped with low oil level transmitter, normally open contact or normally closed contact can be selected according to the system.

5. Please replenish grease from the GEN oil inlet to prevent air and impurities from entering the grease tank. .Thus improving the effectiveness of the lubrication system.

6. The lubrication system is equipped with a pressure switch, which can effectively monitor the lubrication system pipeline interruption, leakage and other pressure shortage phenomena.


Technical Parameters

models GEN-122 GEN-129
maximum ejetcion pressure (MPa) 8 8
Throughout (cc/min) 20 20
oil outlet diameter Φ6 Φ6
oil tank volume (L) 2 2
motor power (W) 35 25
oil viscosity (nlgi) 000#-0# 000#-0#


Product Uses

GEN electric oil injection machine is suitable for centralized lubrication systems of

machine tools, plastics, textiles, light industry, printing, conveyors and other mechanical equipment.
