Overview
GPD series progressive distributor is an oil distributor with advanced design andreasonable structure. The GPD distributor series can be used for high pressureand wide temperature changes.it can form a single-line lubrication system withmanual, electric and pneumatic pumps, etc. it is suitable for various medium-sizedmachine tools and plastic machinery equipment,or sub-distribution of largesingle-line lubrication systems. devices,and ideal products for similarapplications.

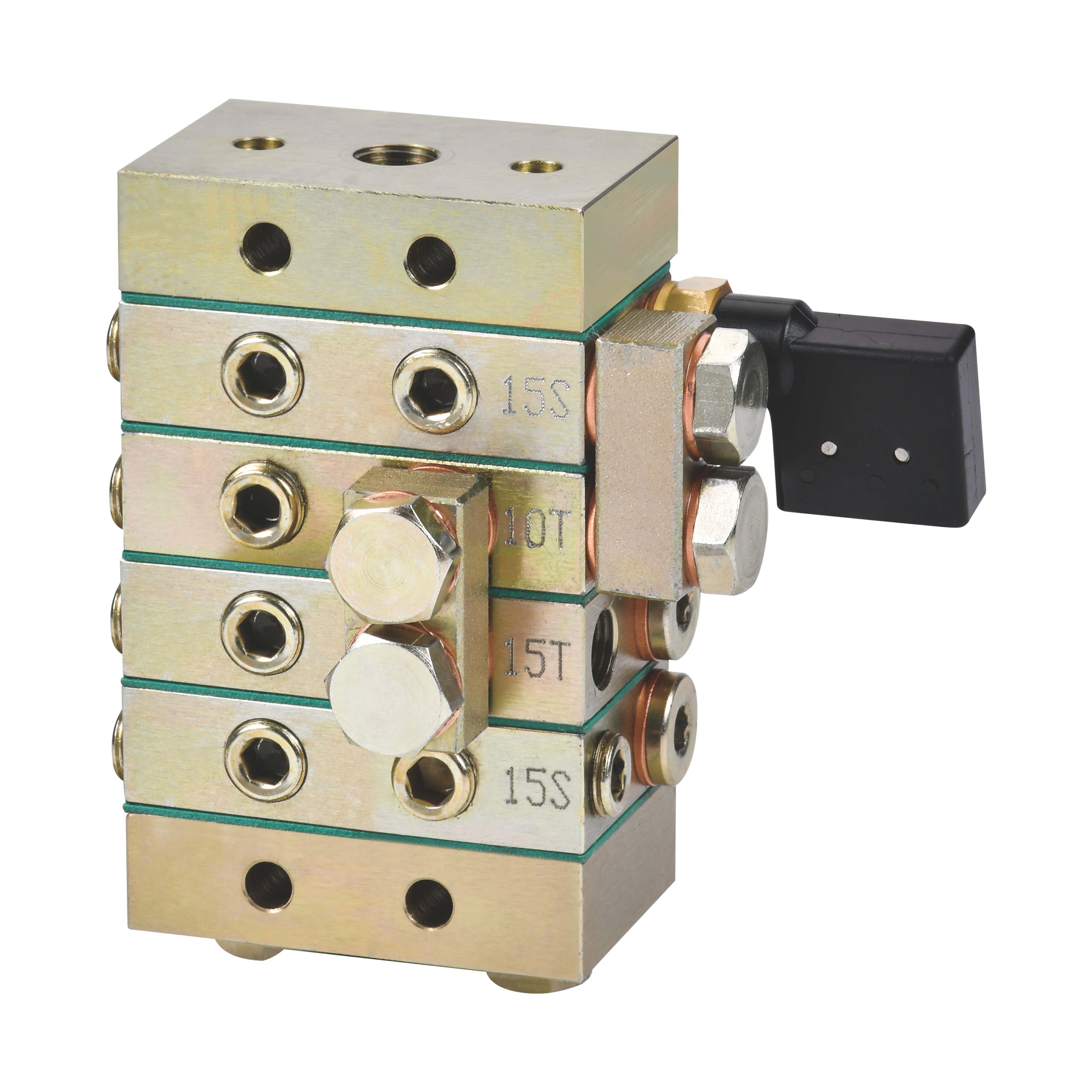

A typical set of GPD distributors consists of a "first piece", a "tail piece" and 3 to 8working pieces. Typically a set of distributors provides lubrication for 3 to 16lubrication points. The work piece of the GPD distributor is available in varioussizes of displacement (see technical specifications for details). Double oil outletworking piece (after the specification value of the working piece, use T to indicatedouble oil outlet), there are two oil outlets, respectively at both ends of the workingpiece; single oil outlet working piece (in the working piece specification After thevalue, use S for single oil outlet) There is an oil outlet, which can be at either end ofthe working piece, and the oil outlet at the other end needs to be blocked. Notethat for the double oil outlet working piece, any oil outlet cannot be blocked.otherwise the distributor will be damaged and its normal operation will be affected.
Technical parameter
Maximum working pressure:16MPa
Minimum starting pressure: 1.4MPa
Standard displacement per port: 0.08mL/cy~0.32mL/cyApplicable lubricant range (at standard temperature): lubrication oil > N68grease NLGl000~2
Working environment temperature:-20℃~+60℃(low temperature greaseshould be used at low temperature)
Piston pair with mechanical cycle indicator Maximum cycle rate: 60cy/min
Maximum circulation rate of Piston pair: 200cy/min
Number of working pieces of each group of distributors: 3~10 pieces
The number of lubrication points available for each group of distributors: 2~20points
The optimal pipe diameter and length of the distributor output: Ф4mm long0.5~2.5m; Ф6mm long 1.2~3.5m
Body material and coating: galvanized carbon steel surface
