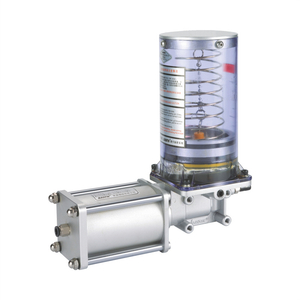

GED Pneumatic grease lubrication pump

Performance and characteristics

The pressure output shall be adjustable output structure and in conformity with requirements of machines, and relative pressure adjustment shall be made.

When the machine is just started to use, the oil volume required shall be available to start smoothly and reduce unnecessary friction.

When timing controller is configured to achieve variable adjustment for oil supply time and intermittent time.

Oil pressure detector is provided to detect following losses:

(1) pipeline cracking: insufficient pressure inside the pipeline;

(2) insufficient air pressure,detecting insufficient air pressure;

(3) insufficient oil pressure: outdated oil pressure and non-conforming output power result in insufficient power

(4) no oil in the oil bucket: insufficient oil materials.

Beeper is provided to receive timely response
