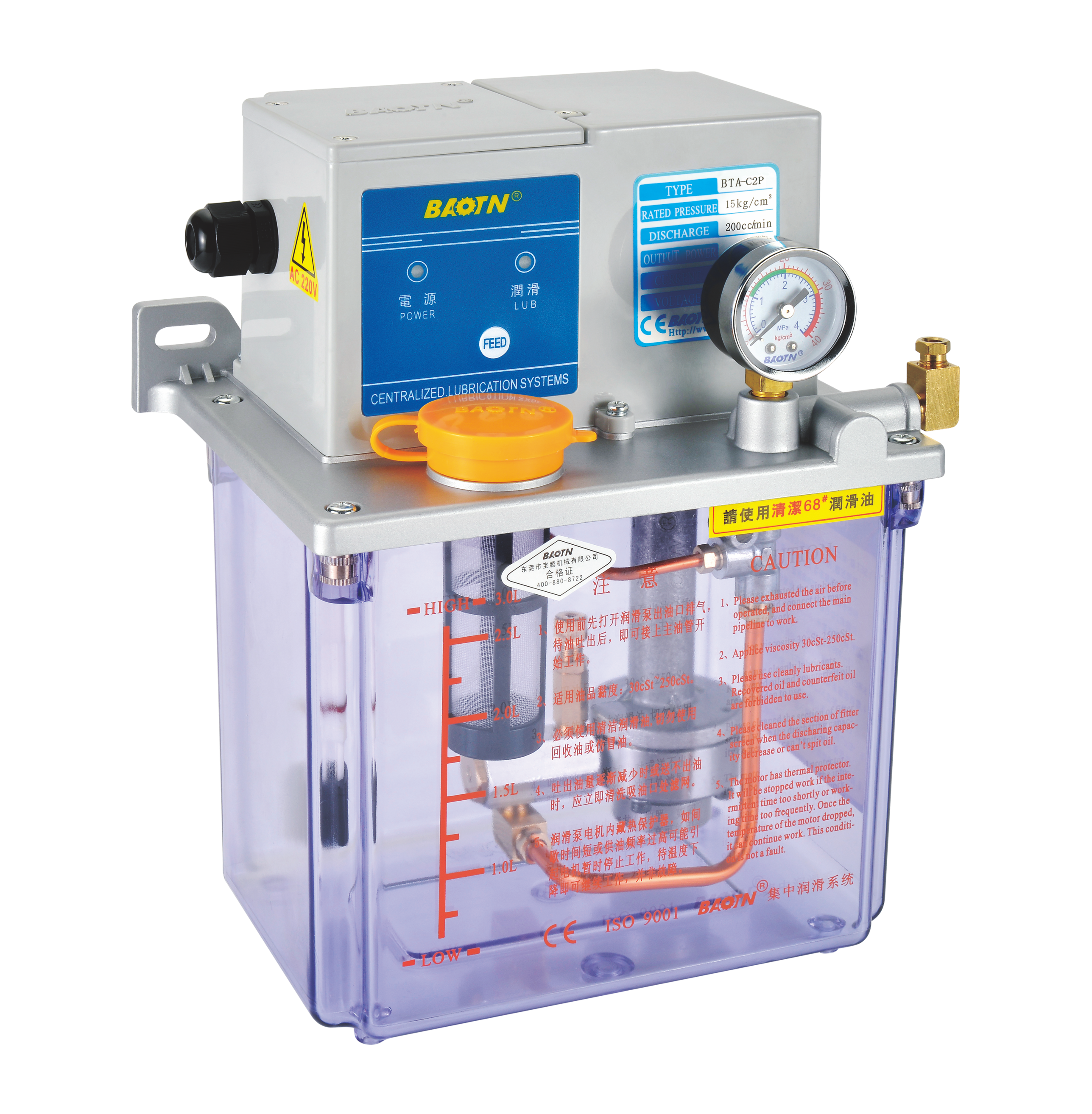

BTA-C2P2 PLC control gear oil lubrication pump

Short Description:



●Quantify lubrication of each lubrication point.

●Provided with liquid level switch .

●Provided with pressure switch (optional).

●With overheat protection, the motor is durable

●The pumps has two layers of filters to make the oil passages smoother.




  • Warranty Period: 2 Years
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
Availability:
Quantity:
Inquire Add to Basket


BTA-C

1.Liquid level switch and pressure switch (optional) are provided. When oil volume or pressure is insufficient, abnormal signal is output.

2.The panel indicator light indicates power and lubrication status of the oil injection mold.

3.The system is provided with FEED key, and compulsory lubrication is applied.

4.Time setting: single maximum lubrication duration≤2min, and intermittent time shall be 5 times of the lubricating time.

5.The motor is provided with self-protection to prevent high temperature and overload of motor.

6.The volumetric system is provided with decompression device, used with BFA /BFB/BFD/BFE/BFG/BFH distributor,Refer to page 03~10.

7.Overflow valve is provided to prevent damage by oil injector and pipeline.

8.Internal fuse is provided to prevent IC board and motor damaged by short circuit.

item Volumetric
Warranty 1 years
Brand Name BAOTN
Model Number BTA
Place of Origin China
Application Automotive Industry, cnc lather
Power Source Electric
Pressure Low Pressure
Structure Gear Pump
Outlet Size 6mm
Voltage 24V  220V
Power 20W
Rated throughtout Pressure 1.5/1.7Mpa
Maximum throught pressure 2.5Mpa
Throughout 150/200cc/min
Oil tank volume 2/3/4/6/8L






Our company is a professional manufacturer and distributor of centralized lubrication system devices for 15 years. And our products are widely used in lubrication system devices in the following industries
1. Metal processing cutting equipment
2, 3C equipment
3, wood equipment
4, sheet metal equipment
5, automation
6, molding equipment
7, fastener equipment
8, textile equipment
9, paper printing food packaging equipment
10. Elevator
11. Construction machinery
12, the car

1 (1)

BDG electric grease lubrication pump

1 (2)

BAG Pneumatic grease lubrication pump

1 (3)

BDGS electric grease lubrication pump

1 (4)

BT-A2P4 Thin oil lubrication pump with digital display

Our service

We can help you to select the right pump
Perfect after-sales service and large stock
OEM order is accepted
Strict testing to assure high quality every product will go through strict test

Our advantage:

2 years warranty for our products
13 years’ experience of marketing and manufacturing machine tools lubricating system
Strict testing to assure high quality every products will go through strict test
Excellent after-sales service can be offered
