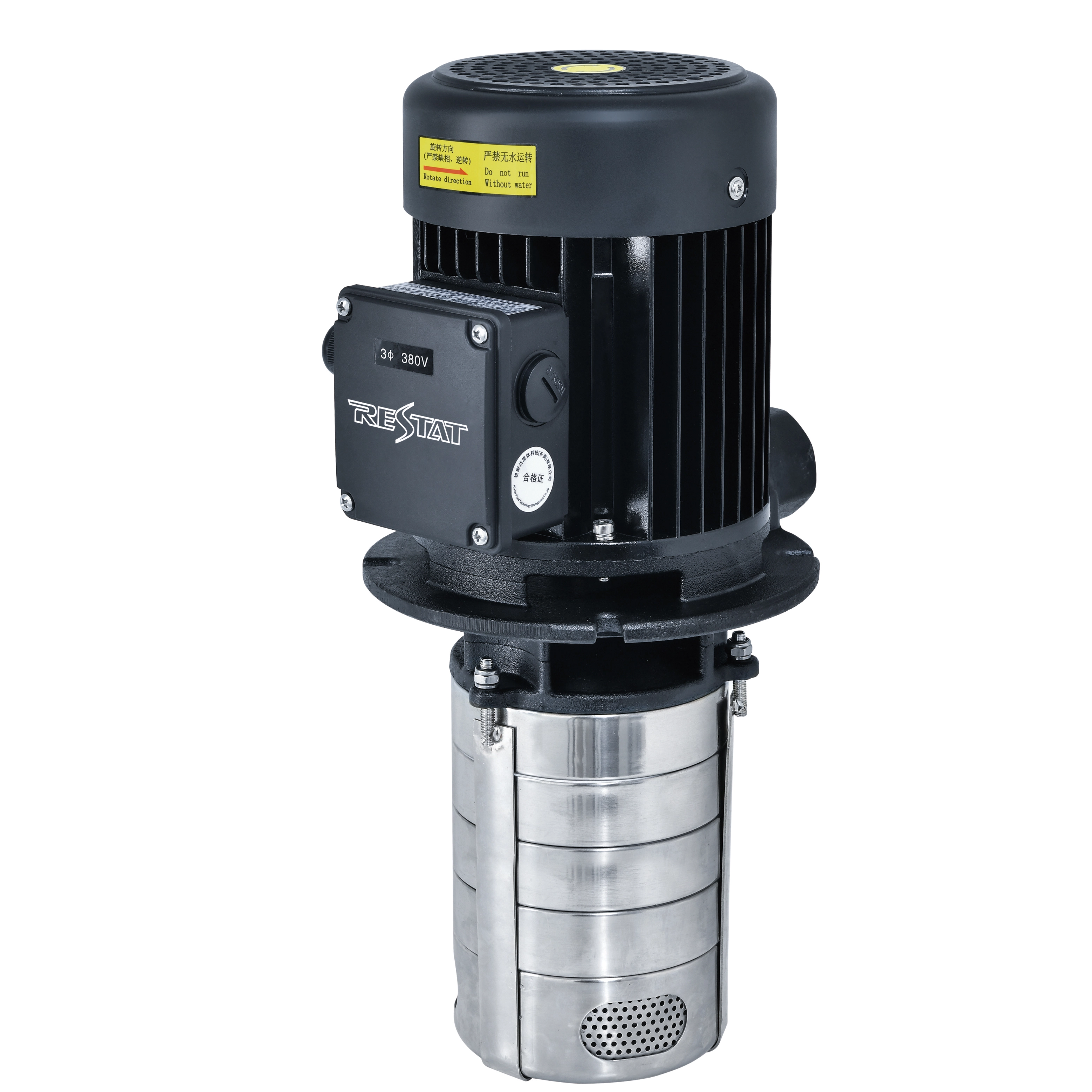

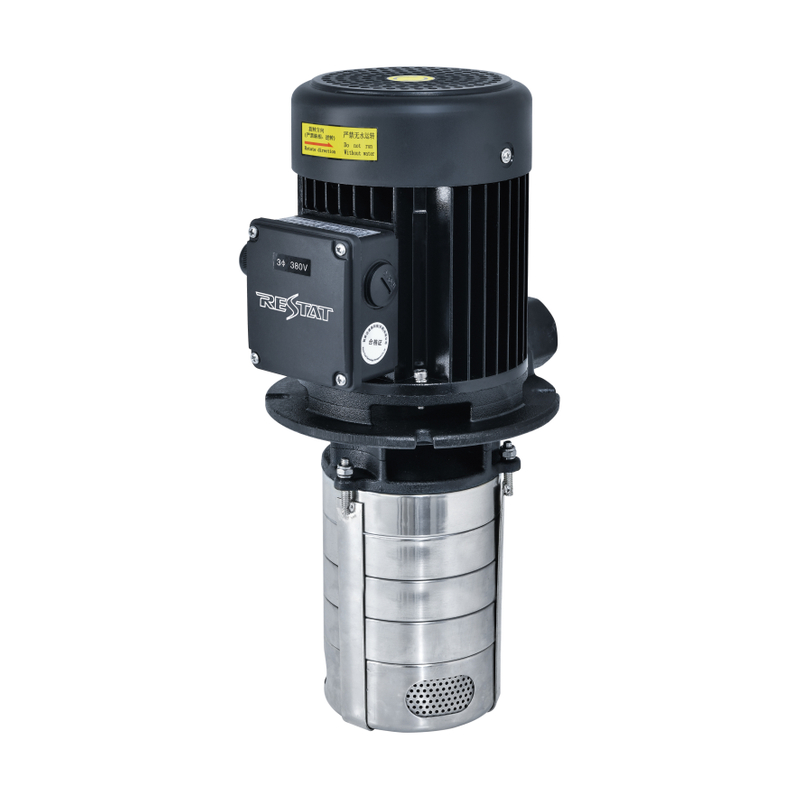

RAVB Immersion type high pressure coolant pump
RAVB Vertical multistage centrifugal pump
RAVB vertical multi-stage centrifugal pump series are small multi-stage immersed centrifugal pumps (with mechanical seal). The pump suction port is in the axial direction and the discharge port is in the radial direction. The pump and the motor are coaxially designed, and the impeller is installed on the extended shaft of the motor. Above, the main moving parts are made by stainless steel .
RAVB series products are vertical multi-stage centrifugal pump.It is mainly used for pressurized pumping of cutting fluid in machine tools,and other applications in cleaning and filtering systems. The applicable liquid includes water solubility, low viscosity and neutral cooling lubricants.
1. Product Features
Beautiful appearance, quiet operation, strong power, high efficiency energy saving
2. Scope of application
Machining center, industrial cleaning, electric spark, CNC lathe, filter system, grinder, cooling system
3. Conveying medium
Suitable for thin, clean, non-corrosive, non-explosive, liquid without solid particles or fibers (liquid temperature range: 0℃-90℃)
4. Conditions of Use
Maximum ambient temperature: +50℃, the working pressure depends on the temperature of the
conveying medium, 1Mpa(10bar): 0℃ ~ +40℃, 0.6Mpa(6bar): +41℃ ~ +90℃
5. Motor parameters
RAVB series multistage centrifugal pumps are equipped with a fully enclosed air-cooled squirrel cage motor. (Single motor is equipped with thermal protector)
Rated speed: 2850rpm/min,
protection class:IP54,
insulation class: F,
energy efficiency class: IE3
Material
order description:
Performance curve
Specifications and technical parameters:
| 型号Model | 额定功率Rated Power(W) | 相数Phase(①) | 频率Frequency(Hz) | 额定电压Rated Voltage(V) | 额定电流Rated Current(A) | 额定流量Rated pumpcatacity(m(h) | 额定扬程 Rated Head(m) | 最大扬程MaxLift(m) | 出水口径Outlet diameter | A(mm) | B(mm) | C(mm) |
| RAVB-2 | 370 | 3 | 50 | △220/Y380 | 1.0/0.6 | 2 | 12 | 18 | G3/4 | 326 | 124.5 | 201.5 |
| RAVB-2 | 370 | 3 | 50 | △220/Y380 | 1.3/0.8 | 2 | 18 | 26 | 344 | 142.5 | 201.5 |
| RAVB-2 | 370 | 3 | 50 | △220/Y380 | 1.7/1.0 | 2 | 24 | 35 | 362 | 160.5 | 201.5 |
| RAVB-2 | 550 | 3 | 50 | △220/Y380 | 2.0/1.2 | 2 | 29 | 45 | 380 | 178.5 | 201.5 |
| RAVB-2 | 550 | 3 | 50 | △220/Y380 | 2.4/1.4 | 2 | 35 | 53 | 398 | 196.5 | 201.5 |
| RAVB-4 | 370 | 3 | 50 | △220/Y380 | 1.7/1.0 | 4 | 11 | 17 | G1 | 344 | 142.5 | 201.5 |
| RAVB-4 | 550 | 3 | 50 | △220/Y380 | 2.1/1.4 | 4 | 16 | 26 | 371 | 169.5 | 201.5 |
| RAVB-4 | 750 | 3 | 50 | △220/Y380 | 2.7/1.6 | 4 | 24 | 36 | 428 | 196.5 | 231.5 |
| RAVB-4 | 1100 | 3 | 50 | △220/Y380 | 5.4/3.2 | 4 | 32 | 46 | 455 | 223.5 | 231.5 |
| RAVB-4 | 1100 | 3 | 50 | △220/Y380 | 5.3/3.1 | 4 | 37 | 53 | 482 | 250.5 | 231.5 |
