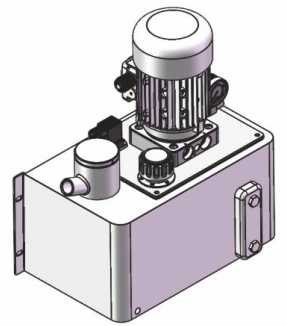

BTH lubrication pump high volume

、

Perfommance and Features

1,Built-in depressurization valve structure can realize automaticdepressurization; regulator prevents system overpressure and ensuresconstant system output pressure; air venting valve can quickly remove airmixed in the lubricant, which is conducive to the rapid start-up of the pumpafter the start-up pressure.

2,This lubrication pump uses the motor working system for S1, with coolingfan, according to the actual working conditions of continuous lubrication orintermittent lubrication equipment, without overheating protection.

3,The oil suction stroke can be up to 500 mm, and the user can customize theheight of the oil tank according to the actual demand.

4,All control valves in this lubrication pump are of cartridge structure with highintegration and easy adjustment and installation.
